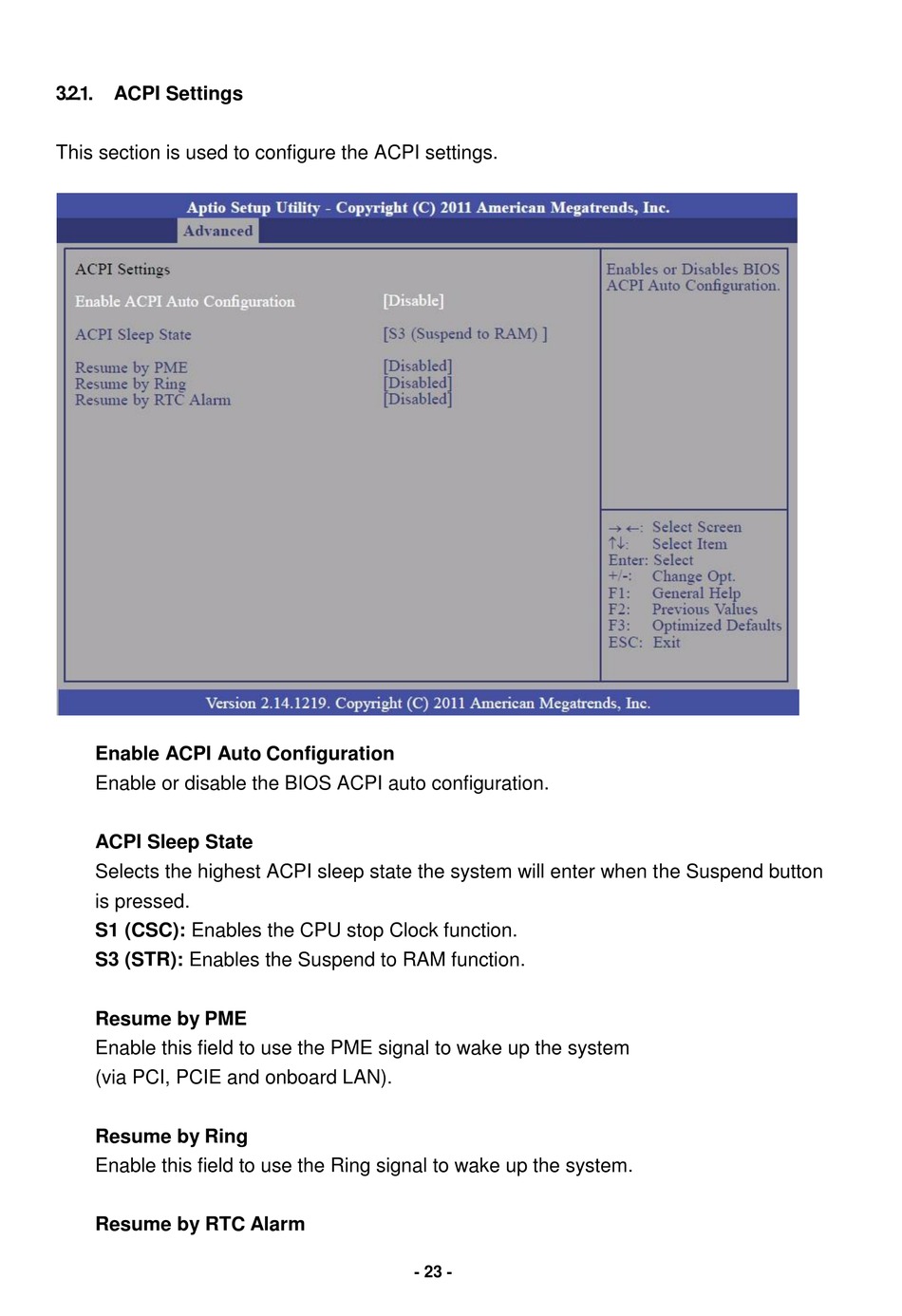

3.2.1. ACPI Settings
This section is used to configure the ACPI settings.
Enable ACPI Auto Configuration
Enable or disable the BIOS ACPI auto configuration.
ACPI Sleep State
Selects the highest ACPI sleep state the system will enter when the Suspend button
is pressed.
S1 (CSC): Enables the CPU stop Clock function.
S3 (STR): Enables the Suspend to RAM function.
Resume by PME
Enable this field to use the PME signal to wake up the system
(via PCI, PCIE and onboard LAN).
Resume by Ring
Enable this field to use the Ring signal to wake up the system.
Resume by RTC Alarm
- 23 -
