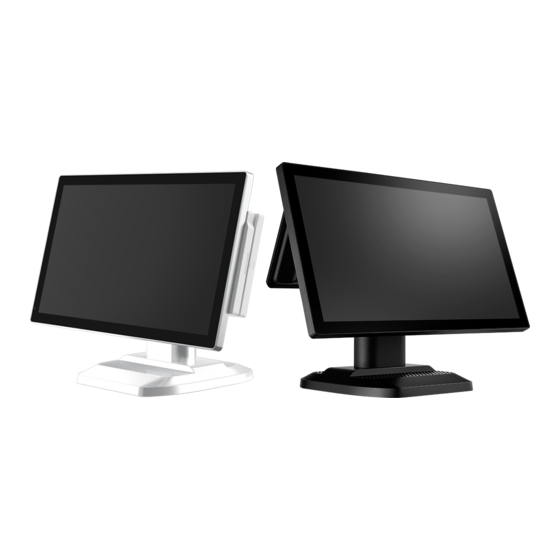

Fametech XT-9616N Quick Installation Manual

XT-9616N / 9816P
15.6-inch Mountable Touch POS
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.

Use only parts, especially power adapter, recommended by the manufacturer;

unapproved parts may be hazardous.
Make sure that the voltage applied to the power outlet is within the specified

range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
Power off the system and remove the power adapter while cleaning the system.

Before powering on the system, make sure all the peripherals are firmly

installed.

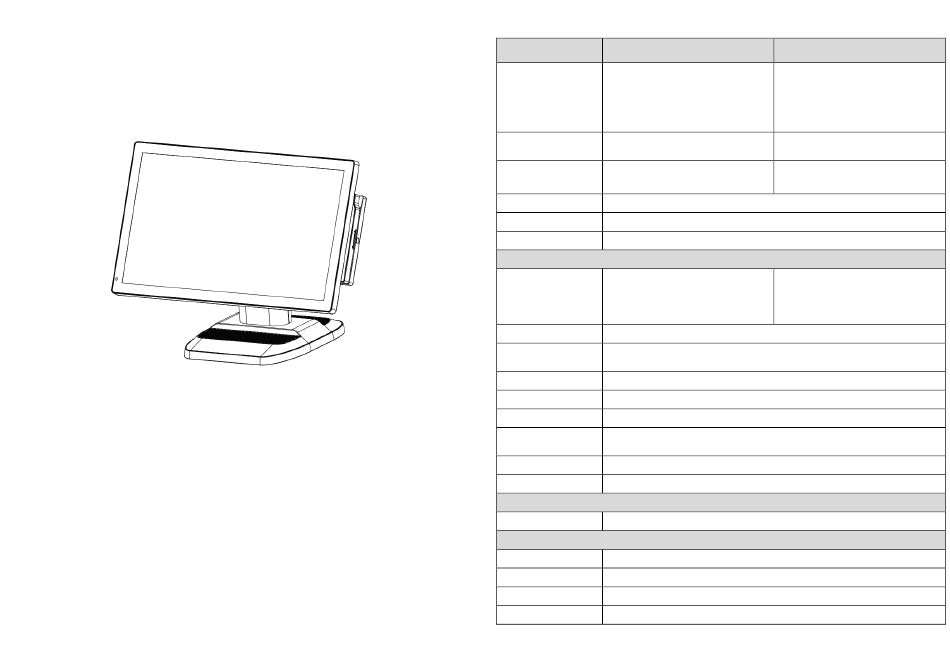

 Specifications
Model Name XT-9616N
Intel® Processor®
Processor
(Alder Lake)
1 x DDR4 SO-DIMM
System Memory
(3200MTs, up to 16GB)
1 x Easy access M.2 SSD
Storage
(PCIe 3.0 x 4 NVMe / SATA)
LCD Panel 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)
Touch Panel True-Flat Projected Capacitive Multi Touch
Speaker
I/O Interface
1 x USB 3.2 Type A
USB 1 x USB 3.2 Type C (w/ QC)
5 x USB 2.0 Type A
LAN
COM
1 x COM (DB9), w/ RI/5V/12V by Jumper (Option)
VGA
HDMI
Audio
Cash Drawer
DC Power Out
DC Power In
Power Management
Power Adapter
Mechanical & Environmental
Dust and Water
Tilt Adjustment
Dimension
Weight
XT-9816P
Intel® Core™
i3-1215U
N97 i5-1235U
i7-1255U
(Alder Lake)
2 x DDR4 SO-DIMM
(3200MTs, up to 64GB)
1 x Easy access M.2 SSD
(PCIe 4.0 x 4 NVMe / SATA)
1 x 2W High Quality Speaker
3 x USB 3.2 Type A
1 x USB 3.2 Type C (w/ DP)
3 x USB 2.0 Type A
2 x USB 2.0 Type A (Option)
1 x RJ45 10/100/1000Mbps Giga Ethernet
2 x COM (RJ45), w/ RI/5V/12V by BIOS
1 x DB-15 VGA Port (Option)
1 x HDMI Port
1 x Line-out/MIC-in
1 x RJ11 port supports 2 cash drawer,
w/ 12V/24V by jumper
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4pin type
12V@7.5A, 90W Adapter
IP65 on Front Bezel
0° ~ 90°
378.31 (W) x 282.47 (H) x 45.7 (D) mm
3.75 kg
