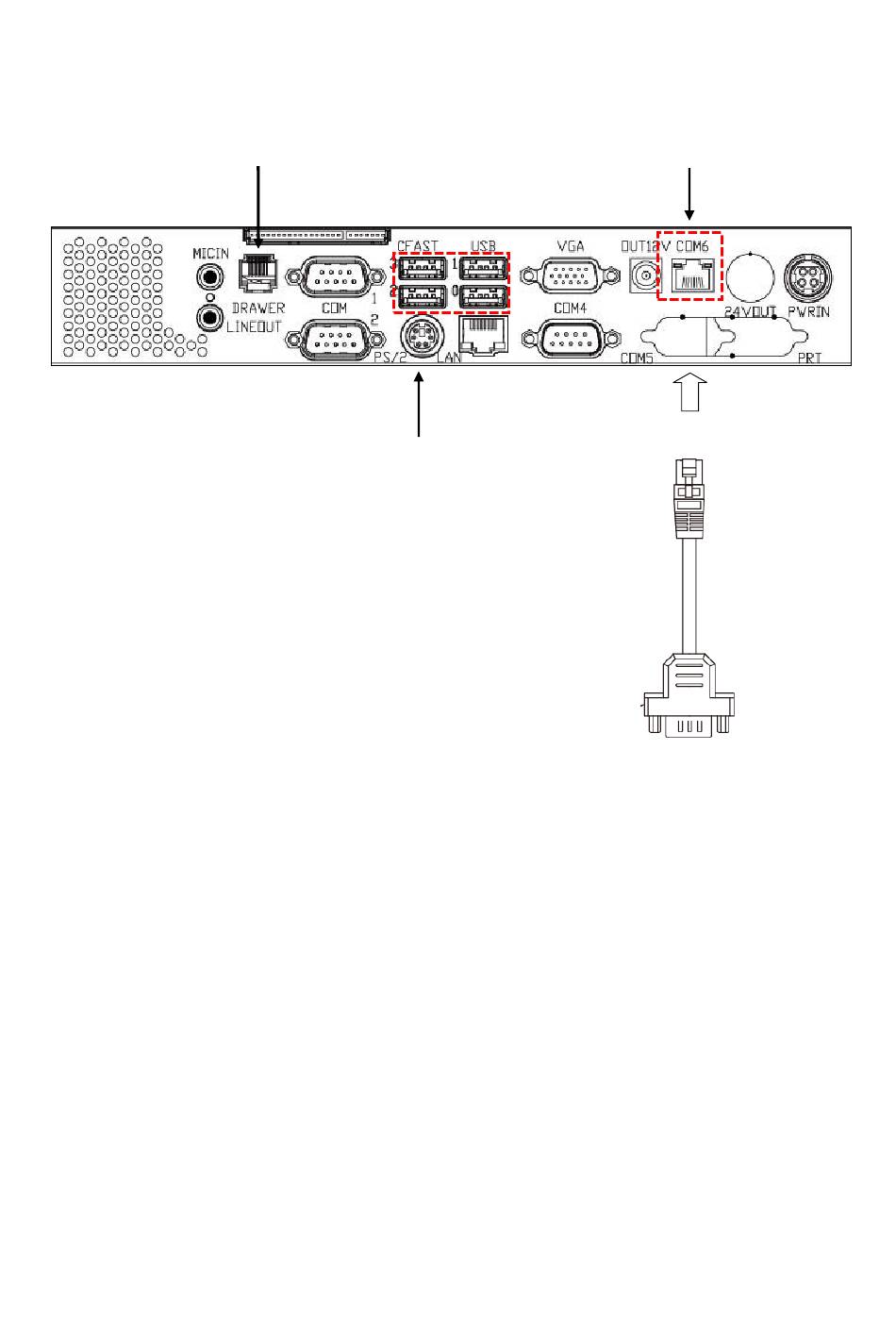

1.4. Bottom I/O Ports

Cash Drawer
MIC In
LINE
Out
CAUTION:
The optional RJ-45 to RS-232-DB9 Male Cable can be connected to COM 6 ONLY.
DO NOT uses the cable to the other connector or other device.
It may damage the POS unit or device itself.
(RJ-11)
CFast Slot
COM Ports
(COM 1/COM 2)
PS/2
USB
VGA
LAN Port
COM Port
(COM 4)
(RJ-45)
RJ-45 to RS-232-DB9
Male Cable
(COM-6)
- 7 -
COM Port
(COM 6)
12VDC
Power
Output
Input
