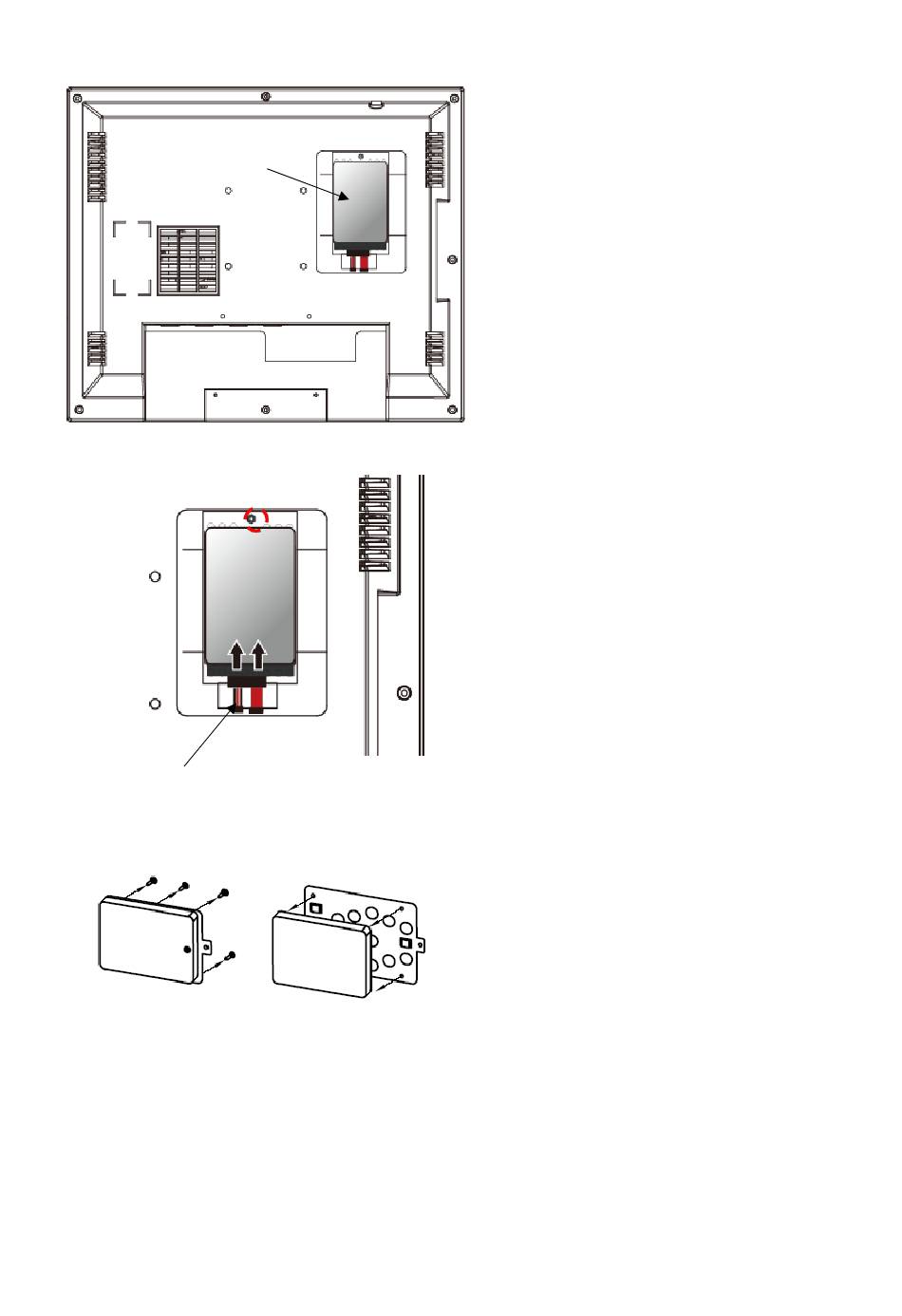

HDD Module
HEX Spacer
HDD Cables
Securing Screws
Detach the HDD from the
HDD Bracket
f.
Disconnect the HDD Cables to
remove the HDD Module.
g. Loosen the Threaded Hex Spacer of
HDD Bracket and remove HDD Module
from the POS unit.
Replace the Hard Disk
a. Loosen the securing screws to remove
the hard disk from the bracket.
Then replace a new hard disk
b. Secure to the HDD module back to the
HDD Bracket
c. Re-install the HDD Cover (with new
HDD) back to the POS unit.
- 16 -
