Fametech AP-3515 User Manual

15 inches all-in-one pos system
Hide thumbs Also See for AP-3515:
Table of Contents

Advertisement

Quick Links

Download this manual

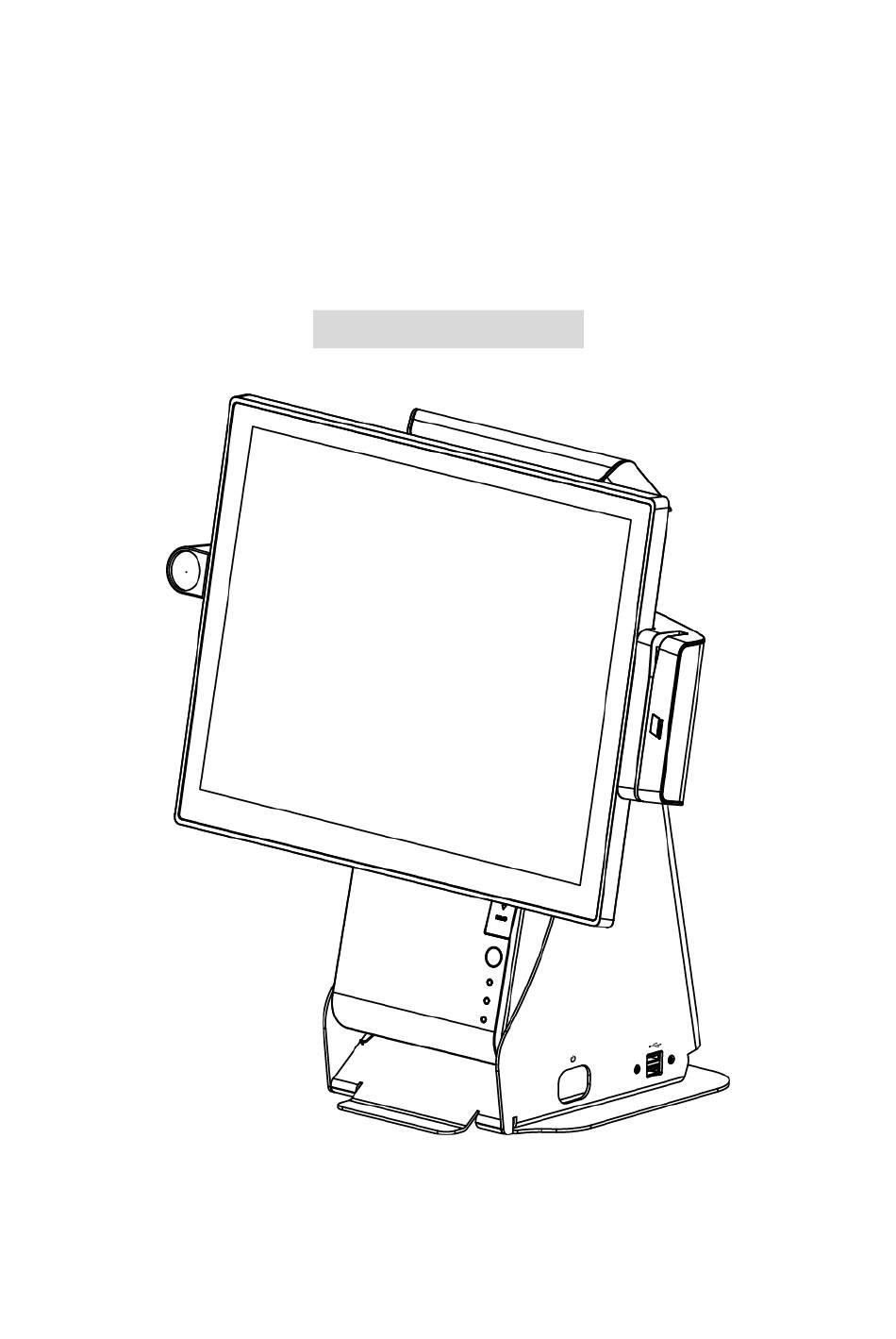

AP-3515
15 Inches All-In-One POS System
User Manual
Installation Guide
Ver. 1.0
© Copyright Fametech Inc. (TYSSO), 2018
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-3515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fametech AP-3515

Summary of Contents for Fametech AP-3515

  • Page 1 AP-3515 15 Inches All-In-One POS System User Manual Installation Guide Ver. 1.0 © Copyright Fametech Inc. (TYSSO), 2018...

  • Page 2: Disclaimer

    The information in this manual is subject to change without notice due to rapid improvement on IT technology. Users can get the most up to date information from our web sites: http://www.fametech.com.tw DISCLAIMER This manual has been examined for accuracy. While precaution has been taken in the...

  • Page 3: Caution

    Warranty does not cover any damage caused by improper use. TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read following instructions carefully.  Use only parts, especially power adapter, recommended by the manufacturer; unapproved  parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make sure that the ...

  • Page 5: Table Of Contents

    Contents General Information ....................... i ABOUT THIS MANUAL......................i DISCLAIMER ........................i WARNING ..........................i CAUTION ..........................ii WARRANTY LIMITS ......................ii TRADE MARKS AND SERVICE MARKS ................ii IMPORTANT SAFETY INFORMATION ................iii 1. Product Overview ....................1 1.1. Packing ........................1 1.2.

  • Page 6: Product Overview

    1. Product Overview 1.1. Packing POS Unit (with Base) Power Adapter AC Power Cord Quick Installation Guide Contents  POS Unit (with base)  Power Adapter  AC Power Cord  USB Extension Cable (pre-installed to the base)  Quick Installation Guide Optional Accessories * ...

  • Page 7: Specifications

    1.2. Specifications Model AP-3515 Intel® Bay Trail-D Platform, Celeron® Processor J1900 2.0 GHz (2M Cache, up to 2.42 GHz) System Memory 1 x DDR3L SO-DIMM Socket, up to 8GB Graphic Intel® HD Graphics POS Ready 7, Windows 7, Windows 8.1,...
  • Page 8 Peripherals Optional Accessories 3" Thermal Printer with cutter 203 dpi and 250 mm/s supported Thermal Printer Serial, Ethernet, USB and RJ11 ports 24VDC/2.5A (with External Adapter) 8" (800x 600), 10.4"(800x600) and 15" (1024x768) LCD Display selectable 2nd Display Optional Touchscreen VFD, 20 Columns x 2 Lines Customer Display Magnetic Stripe Reader...
  • Page 9 Dimensions  Left View Front View Right View Rear View Bottom View Note: The Thermal Receipt Printer, Customer Display, 2nd LCD Display, Magnetic Stripe Card Reader (MSR) and i-Button Module are optional peripherals and may not be included in the package. Please consult the local representatives for further information.

  • Page 10: Parts Descriptions

    1.3. Parts Descriptions  Front View Touch Screen i-Button (Optional) (Optional) Power Indicator Thermal Printer Base  Rear View Customer Display (Optional) i-Button (Optional) (Optional) Base Cable Access Opening - 5 -...

  • Page 11: Bottom View

     Bottom View Cable Access Opening Bottom I/O Ports  - 6 -...
  • Page 12 Right View  (Optional) USB Port COM4 (when MSR Not Installed) Base USB Ports Printer Power Switch Access Opening Cable Access Opening Left View  i-Button ional) Power Switch USB Port (when i-Button Not Installed) Cable Access Opening Note:  The side USB ports (Left and Right) and COM port (USB type A, COM 4) are reserved for i-Button and MSR unit generally.

  • Page 13: I/O Ports Descriptions

    1.4. I/O Ports Descriptions Main Power Input Cash 12V DC Drawer (Optional) USB Ports COM 3 COM 1 COM 2 Modular HDD/SSD Slot Bottom I/O Ports I/O Ports Descriptions: I/O Port Description Connect devices with USB type A connectors 1 x USB 2.0 and 1 x USB 3.0 in I/O Bracket USB Ports 2 x USB 2.0 in Base Side: with USB Extension Cable from Bottom USB ports (USB 1, USB 2) to Base...

  • Page 14: Pos Installation

    2. POS Installation 2.1. Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. ...

  • Page 15: Install Your Pos

    2.2. Install Your POS 2.2.1. Install the External Power Adaptor Tilt the POS horizontally (as image left illustrated). Remove the securing screws of the bracket. Securing Bracket Screws Base Push the bracket upward to release it from the base. Remove the bracket from the base. Note: Bracket Restore the detached bracket and screws...
  • Page 16 Pass the DC power cable of the External Power Adaptor (POS system) through the Cable Access Opening of the base. DC Power Cable (POS System) Cable Routing Cable Access Slot Opening Electrical Outlet External Power Base Adaptor (POS System) Power Cord Arrange the cable and pass through the Cable Routing Slot.

  • Page 17: Install The Optional Receipt Printer

    2.2.2. Install the Optional Receipt Printer To install the Optional Receipt Printer to the POS system, unpack the package of printer and follow the instructions as bellows: Pass the DC power cable of the External Power Adaptor (Printer) through the Cable Access Opening of the base.
  • Page 18 Connect the DC power cable (Printer) and Printer Connector Cable to the Receipt Printer. Printer Connector Cable Electrical Outlet DC Power Cable Receipt Power Adaptor (Printer) Printer (Printer) Power Switch I/O Ports of the Receipt Printer (Rear View) DC Power Printer Cable Connector...
  • Page 19 Install the Receipt Printer to the base. Receipt Electrical Outlet Printer Re-install the Bracket to the base. Tighten the securing screws of the Bracket. Securing Bracket Screws - 14 -...
  • Page 20 Adjust the POS to the proper view angle. Turn on the power switch of the Receipt Printer (through the Printer Power Switch Access Opening, at the Right side of the base) and the other peripherals (if installed as well). Turn on the power switch of the POS System (Left side of the POS panel). Now the POS System is ready for use.

  • Page 21: Appendix

    Appendix A. Install the Modular Customer Display (Optional) There is a connector for the Modular Modular Customer Display. Customer Display Securing Screws Connector Connect the connector of the Modular Customer Display to the POS system. Install the Modular Customer Display to the POS system.

  • Page 22: Install The Msr & I-Button Module (Optional)

    B. Install the MSR & i-Button Module (Optional) 1. Turn off the POS system. Install the i-Button Module to the side I/O port. i-Button Module Install the MSR Module to the Side I/O port. MSR Module Tighten the securing screws and Turn-on the power switch of the POS system.

  • Page 23: Replace The Hard Disk Drive Of Your Pos System

    C. Replace the Hard Disk Drive of Your POS System 1. Turn off the power and tilt the POS horizontally. There is a Hard Disk Drive Slot on the Bottom I/O Port. Hard Disk Drive Slot Hard Disk Drive Slot on the Bottom I/O Ports 2.
  • Page 24 TIP: Replace a New Hard Disk to the HDD Bracket 1. Loosen the securing screws to remove the Securing Screws hard disk from the bracket. HDD Bracket Then replace a new hard disk. 2. Secure a new hard disk drive (HDD) to the HDD Bracket.
