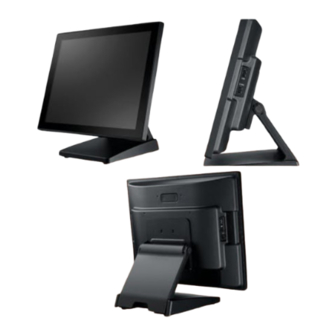

Fametech TP-1815P Quick Installation Manual

TP-1815P
Fanless Full-Flat POS Terminal
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.

Use only parts, especially power adapter, recommended by the manufacturer;

unapproved parts may be hazardous.
Make sure that the voltage applied to the power outlet is within the specified

range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
Power off the system and remove the power adapter while cleaning the system.

Before powering on the system, make sure all the peripherals are

firmly installed.

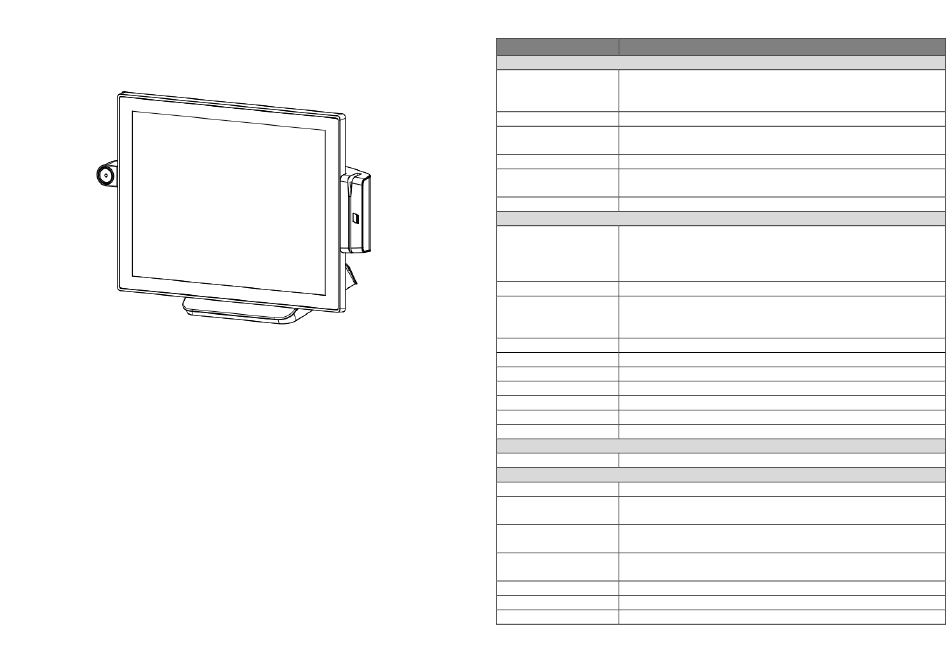

 Specifications
Model Name
Main System
Intel® Core™ i3-1215U (Alder Lake) 10M Cache, Max. 4.4 GHz
Intel® Core™ i5-1235U (Alder Lake) 12M Cache, Max. 4.4 GHz
Processor
Intel® Core™ i7-1255U (Alder Lake) 12M Cache, Max. 4.7 GHz
2 x 260 pin DDR4 SO-DIMM (3200MTs, up to 64GB)
System Memory
1 x Easy access M.2 SSD (PCIe 4.0 x 4 NVMe / SATA)
Storage
1 x Removable 2.5" SATA SSD/HDD drive bay (Option)
LCD Panel
Touch Panel
Speaker
I/O Interface
USB
LAN
COM
LPT
VGA
HDMI
Audio
1 x RJ11 port supports 2 cash drawer, w/ 12V/24V by jumper
Cash Drawer
DC Power Out
DC Power In
Power Management
Power Adapter
Mechanical & Environmental
Dust and Water
Tilt Adjustment
Dimension
Weight
Certification
Operation System
TPM
TP-1815P
15-inch TFT LCD, 1024 (W) RGB x 768 (H)
True-Flat Projected Capacitive Multi Touch
True- Flat 5-wire Resistive Touch
1 x 2W High Quality Speaker
3 x USB 3.2 Type A
1 x USB 3.2 Type C (w/ DP ALT mode)
2 x USB 2.0 Type A
2 x USB 2.0 Type A (Option)
1 x RJ45 10/100/1000Mbps Giga Ethernet
2 x COM (RJ45), w/ RI/5V/12V by BIOS
1 x COM (USB), for MSR/i-button module
2 x COM (DB9), w/ RI/5V/12V by Jumper (Option)
1 x DB25 Parallel Port (Option)
1 x DB-15 VGA Port (Option)
1 x HDMI Port
1 x Line-out/MIC-in
1 x DC 12V Power Out (DC 2.1mm)
1 x Standard DIN 4PIN type
12V@7.5A, 90W Adapter
IP65 on Front Bezel
15° ~ 85 ° (w/ Standard Base)
0° ~ 90 ° (w/ Folding Base)
355 (W) x 303 (H) x 205 (D)mm (w/ Standard Base)
355 (W) x 312 (H) x 200 (D)mm (w/ Folding Base)
4.6 kg (w/ Standard Base)
4.9 kg (w/ Folding Base)
CE/FCC/LVD
Windows 10/11 and Linux
TPM2.0
