2.4. Install the Rear Top Mount Customer Display (Optional)

Hinge Cover
Hinge Cover
Base Cover
Securing
Screws
Customer
Display
ase Cover
B
Hinge Cover
Hinge Cover

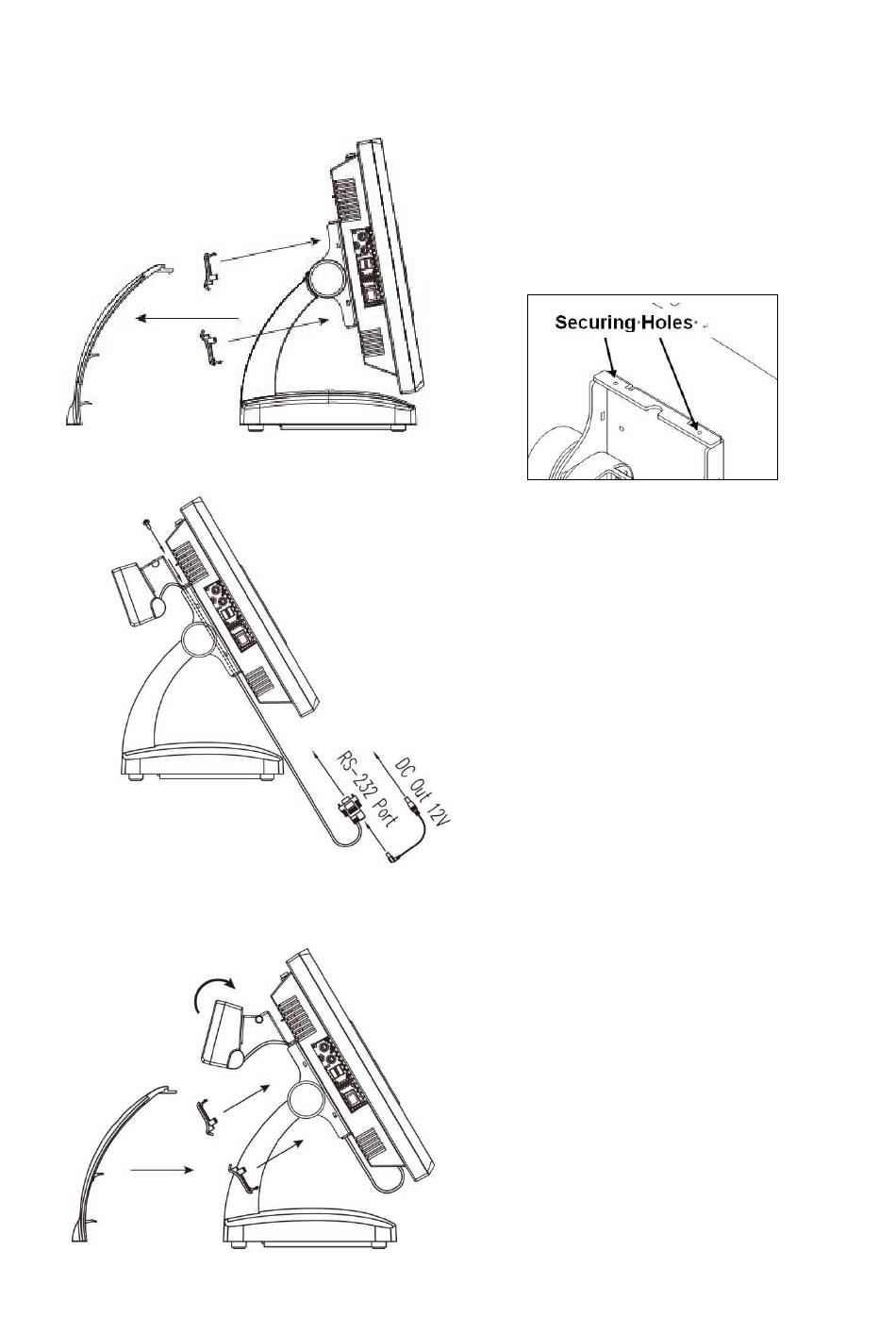

a. Remove the base cover and two hinge
covers from the base.
There are 2 securing holes for installing
the Customer Display
b. Tilt the POS unit properly so as to
install the customer display.
c. Secure the screws of customer display
on the base.
Pass the cord of the customer display
through the holes with care (as image
left indicated).
Plug the cable to a COM port available
and connect the extension
power cable.
d. Tilt the customer display properly so as
to install the two hinge covers onto the
base.
Re-install the base cover and hinge
covers to the base.
