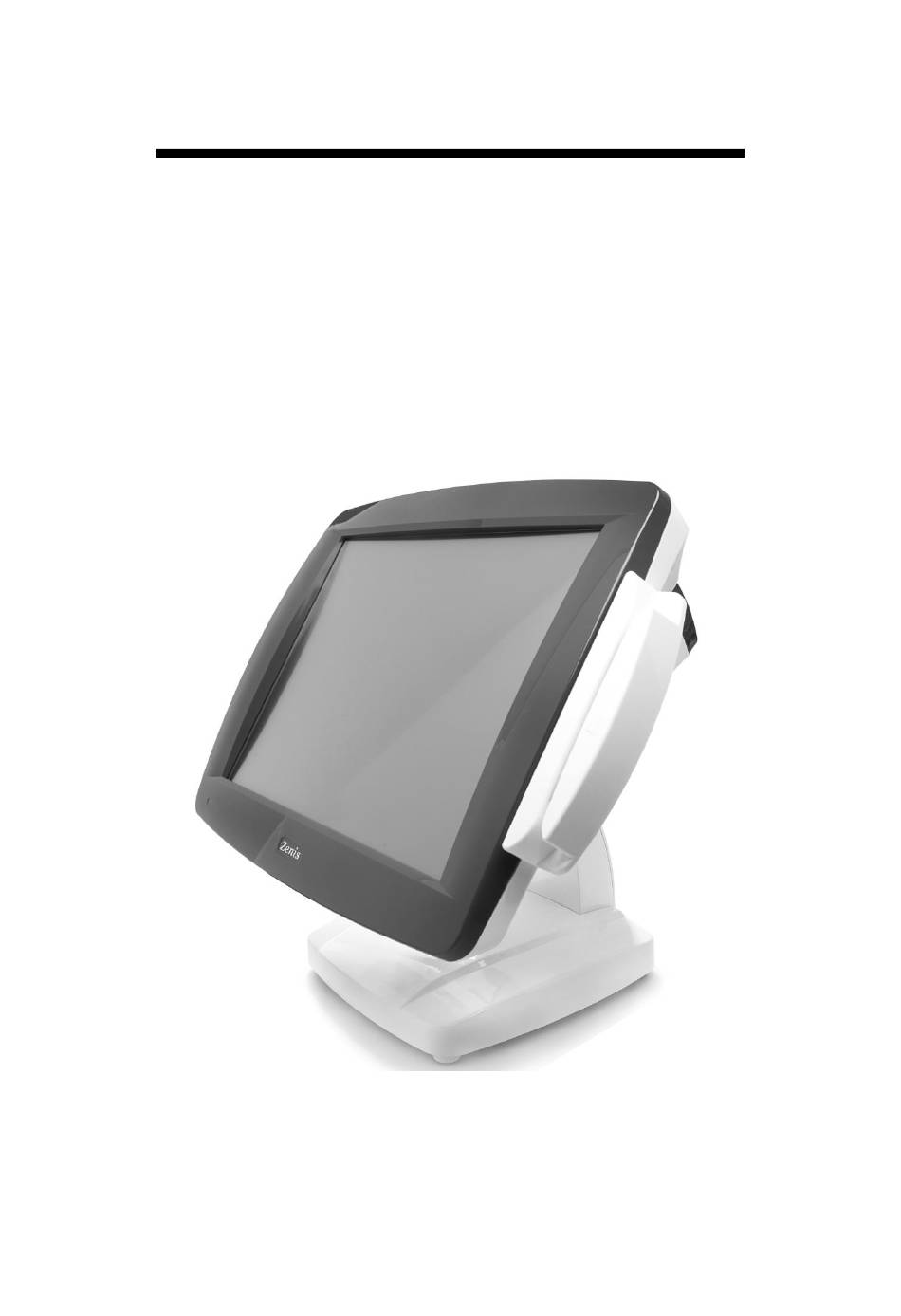

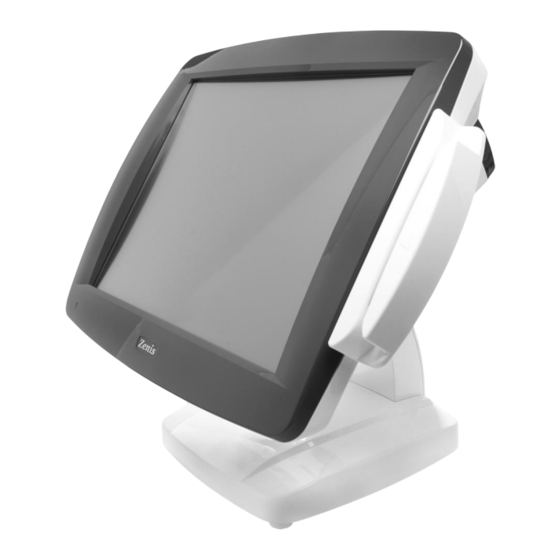

- Page 1 Service Manual POS-3000 Series 5-Wire Resistive Touch Panel POS System POS-3000-D2550 / POS-3000-i/POS-3000-B Ver. 2.1 © Copyright Fametech Inc. (TYSSO) 2015...
-
Page 2: Table Of Contents
Table of Contents Parts Description ................4 Examining Your System ................4 Exploded View ......................4 Parts Description ..................5 Cables ......................6 Main Board ...................... 7 CPU Cooler Kit ....................12 RAM Module ....................12 Side I/O Board ....................12 LCD Panel ..................... - Page 3 Table of Figures Figure 1 Exploded View of the System ................4 Figure 2 Cables ........................6 Figure 3 Main board Layout- Front (POS-3000-D2550) ............8 Figure 4 Main board Layout- Front (POS-3000-i) ............... 9 Figure 5 Main board Layout- Front (POS-3000-B) ............10 Figure 6 Main board Layout- Back (POS-3000-B) .............
-
Page 4: I Parts Description
Parts Description Examining Your System Exploded View Figure 1 Exploded View of the System... -
Page 5: B Parts Description
Parts Description Item Description Front Bezel Front Bezel (Black, White or Red) LED Indicator Main Power LED Indicator Sealing Rubber Touch Panel Rubber Touch Panel 5-Wire Resistive Touch Panel LCD Panel 15-inch LCD Panel Panel Chassis LCD Panel Chassis I/O Bracket Bottom I/O Bracket Speaker Speakers... -
Page 6: Cables
Cables HDD Cable LVDS Cable Power LED Indicator Power Switch Speakers MSR Cable (optional) Inverter Cable I/O Board Cable Figure 2 Cables... -
Page 7: Main Board
Main Board ● Main Board Connection / Installation Notes The table below is the descriptions of the connectors of the main board. Each connector/slot is used for the specified part or optional peripheral. Please refer to the notes as below and examine the layouts of the main boards to locate the correct connectors so as to complete the installation. -
Page 8: Figure 3 Main Board Layout- Front (Pos-3000-D2550)
● POS-3000-D2550 Connector Front View Figure 3 Main board Layout- Front (POS-3000-D2550) -
Page 9: Figure 4 Main Board Layout- Front (Pos-3000-I)
● POS-3000-i Connector Front View Figure 4 Main board Layout- Front (POS-3000-i) -
Page 10: Figure 5 Main Board Layout- Front (Pos-3000-B)
● POS-3000-B Connector (Reserved) Front View Figure 5 Main board Layout- Front (POS-3000-B) -
Page 11: Figure 6 Main Board Layout- Back (Pos-3000-B)
CFAST Slot Figure 6 Main board Layout- Back (POS-3000-B) -
Page 12: Cpu Cooler Kit
CPU Cooler Kit To Main Board (CPU Fan Connector) Figure 7 CPU Fan & Heat Sink (POS-3000-D2550/POS-3000-B) To Main Board (CPU Fan Connector) Figure 8 CPU Fan & Heat Sink (POS-300-i) RAM Module Figure 9 RAM Module Side I/O Board To Main Board (3) Use I/O Board Cable and connect to the Main Board. -
Page 13: Lcd Panel
LCD Panel To Main Board ( Use LVDS Cable and connect to the LCD Panel and to Main Board. To Main Board (10) Figure 11 LCD Panel Note: The specifications and features of parts may update without prior notice. Please contact the local representative for the detail information. -
Page 15: System Disassembly
System Disassembly Detach the Base from POS Unit Turn off the computer and remove all power cords from the computer system. Tilt the LCD panel to the horizontal level and unplug the power cord. Remove the hinge holder covers according to the direction of the arrows. Loosen the 5 screws and detach the base holder from the panel... -
Page 16: B Disassemble The Pos Unit
Disassemble the POS Unit Remove the Back Cover Loosen the screw to remove the HDD cover. Note: Place the monitor assembly on a flat, clean and stable location (desk, table…etc). Loosen the screw x 8 to remove the back cover. -
Page 17: Remove The Hard Disk
Remove the Hard Disk Use a Hex screw driver to loosen the spacer and disconnect the HDD cable. Remove the spacer Detach the HDD bracket from the hard disk. Store them at a secured place. Hard disk with bracket Detach the HDD bracket The detached bracket and HDD Mylar (left) Hard Disk (right) -
Page 18: Remove The Main Board Cover
Remove the Main Board Cover Loosen the screw x 9 to remove the metal Main Board Cover. The inner view of POS Unit. -
Page 19: Remove The Msr Kit (Optional)
Remove the MSR Kit (optional) If the POS system is supplied with an optional MSR Kit, please follow the steps to remove the kit: Loosen the screw of the MSR kit Disconnect the MSR cable and remove the MSR kit. Disconnect the Inverter Disconnect the cable of LCD Panel from main board... -
Page 20: Remove The Power Switch
Remove the Power Switch Loosen the securing screws to detach the bracket. Disconnect the cable of Power Switch. Disconnect the Touch Panel Connector The Touch Control Unit is embedded in the Main Board of POS-3000-i. Disconnect the flat-wired cable of the Touch Panel before removing the Main Board Unit. -
Page 21: Remove The Side I/O Board
Remove the Side I/O Board Unplug the I/O Cable Loosen the securing screws to remove the Side I/O board Disconnect the HDD Cable Unplug the HDD cable and store it to a proper place. -
Page 22: Disconnect The Lvds Cable From The Main Board
Disconnect the LVDS Cable from the Main Board Disconnect the LVDS cable from the Main Board Disconnect the connectors of Power Indicator & Speakers Disconnect the Power Indicator (twisted pair cable) from the Main Board. The Power Indicator (blue-white twisted pair cable) and Speakers (Red/Back twisted pair cable) Disconnect the Speaker (RED/Black twisted pair cable) -
Page 23: Remove The Main Board
Remove the Main Board Use a HEX screw driver to remove the connector spacers on the I/O bracket Remove all of the securing screws of the Main Board Connector Spacers Slightly move the Main Board forward and you can take the Main Board out of the Unit Main Board... -
Page 24: Remove The Ram Module
m. Remove the RAM Module Release the latches on the two sides of the RAM module slot. The RAM Module would lift up to a degree (approximately 30° ). Gently slide the module out of the slot Repeat the step 1~3 to remove the other RAM Module... -
Page 25: Remove The Cpu Fan & Heat Sink
Remove the CPU Fan & Heat Sink Disconnect the CPU Fan connector. Turn over the Main Board and remove the securing screws (or latches) to release the CPU Fan & Heat Sink CPU Fan & Heat Sink (left) and Main Board (Right) -
Page 26: Remove The Speakers, Lvds Cable And Power Led Indicator
Remove the Speakers, LVDS Cable and Power LED Indicator 1. Loosen the securing screws of the Left & Right speakers. 2. Release the clip so as to pull out the Power Indicator LVDS Cable, Speakers and Power Indicator Tips: Use a small flat bladed screw Power LED Indicator driver to release the clip 3. -
Page 27: Remove The I/O Bracket
Remove the I/O Bracket Loosen the 3 securing screws so as to remove the I/O Bracket Remove the LCD Panel 1. Loosen the securing screws of the LCD Panel Chassis and remove the LCD Panel. 2. Loosen the 4 securing screws and detach the LCD Panel Chassis. -
Page 28: Remove The Touch Panel
Remove the Touch Panel Carefully Lift up the Touch Panel out of the front bezel. Front Bezel Set (with Touch Panel) Remove the Flat Ribbon Cable from the Touch Panel Rubber Warning: Be sure not to damage the cable while removing the Touch Panel. -
Page 29: C Disassemble Base Kit
Disassemble Base Kit Remove the Power Adapter and Base Turn over the base and loosen the securing screws to remove the power adaptor. The Base with Adaptor Module Remove the screws from the Base. Disassemble the Base Arm from the Base Adaptor Module (Adaptor and holder) Loosen the securing screws to remove... -
Page 30: Disassemble The Base Arm Set
Disassemble the Base Arm Set Turn and remove the two swivels and then detach the Base Bracket from the Base Arm Set. Loosen the four securing screws of hinge to remove the base bracket from Base Arm Set Hinge Swivel Hinge Base Bracket Turn and remove the swivels from Base Arm Set... - Page 31 Revision History Date Version Note Description Nov 01, 2015 Ver 2.1 New Model revision Add POS-3000-D2550 and POS-3000-B Explode drawing revised Remove price and part no Remove old model (POS-3000-AT- POS-3000-D5, POS-3000-CD) Oct 11, 2013 Ver. 2.0 New Model added Add New POS-3000-i (Core-I model) Update mechanical part number with color variations.
