VNX5500 Block and File platform stackup

Rear view

6 EMC VNX5500 Parts Location Guide
Figure 2 shows an example of the front of a Block and File VNX5500 with a 3U, 25
(2.5-inch) DPE.
AC
AC
DVD
DVD
0
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

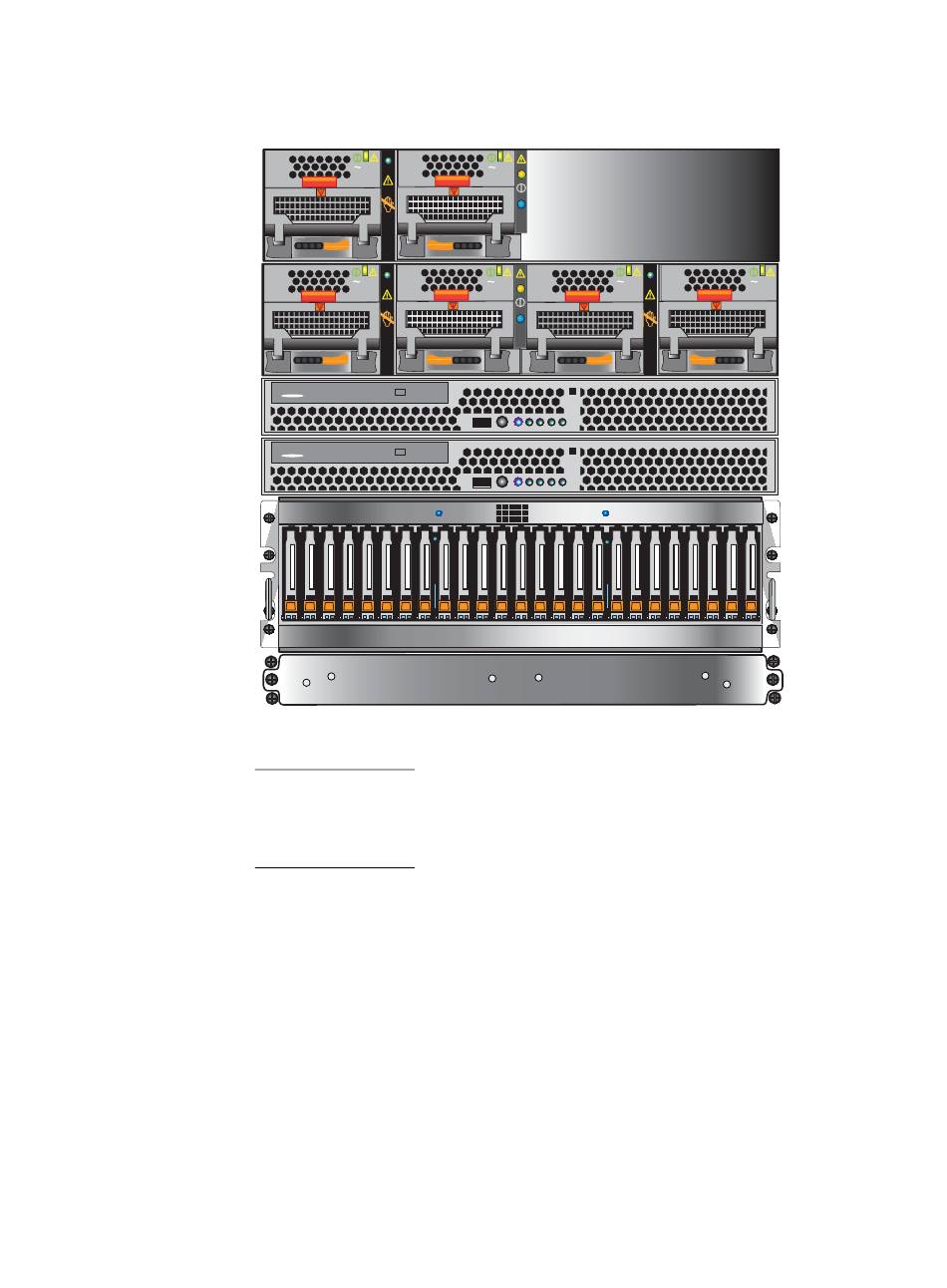

Figure 2 Example of the Block and File VNX5500 platform with a 3U, 25 (2.5-inch) DPE (front view)
Note: A basic Block and File VNX5500 platform has one to two 2U Data Mover enclosures,
one to two 1U Control Stations, a 3U DPE, and a dual 1U SPS. In the following sections, the
illustrations and corresponding tables describe these individual components. These
descriptions are for illustrative purposes only.
On the rear, viewing from top to bottom, a Block and File VNX5500 platform includes the
following hardware components
One to two 2U Data Mover enclosures with one, two, or three Data Movers
◆
One to two 1U Control Stations
◆
One 3U DPE with two storage processors (SP A and B); each SP has one CPU module
◆
and one power supply/cooling module
One dual 1U SPS
◆
AC
AC AC
(Figure 3 on page 7):
Data Mover
enclosure 1
(optional)
AC
Data Mover
enclosure 0
Control Station 1
(optional)
Control Station 0
24
3U, 25 (2.5-inch)
disk processor
enclosure (DPE)
SPS
VNX-000615
