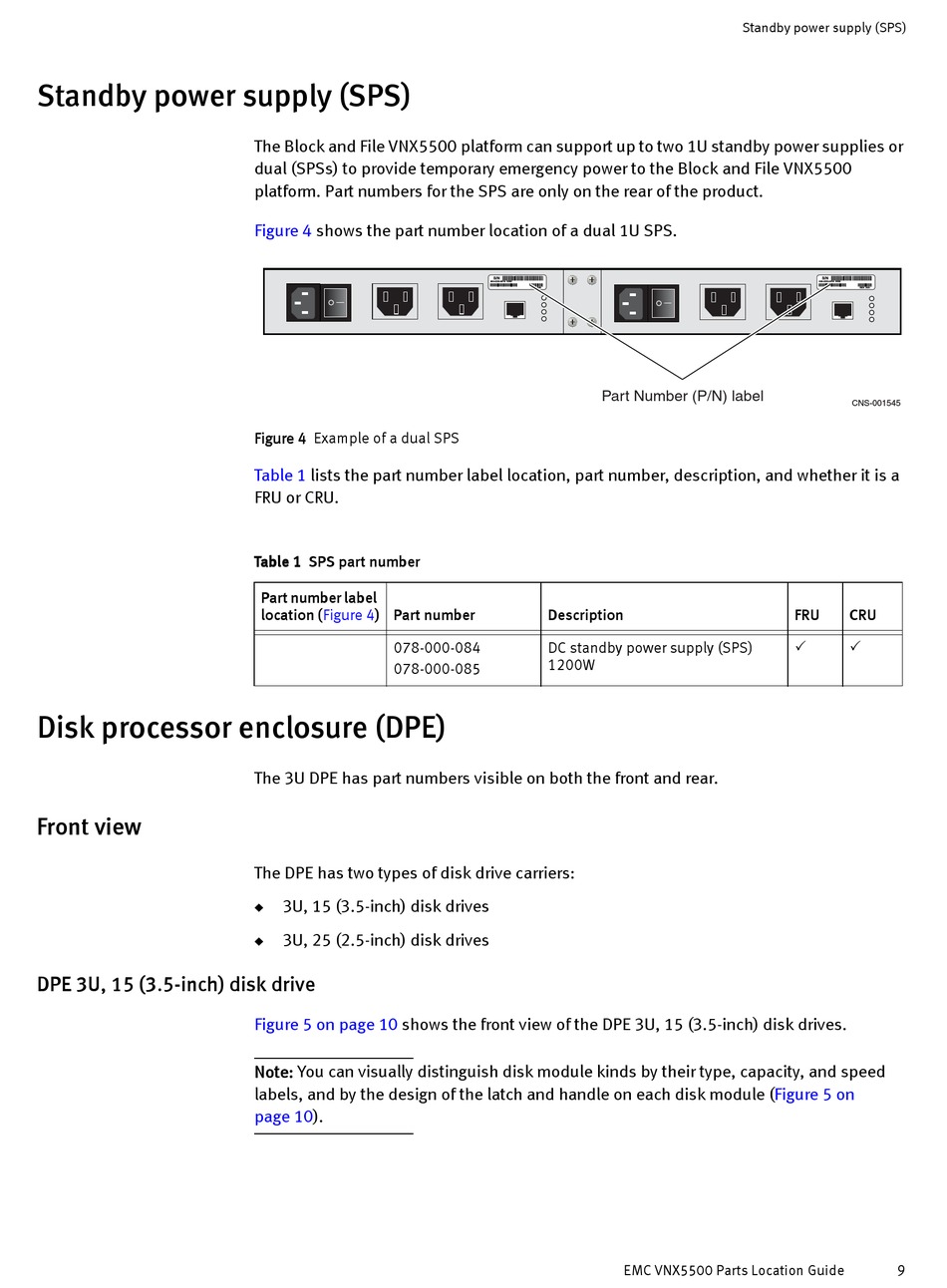

Standby power supply (SPS)

Disk processor enclosure (DPE)

Front view
DPE 3U, 15 (3.5-inch) disk drive
The Block and File VNX5500 platform can support up to two 1U standby power supplies or
dual (SPSs) to provide temporary emergency power to the Block and File VNX5500
platform. Part numbers for the SPS are only on the rear of the product.
Figure 4 shows the part number location of a dual 1U SPS.
Figure 4 Example of a dual SPS
Table 1 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 1 SPS part number
Part number label
location (Figure 4) Part number
078-000-084
078-000-085
The 3U DPE has part numbers visible on both the front and rear.
The DPE has two types of disk drive carriers:
3U, 15 (3.5-inch) disk drives
◆
3U, 25 (2.5-inch) disk drives
◆
Figure 5 on page 10 shows the front view of the DPE 3U, 15 (3.5-inch) disk drives.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module
page 10).
S/N
900-XXX-0014 0082
REV A00
Part Number (P/N) label
Description
DC standby power supply (SPS)
1200W
EMC VNX5500 Parts Location Guide
Standby power supply (SPS)
S/N
900-XXX-0014 0082
REV A00
CNS-001545
FRU CRU
 
(Figure 5 on
9
