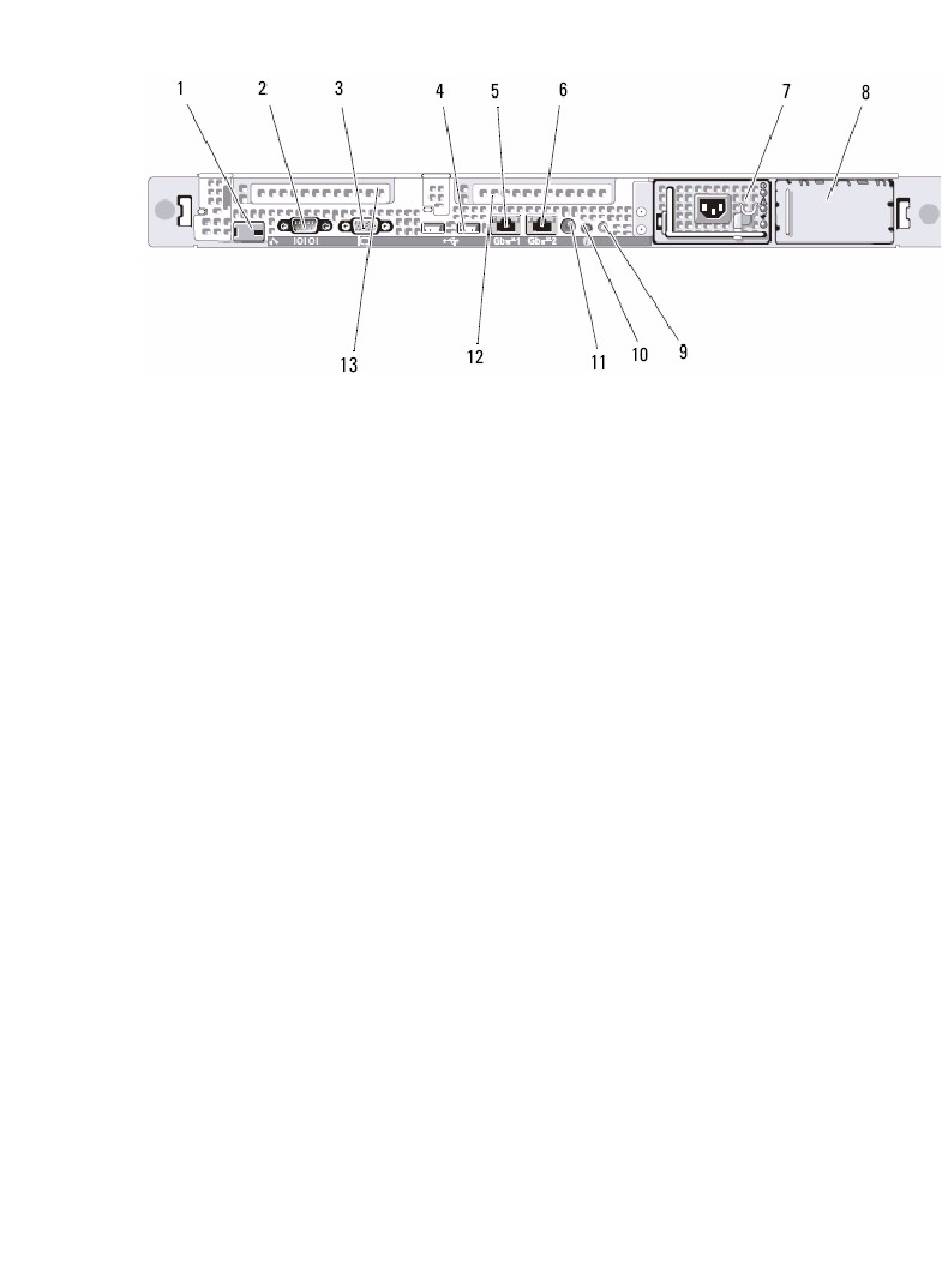

Rear View

N/A
1
Serial connection
2
Video connection
3
Two USB connections
4
NIC1 connection (ETH0)
5
NIC2 connection (ETH1)
6
Power supply 1
7
Power supply 2 (optional)
8
NMI button
9
System identification button
10
System status indicator (same function as front LED display)
11
PCI expansion slot 2
12
PCI expansion slot 1
13
N
O T E
3: Hardware Details
: Promo Code 1 — Servers have one power supply.
Promo Codes 3 and 5 — Servers have two power supplies.
