Disk processor enclosure (DPE)
Rear view
12 EMC VNX5500 Parts Location Guide

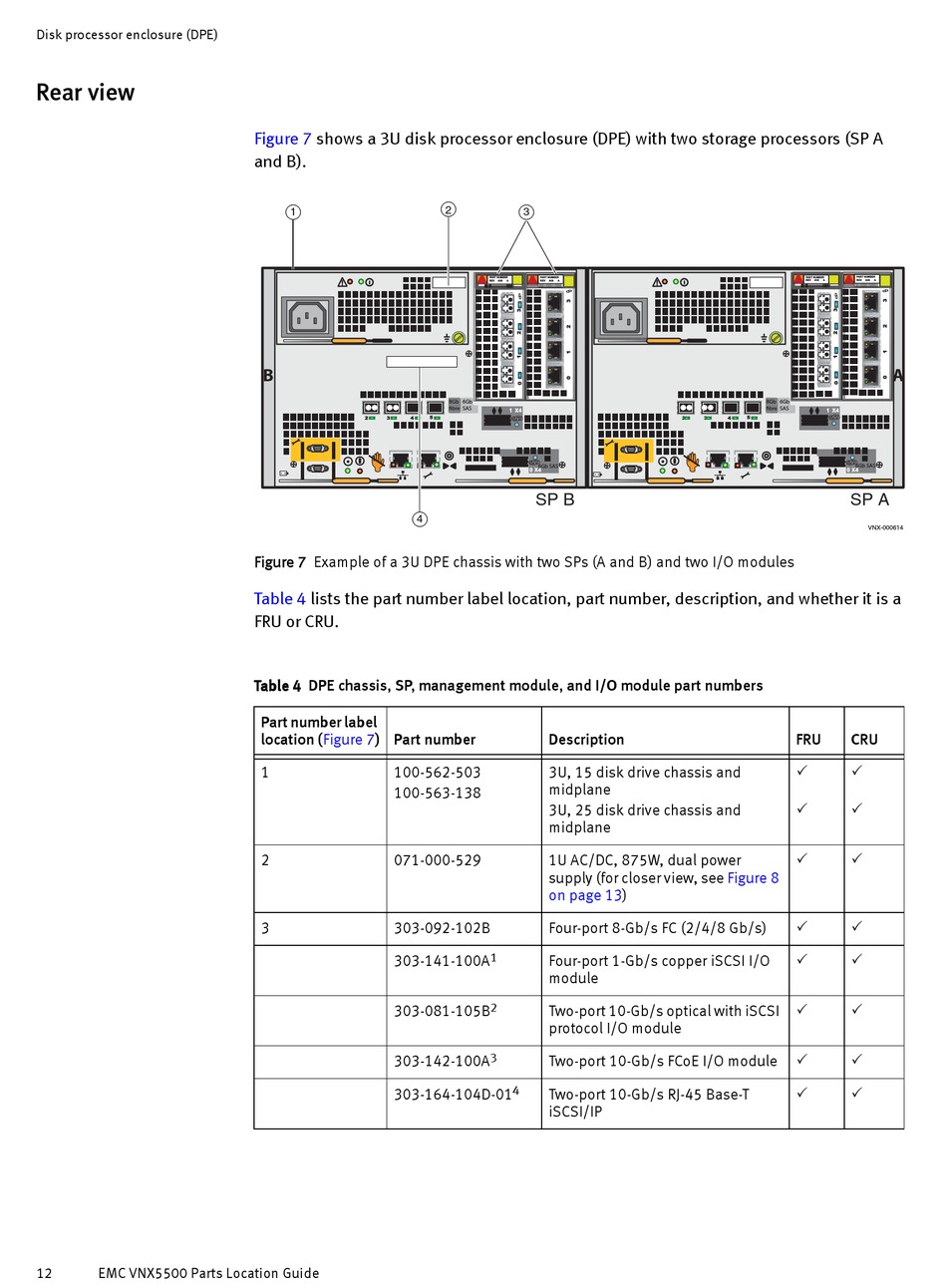

Figure 7 shows a 3U disk processor enclosure (DPE) with two storage processors (SP A
and B).
1
B
2 3 4 5
4
Figure 7 Example of a 3U DPE chassis with two SPs (A and B) and two I/O modules
Table 4 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 4 DPE chassis, SP, management module, and I/O module part numbers
Part number label
location (Figure 7) Part number
1 100-562-503
100-563-138
2 071-000-529
3 303-092-102B
303-141-100A
303-081-105B
303-142-100A
303-164-104D-01
2
3
PART NUMBER
PART NUMBER
REV A09 A
REV A09 A
8Gb 6Gb
fibre SAS
1 X4
6Gb SAS
0 X4
SP B
Description
3U, 15 disk drive chassis and
midplane
3U, 25 disk drive chassis and
midplane
1U AC/DC, 875W, dual power
supply (for closer view, see
on page 13)
Four-port 8-Gb/s FC (2/4/8 Gb/s)
1
Four-port 1-Gb/s copper iSCSI I/O
module
2
Two-port 10-Gb/s optical with iSCSI
protocol I/O module
3
Two-port 10-Gb/s FCoE I/O module
4
Two-port 10-Gb/s RJ-45 Base-T
iSCSI/IP
PART NUMBER PART NUMBER
REV A09 A REV
8Gb 6Gb
fibre SAS
1 X4
2 3 4 5
6Gb SAS
0 X4
SP A
FRU CRU
 
 
 
Figure 8
 
 
 
 
 
A09 A
A
VNX-000614
