Disk processor enclosure (DPE)
10 EMC VNX5500 Parts Location Guide
Part Number Label

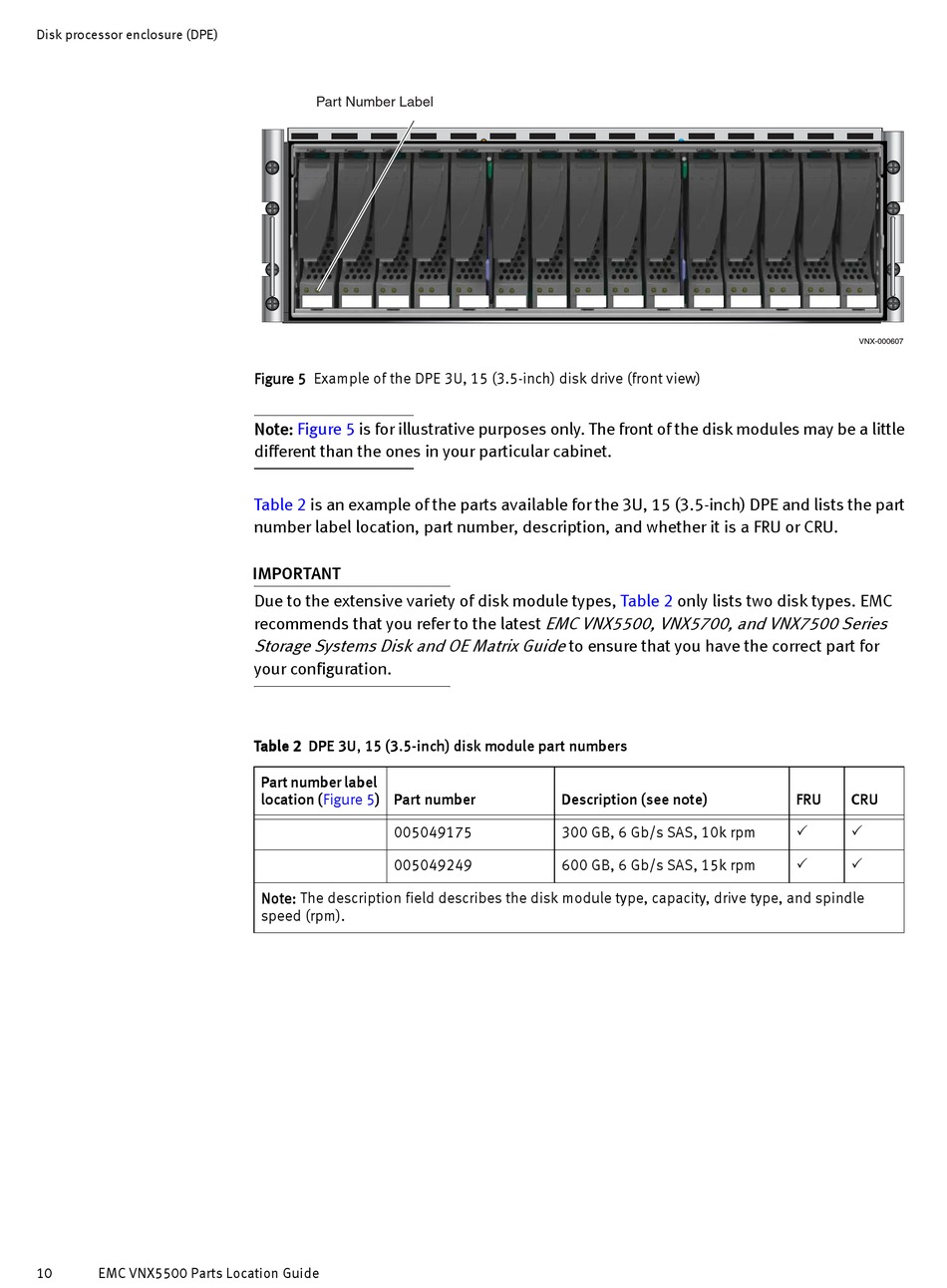

Figure 5 Example of the DPE 3U, 15 (3.5-inch) disk drive (front view)
Note: Figure 5 is for illustrative purposes only. The front of the disk modules may be a little
different than the ones in your particular cabinet.
Table 2 is an example of the parts available for the 3U, 15 (3.5-inch) DPE and lists the part
number label location, part number, description, and whether it is a FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types,
recommends that you refer to the latest
Storage Systems Disk and OE Matrix Guide
your configuration.
Table 2 DPE 3U, 15 (3.5-inch) disk module part numbers
Part number label
location (Figure 5) Part number
005049175
005049249
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
Table 2 only lists two disk types. EMC
EMC VNX5500, VNX5700, and VNX7500 Series
to ensure that you have the correct part for
Description (see note)
300 GB, 6 Gb/s SAS, 10k rpm
600 GB, 6 Gb/s SAS, 15k rpm
VNX-000607
FRU CRU
 
 
