Disk processor enclosure (DPE)
SP
14 EMC VNX5500 Parts Location Guide

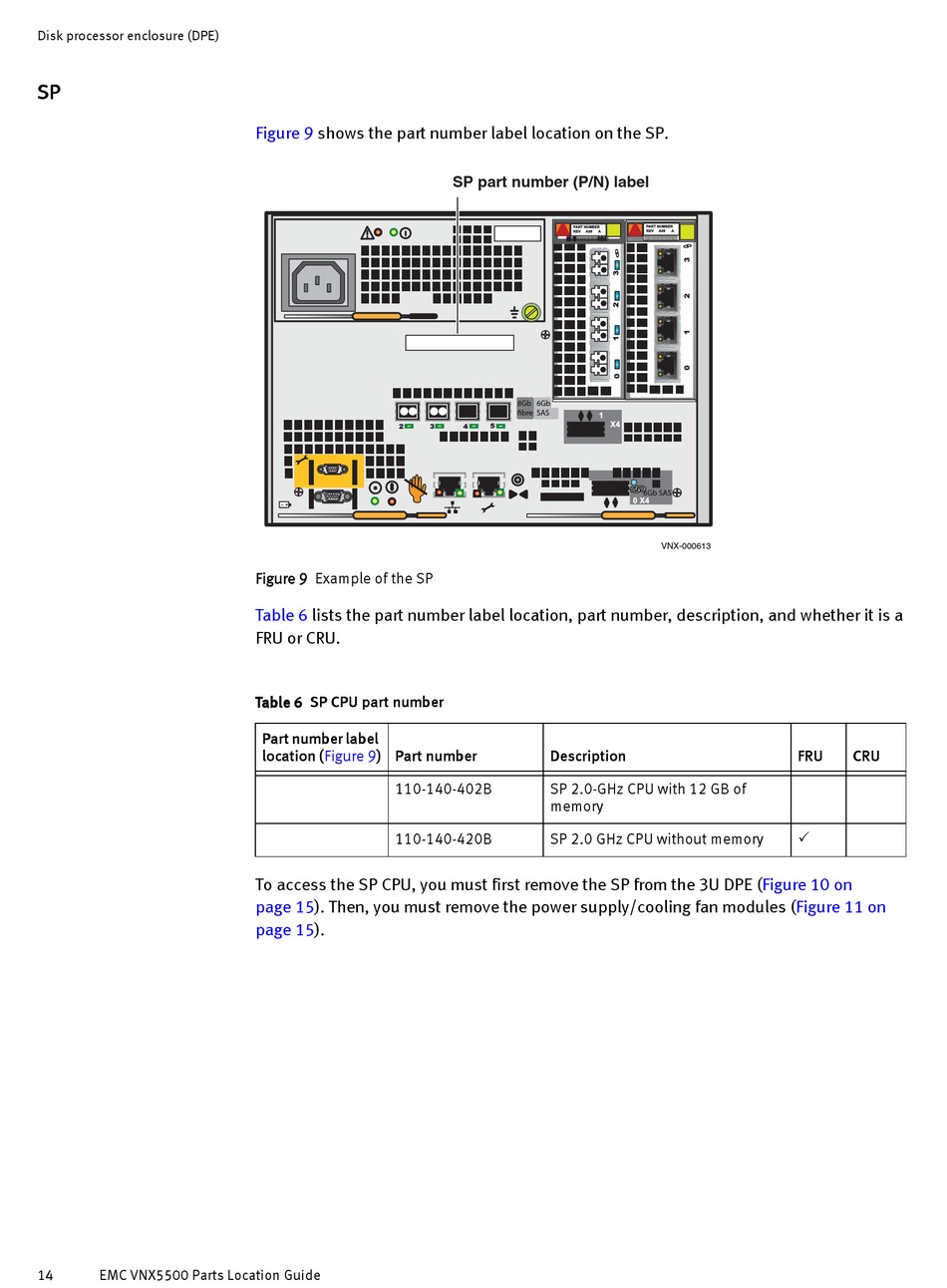

Figure 9 shows the part number label location on the SP.
2 3
Figure 9 Example of the SP
Table 6 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 6 SP CPU part number
Part number label
location (Figure 9) Part number
110-140-402B
110-140-420B
To access the SP CPU, you must first remove the SP from the 3U DPE
page 15). Then, you must remove the power supply/cooling fan modules
page 15).
SP part number (P/N) label
PART NUMBER
REV A09 A
8Gb 6Gb
fibre SAS
1
X4
5
4
Description
SP 2.0-GHz CPU with 12 GB of
memory
SP 2.0 GHz CPU without memory
PART NUMBER
REV A09 A
6Gb SAS
0 X4
VNX-000613
FRU

(Figure 10 on
(Figure 11 on
CRU
