Control Station - EMC VNX5500 Parts Location Manual

Control Station

Control Station
16 EMC VNX5500 Parts Location Guide
SP Power supply/cooling module
SP
part number (P/N) label

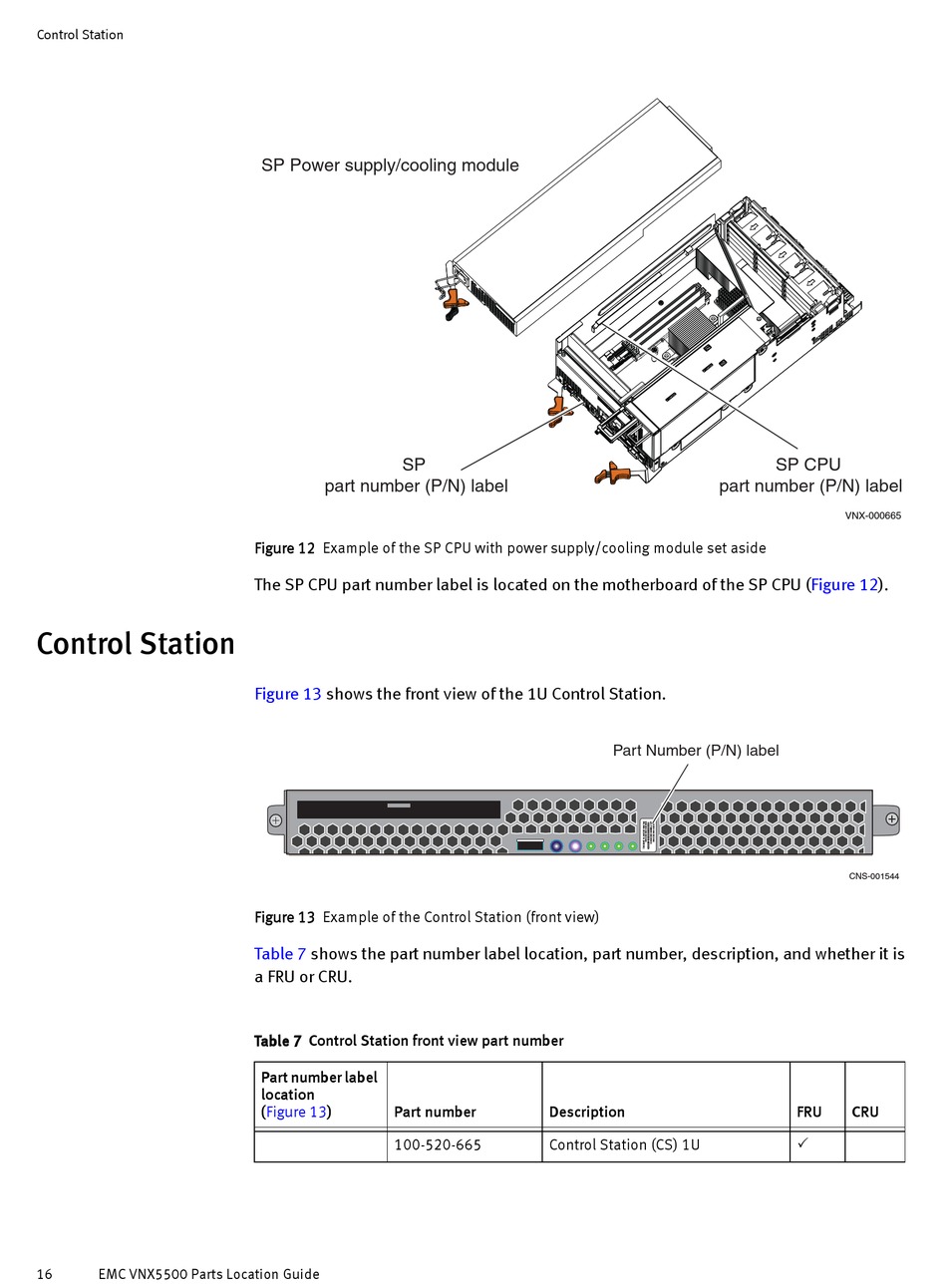

Figure 12 Example of the SP CPU with power supply/cooling module set aside
The SP CPU part number label is located on the motherboard of the SP CPU
Figure 13 shows the front view of the 1U Control Station.
Figure 13 Example of the Control Station (front view)
Table 7 shows the part number label location, part number, description, and whether it is
a FRU or CRU.
Table 7 Control Station front view part number
Part number label
location
(Figure 13) Part number
100-520-665
part number (P/N) label
Part Number (P/N) label
Description
Control Station (CS) 1U
SP CPU
VNX-000665
(Figure 12).
CNS-001544
FRU CRU

