DPE 3U, 25 (2.5-inch) disk drive

Figure 6 shows the front view of the DPE 3U, 25 (2.5-inch) disk drives.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module
Part Number Label
0
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

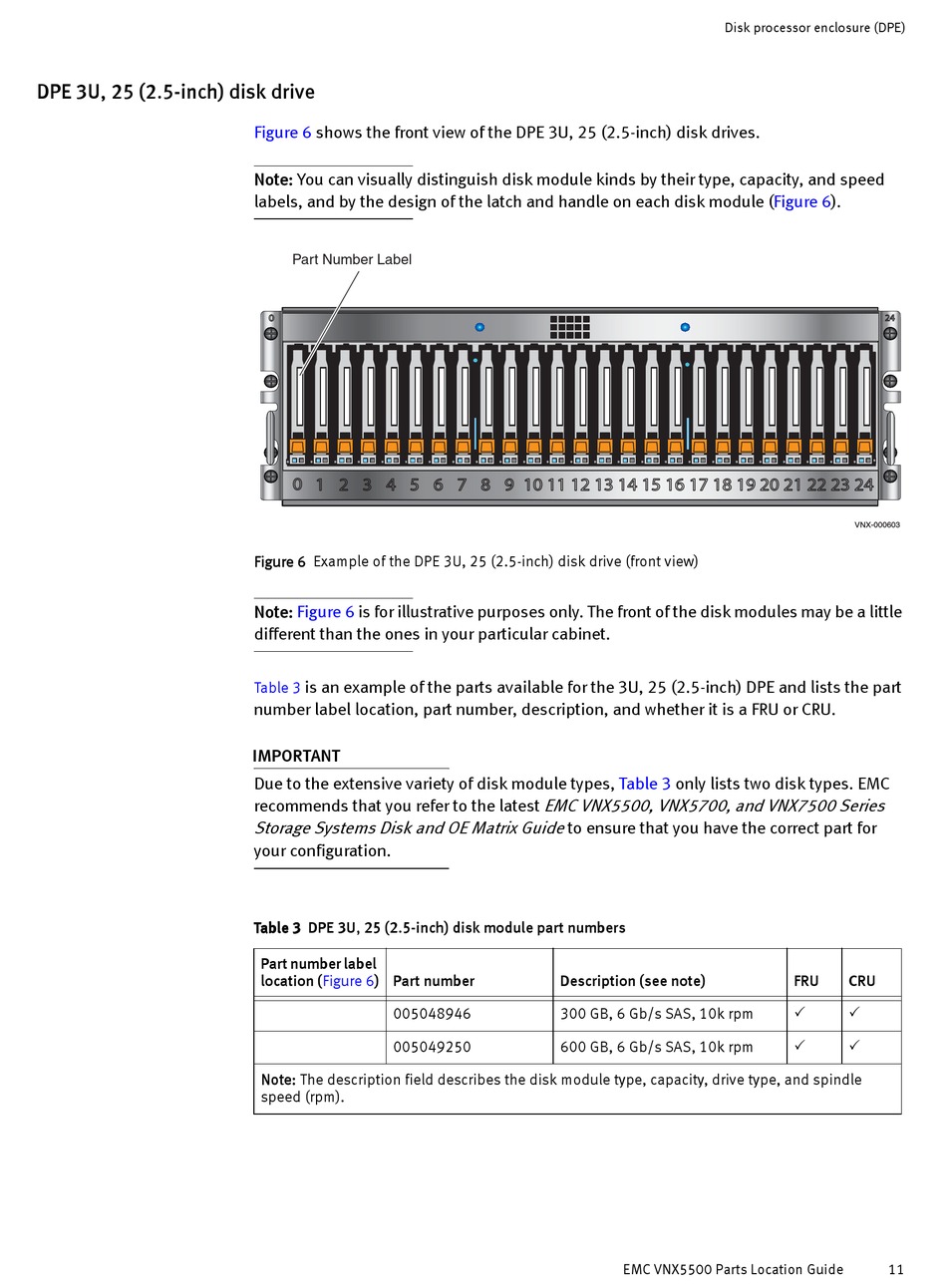

Figure 6 Example of the DPE 3U, 25 (2.5-inch) disk drive (front view)
Note: Figure 6 is for illustrative purposes only. The front of the disk modules may be a little
different than the ones in your particular cabinet.
is an example of the parts available for the 3U, 25 (2.5-inch) DPE and lists the part
Table 3
number label location, part number, description, and whether it is a FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types,
recommends that you refer to the latest
Storage Systems Disk and OE Matrix Guide
your configuration.
Table 3 DPE 3U, 25 (2.5-inch) disk module part numbers
Part number label
location (Figure 6) Part number
005048946
005049250
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
Table 3 only lists two disk types. EMC
EMC VNX5500, VNX5700, and VNX7500 Series
to ensure that you have the correct part for
Description (see note)
300 GB, 6 Gb/s SAS, 10k rpm
600 GB, 6 Gb/s SAS, 10k rpm
EMC VNX5500 Parts Location Guide
Disk processor enclosure (DPE)
(Figure 6).
24
VNX-000603
