Configuration; Osd Color (On-Screen Display); Internal Patterns - Barco Data 8200 Owner's Manual

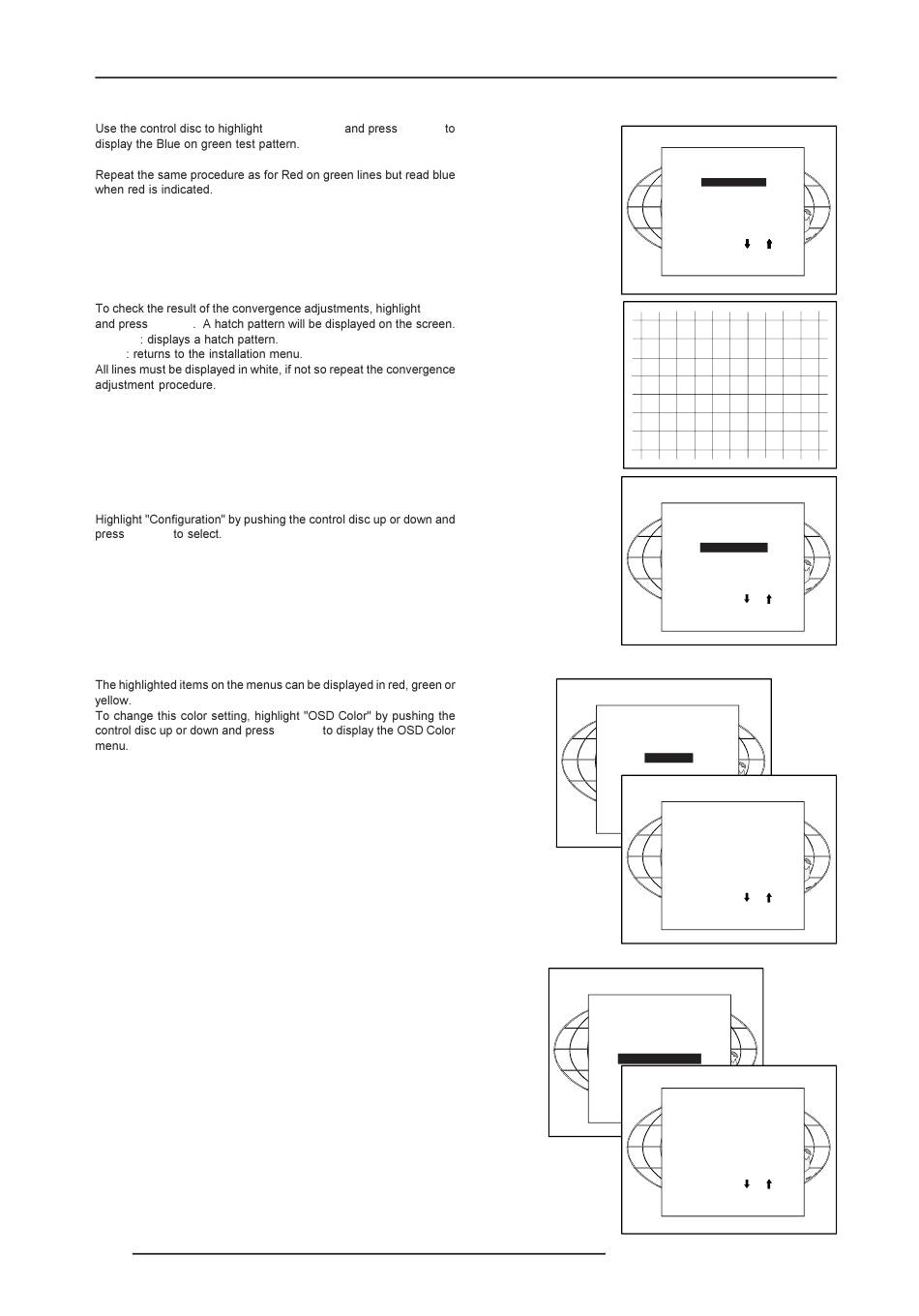

Installation Mode
Blue on green convergence.
Blue on green
ENTER
ENTER
EXIT

Configuration

ENTER
For more information, see Projector configuration in chapter 4 :
'Installation Set Up'.

OSD color (On-Screen Display)

Internal Patterns

The projector is equipped with different internal patterns which can be
used for measurment purposes.
Highlight "Internal Patterns" by pushing the control disc up or down
and press ENTER to display the Internal Pattern selection menu.
The following test pattern are available :
- Color Bars
- Multiburst
- Checker Board
- Purity
- Page Char (one page with the same character)
- Alpha-numeric characters
Each pattern (except Purity) can be inverted by pressing ENTER.
For Page Char, the next or previous character can be selected by
pushing the control disc up or down.
To return to the normal pattern, press EXIT.
9-4
All manuals and user guides at all-guides.com
ENTER
Hatch
ENTER
CONVERGENCE
GREEN
BLUE ON GREEN
RED ON GREEN
HATCH
Select with or
then <ENTER>
<EXIT> to return.
INSTALLATION
INPUT SLOTS
CONVERGENCE
CONFIGURATION
OSD COLOR
INTERNAL PATTERNS
Select with or
then <ENTER>
<EXIT> to return.
INSTALLATION
INPUT SLOTS
CONVERGENCE
CONFIGURATION
OSD COLOR
INTERNAL PATTERNS
OSD COLOR
HIGHLIGHTED ITEM
RED
GREEN
YELLOW
Select with or
then <ENTER>
<EXIT> to return.
INSTALLATION
INPUT SLOTS
CONVERGENCE
CONFIGURATION
OSD COLOR
INTERNAL PATTERNS
Select with or
INTERNAL PATTERNS
then <ENTER>
<EXIT> to return.
COLOR BARS
MULTIBURST
CHECKER BOARD
PURITY
PAGE CHAR
ALPHA-NUMERIC CHARS
Select with or
then <ENTER>
<EXIT> to return.
5975249 BARCOVISION 8200HD 060598
