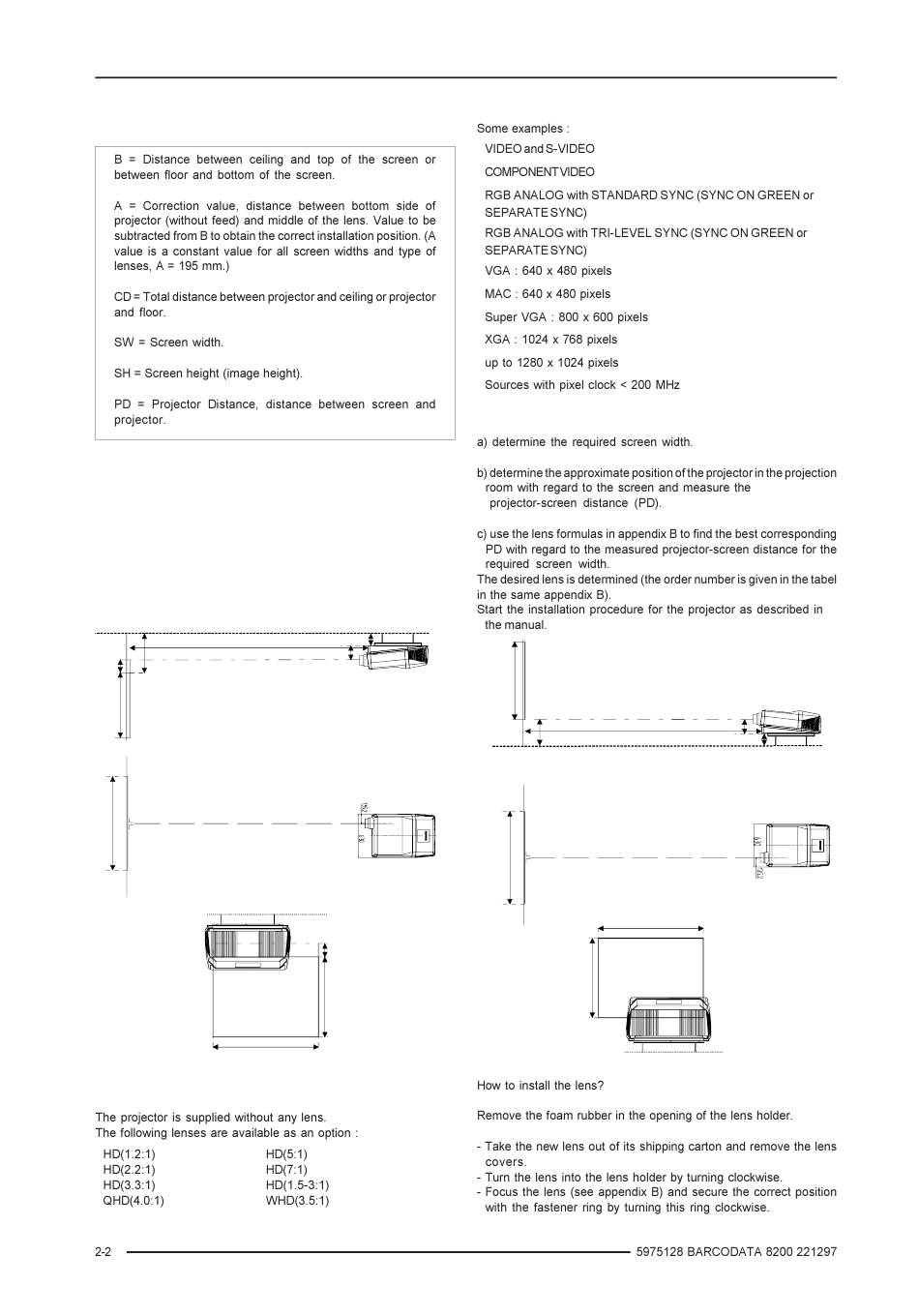

Installation Guidelines

* Where to install the projector?

Definitions of the Abbreviation on drawings
C eiling
B PD
O F O p tica l a xis p ro je ctio n len s
S creen
SH
SID E VIEW
SW
S creen
BO TTO M V IEW
SW
BACK V IE W

* How to install a projection lens?

All manuals and user guides at all-guides.com
C D
A
Projector
C D = B - O F - A
Ceiling
O F
S H
Inputs and computer video format input compatibility :
•
•
•
•
•
•
•
•
•
•
Lens type selection.
SH
Screen
Optical axis projection lens
B PD
Floor
SIDE VIEW
Screen
SW
TOP VIEW
SW
SH
BACK VIEW
CD = B - A
Projector
A
CD
Floor
