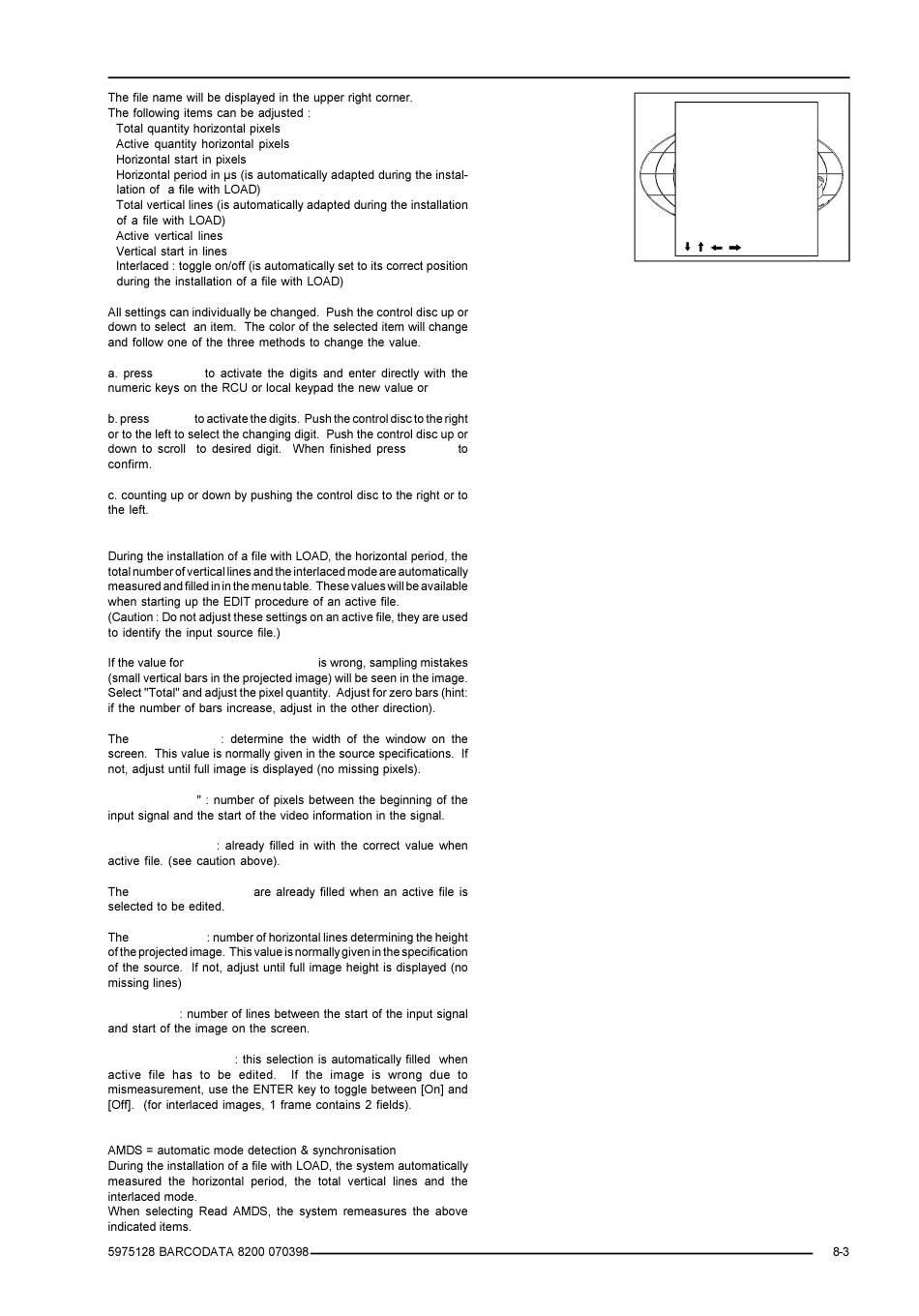

Barco Data 8200 Owner's Manual page 28

ENTER
ENTER
How to find the correct values for the displayed item?
"Horizontal Total Pixels"
"Active Pixels"
"Horizontal Start
"Horizontal Period"
"Vertical Total Lines"
"Active Lines"
Vertical start
Interlaced [On] or [Off]
Read AMDS
All manuals and user guides at all-guides.com
ENTER
Random Access Adjustment Mode
EDIT FILE xga.s30
HORIZONTAL
T O T A L 1344 PIXELS
ACTIVE 1024 PIXELS
S T A R T 296 PIXELS
PERIOD 20.678 µS
VERTICAL (FIELD)
T O T A L 806 LINES
ACTIVE 768 LINES
S T A R T 36 LINES
INTERLACED [OFF]
READ AMDS
OPTIONS
, , , <ENTER>, <EXIT>
