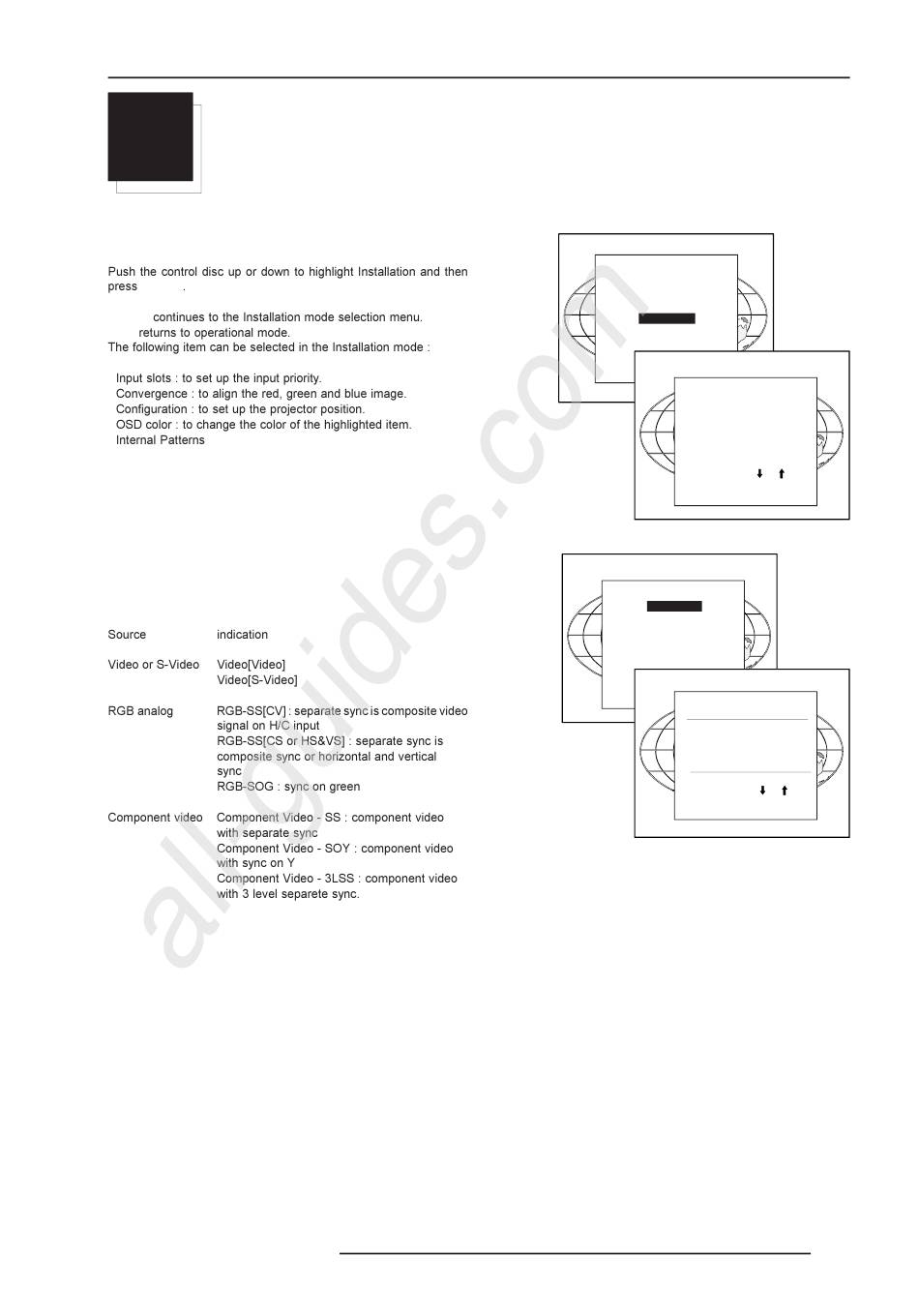

INSTALLATION MODE

Starting up the Installation Mode

ENTER
ENTER
EXIT

Input Slots

Highlight Input Slots by pushing the control disc up or down and press
ENTER.
The internal system will scan the input slots and displays the result
in the Input Slots menu.
Component Video - 3LSOY : component
video with 3 level sync on Y.
RGB analog with
tri-level sync RGB3L-SS : RGB with separate Tri level sync
RGB3L-SOG : RGB with Tri level sync on
green
If a RCVDS (switched on) or VS05 is connected to the projector, it will
be also indicated on the menu by adding +800 peripheral. If no 800
peripheral indication is made on the menu, there are still two possi-
bilities :
- no RCVDS or VS05 connected or
- RCVDS is switched off.
When a 800 peripheral is connected to the projector, the input slots
are not accessible with the control disc to toggle their function.
