Chapter 4. Basic instructions
4.6.2

OUT Sxx.xx

OUT S
Instructions
M P
OUT S
D
* K10S1
K10S / K30S / K60S
K200S / K300S / K1000S
1) Function
Last-in priority control
-
When the input condition turns on, the specified step controller is switched on and keep the on
-
status until other step controller of same group turns on.
Only one step controller turns on even if multiple input conditions turn on. At this time, the last
-
turned on step controller has the highest priority.
The Sxx.00 is initialization step and the Sxx.xx group will be initialized by switching on the Sxx.00.
-
When the CPU is turned to RUN mode, the Sxx.00 is set by default.

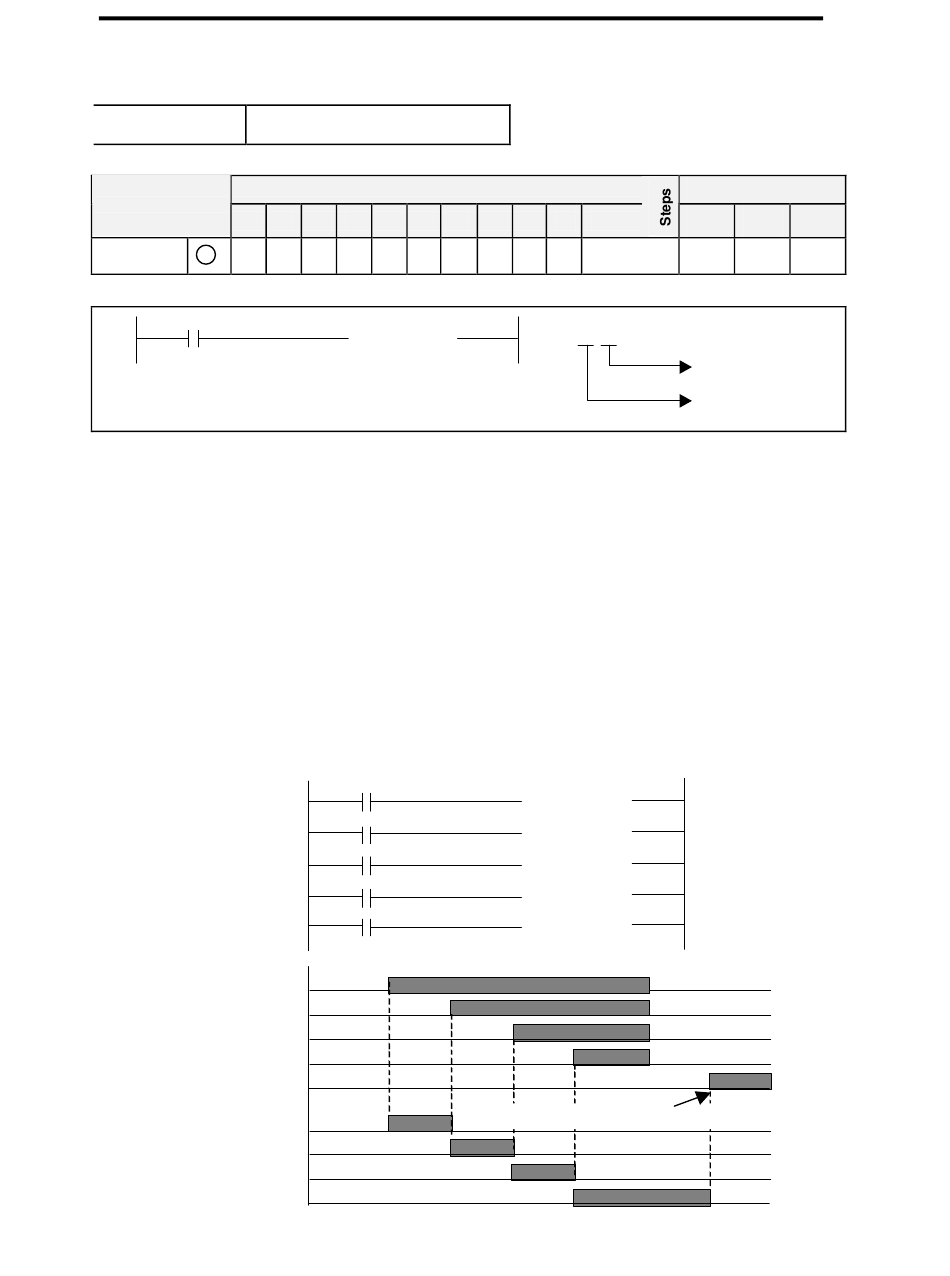

2) Program example
[ Program ]
Reset
P020
[ Time chart ]
P021
P022
P023
P024
S02.01
S02.23
S02.98
S02.04
Available Device
K L F T C S
O
( Sxx.xx )
: 0 ~ 15
: 0 ~ 31
: 0 ~ 99
P020
P021
P022
P023
P024
4-25
# Error
D D Integer
(F110)
2
S xx.xx
( S02.01 )
( S02.23 )
( S02.98 )
( S02.04 )
( S02.00 )
S02.xx reset input condition
Flag
Zero Carry
(F111) (F112)
Step No. (00 ~ 99)
Group (00 ~ 99*)
