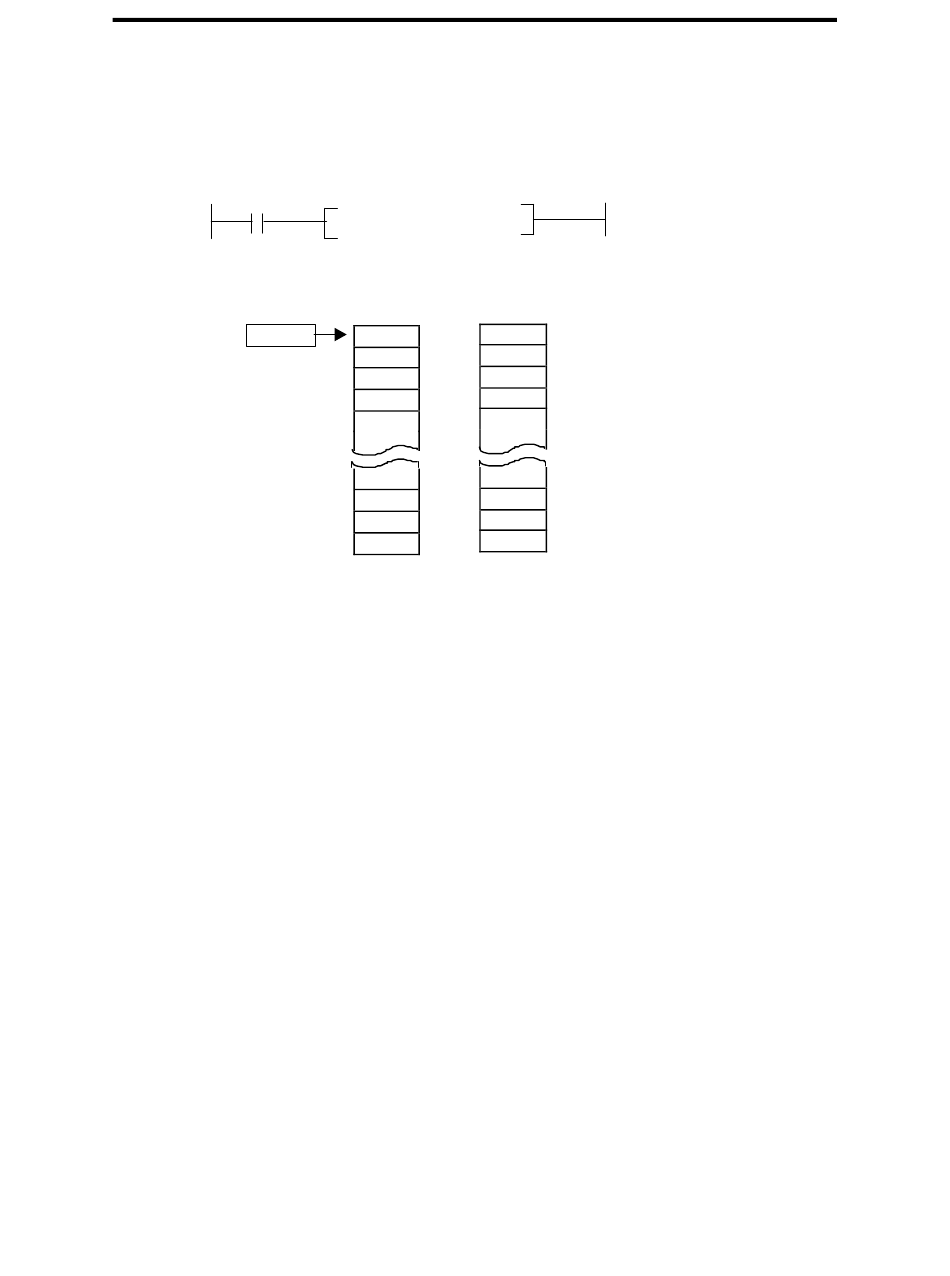

2) Program example
- While P020 is on, compare the content of D0001 with 16 words from M00 (M00 ~ M15) and output
the comparison result to P06 word (P060 ~ P06F).
P020
D0001 hBCDE
TCMP D0001 M000 P06
hBCDE
M000
h1234
hBCDE
M002
h0000
M004
hBCDE
hB C D E
M012
h00FF
M013
hBCDE
M014
h0000
M015
5-20
Chapter 5. Application instructions
1
P060
0
P061
1
P062
0
P063
1
P064
1
P06C
0
P06D
1
P06E
0
P06F
