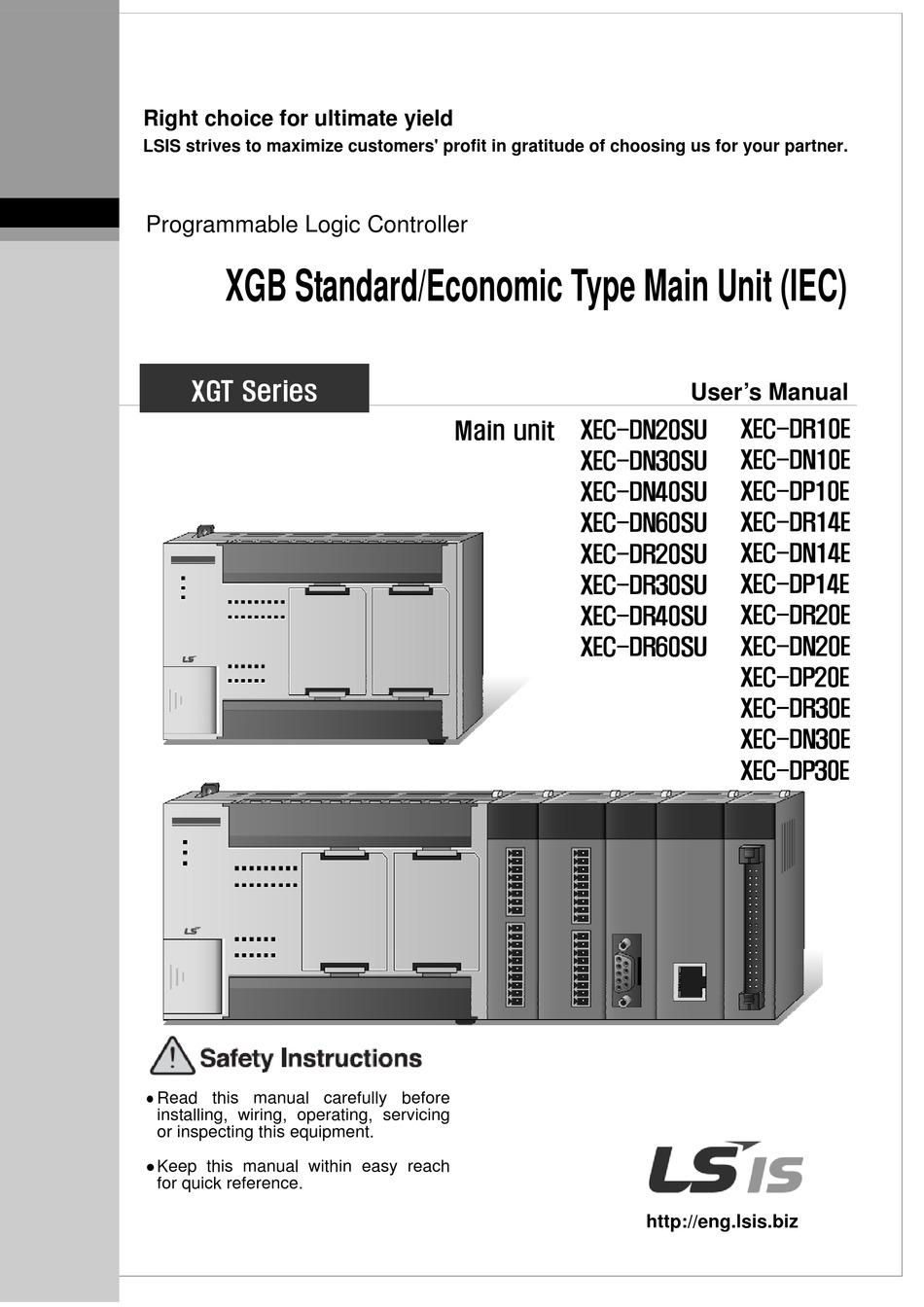

Right choice for ultimate yield
LSIS strives to maximize customers' profit in gratitude of choosing us for your partner.

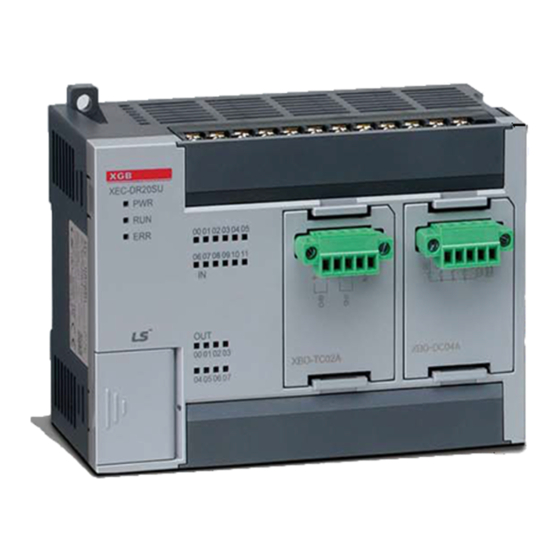

Programmable Logic Controller
XGB Standard/Economic Type Main Unit (IEC)
XGT Series
Read this manual carefully before
installing, wiring, operating, servicing
or inspecting this equipment.
Keep this manual within easy reach
for quick reference.
XEC-DN20SU
Main unit
XEC-DN30SU
XEC-DN40SU
XEC-DN60SU
XEC-DR20SU
XEC-DR30SU
XEC-DR40SU
XEC-DR60SU
User's Manual
XEC-DR10E
XEC-DN10E
XEC-DP10E
XEC-DR14E
XEC-DN14E
XEC-DP14E
XEC-DR20E
XEC-DN20E
XEC-DP20E
XEC-DR30E
XEC-DN30E
XEC-DP30E
http://eng.lsis.biz
