4. The message Feed calibration gas will be displayed. At this point, attach the
calibration gas canister to the regulator and turn it on. Increasing gas values will appear
in the window as the Gas Module samples the calibration gas.

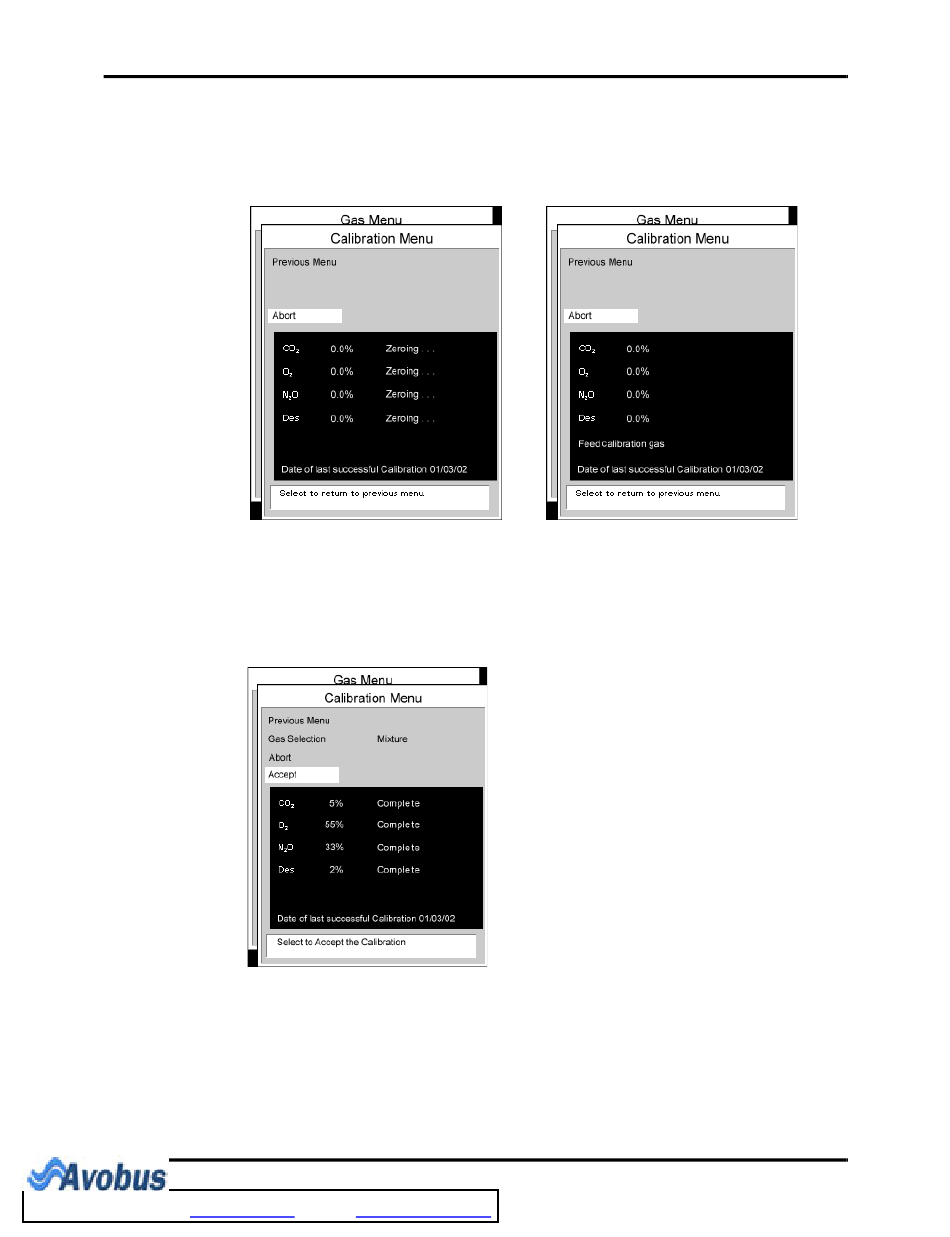

FIGURE 2-8 Gas Calibration Menu
5. When calibration is complete, the Feed calibration gas message will be removed
from the display and the message Complete will be displayed next to each value that
was successfully measured. If at least one gas was successfully measured, the Accept
menu choice will become available. If the values are acceptable, select Accept. To
cancel calibration and re-install the previous calibration values, select Abort.
FIGURE 2-10 Gas Calibration Menu
NOTE: When the "Accept" menu choice is selected, the message
"Disconnect calibration gas." will be displayed. To avoid
premature emptying of the gas canister, always remove the
regulator at the end of the procedure.
