Summary of Contents for Mindray BS-200

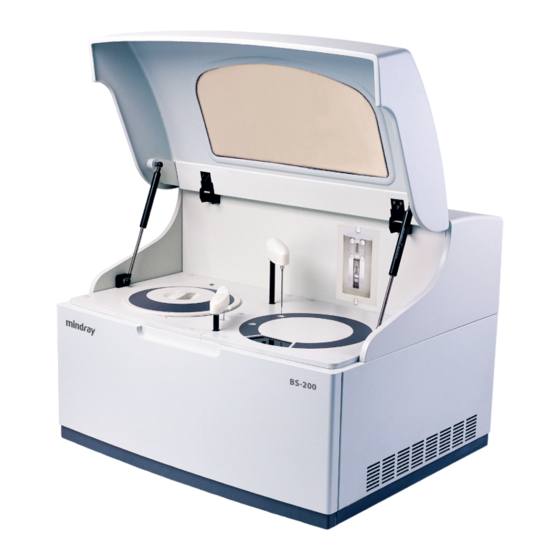

- Page 1 BS-200 Chemistry Analyzer Operation Manual...
- Page 3 This manual may refer to information protected by copyrights or patents and does not convey any license under the patent rights of Mindray, nor the rights of others. Mindray does not assume any liability arising out of any infringements of patents or other rights of third parties.
- Page 4 Mindray or repairs by people other than Mindray authorized personnel.
- Page 5 Preface Before using the BS-200 Chemistry Analyzer, please read this operation manual thoroughly for relevant operation instructions. Who Should Read This Manual This manual is written for clinical laboratory professionals to perform daily operating tasks; perform system maintenance and troubleshooting;...
- Page 6 Preface When you see … Then … Read the statement following the symbol. The CAUTION: statement is alerting you to a possibility of system damage or unreliable results. Read the statement following the symbol. The NOTE: statement is alerting you to information that requires your attention.
- Page 7 Preface ON (Power) OFF (Power) Graphics All graphics, including screens and printout, are for illustration purpose only and must not be used for any other purposes. EC Representative Name: Shanghai International Holding Corp. GmbH (Europe) Eiffestrasse 80 D-20537 Hamburg Germany Address: Phone: +49 40 2513174...
- Page 8 Ignoring any of these safety precautions may lead to personal injury or equipment damage. WARNING: If the system is used in a manner not specified by Mindray, the protection provided by the system may be impaired. Preventing Electric Shock Please observe the following instructions to prevent electric shock.
- Page 9 Preface Preventing Infection Please observe the following instructions to protect against the biohazardous infection. BIOHAZARD: Inappropriately handling samples may lead to biohazardous infection. Do not touch the sample, mixture or waste with your hands. Wear gloves and lab coat and, if necessary, goggles. In case your skin contacts the sample, follow standard laboratory safety procedure and consult a doctor.
- Page 10 Preface Precautions on Use To use the BS-200 Chemistry Analyzer safely and efficiently, please pay attention to the following operation notes. Intended Use WARNING: The BS-200 Chemistry Analyzer is a chemistry system that is designed for the in vitro quantitative determination of clinical chemistries in serum, plasma, urine or CSF samples.
- Page 11 Preface Operating the System CAUTION: Operate the system strictly as instructed by this manual. Inappropriate use of the system may lead to unreliable test results or even equipment damage or personal injury. Before using the system for the first time, run the calibration program and QC program to make sure the analyzer is in proper state.
- Page 12 Consult reagent suppliers, Mindray Mindray-authorized distributor for details, if you are not sure about your reagent choice. Store and use the reagents, calibrators and controls strictly as instructed by the suppliers. Otherwise, you may not obtain reliable results or best performance of the system.
- Page 13 The system automatically stores the data to the built-in hard disk. However, data loss is still possible due to mis-deletion or physical damage of the hard disk. Mindray recommends you to regularly back up the data to such medium as CDs.
- Page 15 Contents Preface............................1 Who Should Read This Manual ..................... 1 What Can You Find in This Manual..................1 Conventions Used in This Manual ..................1 Safety Precautions ......................... 4 Precautions on Use........................ 6 System Description ......................1-1 Hardware Introduction ..................1-1 1.1.1 Analyzing Unit ..................
- Page 16 Contents Advanced Operations....................... 4-1 Sample Request ....................4-1 4.1.1 Sample Information ................4-3 4.1.2 Delete a Sample................... 4-5 4.1.3 Change Position ................... 4-6 4.1.4 Requesting Samples or Modifying Information ........4-7 QC Request ......................4-7 Start ........................4-10 Probe Stop ......................4-11 Stop........................4-12 Current Results....................
- Page 17 Contents Preparation ......................5-1 Daily Maintenance ....................5-2 5.2.1 Checking Remaining Deionized Water..........5-2 5.2.2 Emptying Waste Tank................5-3 5.2.3 Checking Connection of Deionized Water..........5-3 5.2.4 Checking Connection of Wastewater ........... 5-4 5.2.5 Checking Syringe ................. 5-5 5.2.6 Checking Probe..................5-6 5.2.7 Checking Mixing Bar ................
- Page 19 System Description This chapter includes the following two sections: Hardware Introduction Software Introduction The BS-200 Chemistry Analyzer is a chemistry system that is designed for the in vitro quantitative determination of clinical chemistries in serum, plasma, urine or CSF samples. NOTE: Not all the tests the reagents claim capable of analyzing can be analyzed on the system.
- Page 20 System Description Figure 1-1 Analyzing unit Cover Syringe Dispenser Mixer Reaction Disk MAIN POWER Sample/Reagent Disk Power Upper Cabinet Lower Cabinet (optional) 1.1.1.1 Sample/Reagent Disk The sample/reagent disk holds sample tubes and reagent bottles. Figure 1-2 Sample/Reagent disk Sample/reagent Disk The disk is composed of two circles –...
