General Product Description

1.0
1.1

Front Panel

2

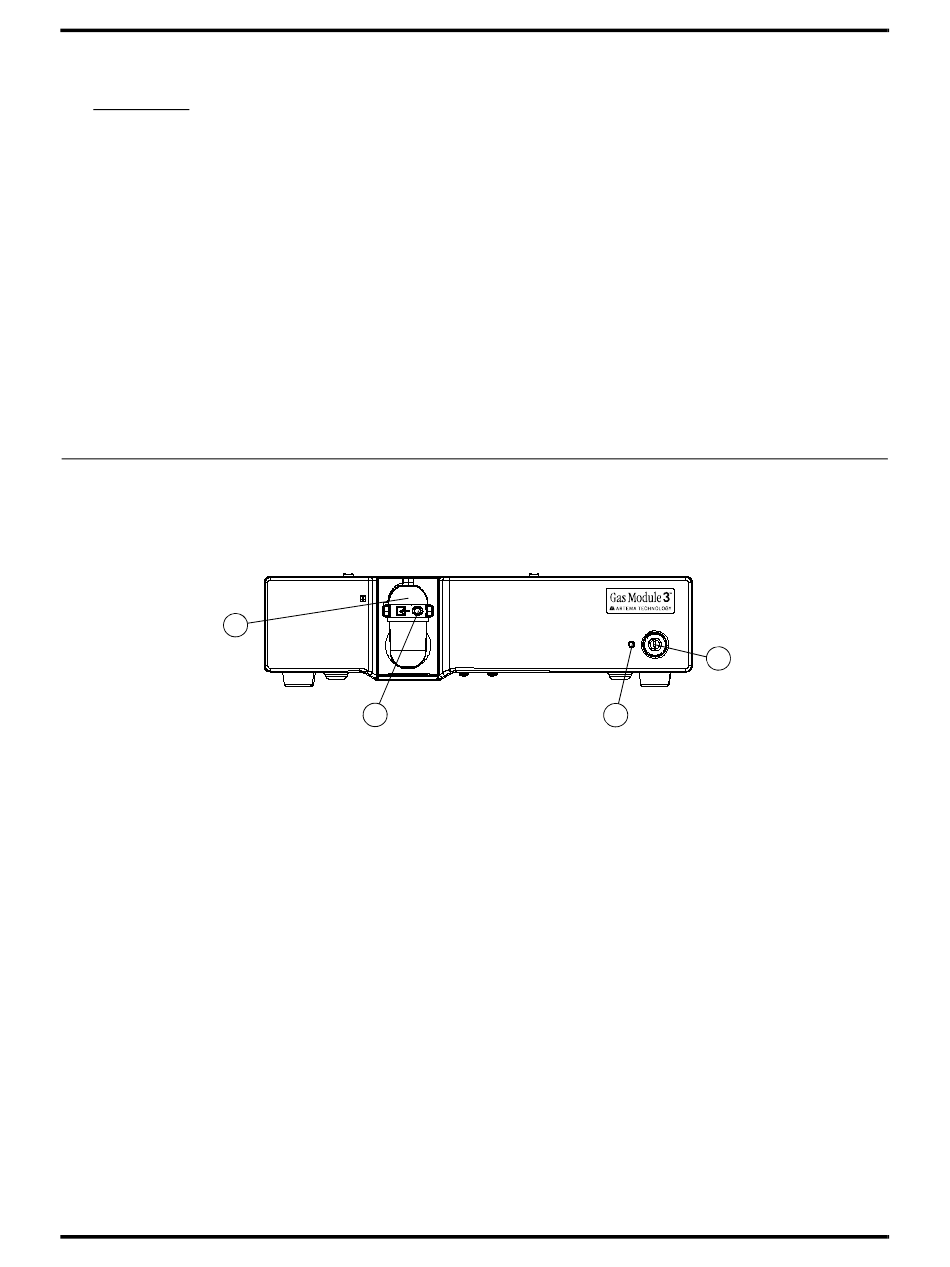

FIGURE 1-1 Gas Module 3 - Front Panel
1. Input Port
This port is used to connect the sampling tubing to the Gas Module 3.
2. Water Trap Assembly (includes Water Trap Reservoir)
(Adult/Pediatric P/N 0202-00-0182-10, Neonate P/N 0202-00-0181-10)
The Water Trap Assembly is used to capture moisture drawn in with the patient sample. The
Water Trap Reservoir must be emptied and rinsed (with water only) whenever more than half
full or whenever changing patients. Refer to section 3.1 for more details.
3. Power Indicator Lamp
This lamp illuminates when the Power Switch is in the ON position.
4. Power Switch
A switch used to power the unit ON and OFF.
Gas Module 3 Operating Instructions
1
0070-10-0696-02
4
3
1 - 1
