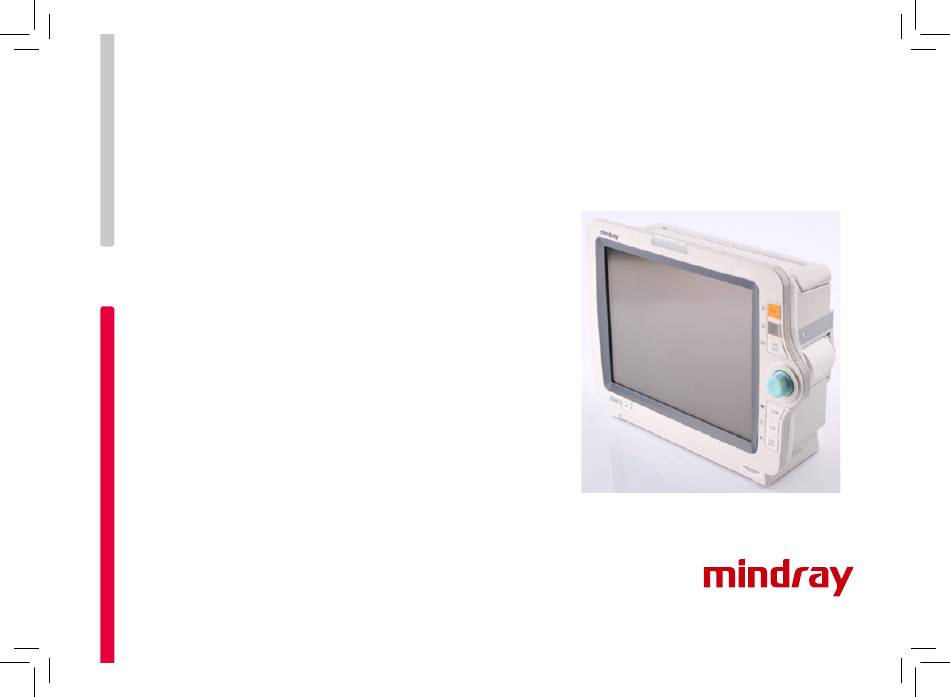

- Page 1 Series Patient Monitor Quick Guide...
- Page 2 If you have any question, please contact us. Comply with the requirements of the Council Directive 93/42/EEC. 0123 © 2011 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved. Content in this guide is subject to change without prior notice.
-
Page 3: Front View

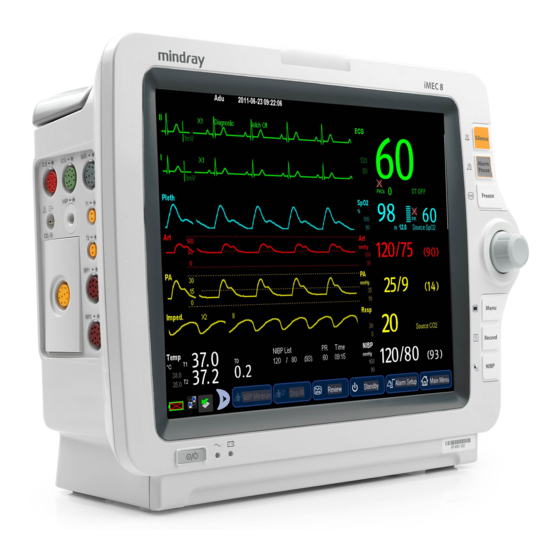

Product Overview Front View 1. Power On/Off Switch Press the switch to turn on the patient monitor. When the monitor is on, pressing and holding this switch turns the patient monitor off. An indicator is built in this switch. It turns on when the patient monitor is on and turns off when the patient monitor is off. - Page 4 Product Overview Side View (iMEC 8) Side View (iMEC 12/iMEC 10) 1. Recorder 2. Battery compartment 3. Connectors for parameters...
- Page 5 Product Overview Rear View (iMEC 12/iMEC 10) Rear View (iMEC8) 1. Equipotential Grounding Terminal 2. AC Power Input 3. Multifunctional Connector 4. USB Connector 5. VGA Connector 6. Network Connector...
-
Page 6: Display Screen
Basic Operations Display Screen Patient Information Area Alarm Symbols Technical Alarm Area Physiological Alarm Area Waveform Area Parameter Area A Parameter Area B 8. Prompt Message Area 9. QuickKeys area Using the Touchscreen Select screen items by pressing them di- rectly on the patient monitor’s screen. -
Page 7: Setting The Screen
Basic Operations Setting the Screen You can enter the [Screen Setup] window as shown below by selecting the [Main Menu]→[Screen Setup]→[Screen Layout >>]. In this window, you can allocate the positions of the parameters and waveforms. The parameters or waveforms whose positions are not allocated will not be displayed. -
Page 8: Using The Main Menu
Basic Operations Using the Main Menu To enter the main menu, select the [Main Menu] QuickKey on the monitor’s screen or the hardkey on the monitor’s front. Most of monitor operations and settings can be performed through the main menu. Other menus are similar to the main menu and contain the following parts: Heading: gives a sum-up for the current... -
Page 9: Getting Started
Basic Operations Getting Started Turning Power On Disconnecting from Power Before you start to make measurements, check the patient To disconnect the patient monitor form the AC power monitor for any mechanical damage and make sure that source, follow this procedure: all external cables, plug-ins and accessories are properly Confirm that the patient monitoring is finished. -
Page 10: Changing General Settings
Basic Operations Changing General Settings Setting up a Monitor Showing/Hiding the Help In situations where you install a patient monitor or change the patient monitor’s application site, you The patient monitor provides online help information. The need to setup the patient monitor as follows: user can display or hide the help as required. -
Page 11: Adjusting Volume
Basic Operations Adjusting Volume Managing Configurations Alarm Volume Entering the [Manage Configuration] Menu Select the [Alarm Setup] QuickKey→[Others], or Select [Main Menu]→[Maintenance >>]→ [Main Menu]→[Alarm Setup >>]→[Others]. [Manage Configuration >>]. S e l e c t [ A l m Vo l u m e ] a n d t h e n s e l e c t t h e Enter the required password and then select [Ok]. - Page 12 Basic Operations 3. Select [Alarm Setup >>], [Screen Setup >>] or To import the configuration on the USB drive to the [Parameter >>] to enter the corresponding menu monitor: in which settings can be changed. The changed 1. Connect the USB drive to the monitor’s USB port. items of alarm setup will be marked in red.
-
Page 13: Starting And Stopping Recordings
Record The thermal recorder records patient information, measurement numerics, up to three waveforms, etc. Starting and Stopping Recordings To manually start a recording: Select the hardkey on the front of either the patient monitor or the recorder module. Select the [Record] button from the current menu or window. ... - Page 14 Battery The battery is charged whenever the patient monitor is connected to an AC power source regardless of whether or not the patient monitor is currently on. Whenever the AC power is interrupted during patient monitoring, the patient monitor will automatically run power from the internal battery.
- Page 16 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Mindray Building, Keji 12th Road South, Hi-tech Industrial Park, Nanshan, Shenzhen 518057 P.R. China Tel: +86 755 26582888 Fax: +86 755 26582680 www.mindray.com...
