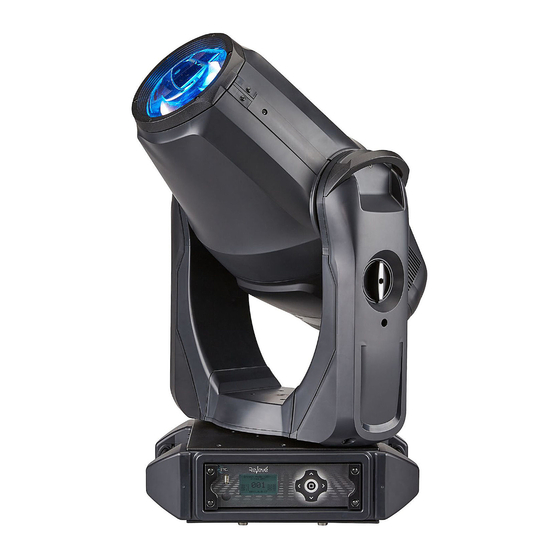

ETC Releve Spot User's Operation Manual

Hide thumbs Also See for Releve Spot:
Table of Contents

Advertisement

Quick Links

Download this manual
Relevé Spot
User Operations Manual
Version 1.1
Part Number: 2510M1200-1.1.0 Rev: B
Released: 2019-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Releve Spot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC Releve Spot

Summary of Contents for ETC Releve Spot

  • Page 1 Relevé Spot User Operations Manual Version 1.1 Part Number: 2510M1200-1.1.0 Rev: B Released: 2019-08...
  • Page 2 ETC intends this document, whether printed or electronic, to be provided in its entirety. This product is intended for professional use only. Read this entire document before using the product.

  • Page 3: Table Of Contents

    Table of Contents Introduction About This Manual Other References Document Conventions Help from Technical Services Warranty Service Compliance Declaration of Conformity Safety Notices Storage and Transporting Unpacking Instructions Overview LED Source Color System Optical Iris Rotating Gobos Ani-gobo Wheel Frost Pan and Tilt Movement Pan and Tilt Locks Control DMX512-A...
  • Page 4 Display Button Controls Auxiliary Battery Power Requirements Input Power Voltage Range Power Receptacle/Connector Specification Environment Acoustic Performance Weights and Dimensions Weight Dimensions Mounting Safety Luminaire Overview Top Level Sub Assemblies Installation Attach Clamp Mounting Rails Spacing Requirements Floor Mounting Rigging Connect Data and Power Connect DMX-512 Terminate DMX-512...
  • Page 5 Button Controls Menu Navigation Status Screen Menu System Control Settings Defaults Options Menu Pan/Tilt LED Output Freq Display Reset Defaults Home/Test Re-home Fixture Fixture Test Lens Cleaning Access Diagnostics DMX Monitor Board Firmware Update Firmware Update Firmware with USB Drive Update Firmware with Push Firmware Feature Advanced Operation...
  • Page 6 Maintenance Clean the Fan Filter Remove and Reinstall Covers Remove the Head Covers Reinstall the Head Covers Clean the Lenses Replace the Effects Module Replace the Optics Module Remove the Optics Module Install the Optics Module Remove Clamp Mounting Rails DMX Channel Map Standard Direct...

  • Page 7: Introduction

    For your safety, read this entire manual prior to installing, operating, or servicing the Relevé Spot luminaire. Other References Relevé Spot videos are available for viewing from the ETC website etcconnect.com/ReleveSpot. Document Conventions This document uses the following conventions to draw your attention to important information.

  • Page 8: Help From Technical Services

    ETC support website at support.etcconnect.com. If none of these resources is sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all ETC offices outside of normal business hours.

  • Page 9: Warranty Service

    Warranty Service ETC warranty terms and conditions are available on the ETC website etcconnect.com. Compliance Relevé Spot has been tested to, is listed under, or complies with the following regulatory compliance and standards: cETLus Tested to UL 1573 and CSA C22.2 No. 166 - Stage and Studio Luminaires with additional •...

  • Page 10: Declaration Of Conformity

    Declaration of Conformity EC DECLARATION OF CONFORMITY We, Electronic Theatre Controls Limited declare under sole responsibility that the product(s): Product name: Relevé Automated luminaire Product type/model: Relevé RELSPOT to which this declara on relates is/are in conformity with the following Direc ves by the applica on of the quoted Standards.

  • Page 11: Safety Notices

    The safety cable must, at a minimum, hold ten times the weight of the luminaire. ETC offers a suitable safety cable, which is available separately. Order part number 7060A1022.

  • Page 12: Overview

    Overview The Relevé Spot automated luminaire features: LED Source ® Features ColorSource Deep Blue array utilizing 52 Lumileds LUXEON C LEDs in Red, • Green, Indigo, and Lime Maximum of 6,000 field lumens at full power at any zoom position when operated within •...

  • Page 13: Iris

    44 mm image size • Unlimited clockwise and counterclockwise • rotation with variable speed A gobo carrier kit (RELGOBOKIT / ETC part • number 2510K1000) is available for purchase from ETC for customer-installed gobos, and Replace a Gobo on page 39 custom gobos are available at approved vendors. See Relevé...

  • Page 14: Frost

    Frost Variable frost softens the beam edges smoothly and evenly. • Utilizes Rosco Quarter Hamburg (R132) as standard. Rosco R114 and R119 are available • from ETC as field-installed accessory option kits. Model Part Number Description RELFROST114 2510K1001 Rosco R114 (Hamburg Frost)

  • Page 15: Pan And Tilt Movement

    Pan and Tilt Movement 540 degree pan and 270 degree tilt. • 180 degree pan and tilt within 2.0 seconds. • 16-bit operation for smooth and accurate movement. • DMX Channel Mode on page 37 Absolute position feedback and correction. • Menu options provide the ability to restrict pan and tilt range for use in tight spaces.

  • Page 16: Control

    DMX Thru receptacle. A 5-pin XLR DMX terminator is an accessory option available from ETC (order part number SGE1507). ETC recommends using Belden 9729 (or equivalent) cable for a reliable DMX control system. Note: Do not use microphone cable or other cable with characteristics that are non- equivalent to the specified Belden 9729.

  • Page 17: Button Controls

    Button Controls Relevé Spot features a five-button user interface. Use the button controls to access and navigate the onboard menu. Button controls reorient their function to match the orientation of the display. Auxiliary Battery The auxiliary battery recharges over time (trickle charge) when power is applied to the •...

  • Page 18: Power Receptacle/Connector Specification

    Luminaires per Circuit (20 A) 4 luminaires at 100 VAC • 5 luminaires at 120 VAC • 10 luminaires at 240 VAC • • Note: Relevé Spot requires power from a non-dimmable source. Consult the upstream breaker trip curve specification for compatibility information with the required input power.

  • Page 19: Acoustic Performance

    The luminaire will not exceed 50 dBA at one meter distance in any direction when the operating temperature is 23°C (73°F); • the luminaire is in continuous operation with mechanical feature movement (pan/tilt, • media, zoom, iris, etc.); and the fan is in Auto mode. • Overview...

  • Page 20: Weights And Dimensions

    Weights and Dimensions Weight The Relevé Spot weighs 67.5 lbs. (30.6 kg) • Dimensions The Relevé Spot rotates within a 24.4 in (62 cm) circular diameter (base luminaire, • excluding any accessories). 23.2 in 58.9 cm 17.2 in 13 in 1.7 in 4.3 cm 33 cm 43.7 cm 13 in...

  • Page 21: Mounting

    Relevé Spot can be yoked in any mounting position using the provided hanging points. Alternatively, the Relevé Spot luminaire can be floor-mounted (placed enclosure-side down on a stage floor). Truss mounting clamps are available from ETC, sold separately. Part Number Description PSF1131 Mega-Coupler™...

  • Page 22: Safety

    The safety cable must, at a minimum, hold ten times the weight of the luminaire. ETC offers a suitable safety cable which is available separately, order part number 7060A1022.

  • Page 23: Luminaire Overview

    Luminaire Overview Top Level Item Description LED Module - includes the LED array and driver board, reflector, and fan assembly Yoke Assembly - includes yoke handles, supporting motor control boards, pan motor, and tilt motor Head - includes the Optics Module, Effects Module, and supporting motor control boards Front lens Enclosure - includes pan tube and power distribution board...

  • Page 24: Sub Assemblies

    Sub Assemblies Head Replacement Item# Name Notes Part Number Rotating Gobo Wheel, Ani-gobo Wheel, Effects Module 2510A2009-CFG Iris assembly Focus and zoom lens assembly, and Frost Optics Module 2510A2008-CFG assembly Relevé Spot User Operations Manual...
  • Page 25 Effects Module The image above depicts the effects module with the enclosure, motors, and motor control board hidden for clarity of the internal features. Item# Description Notes Fixed gobo wheel with six breakup patterns plus an Ani-gobo Wheel open aperture Iris assembly Smooth, stepless iris function Rotating and indexing wheel with five patterns plus...
  • Page 26 Enclosure Replacement Item# Description Notes Part Number Power Input and Thru recept- acles and DMX In and Thru XLR Power Module 2510A2027-CFG receptacles. Installs opposite of the Main Control Module in the enclosure. User interface with display and menu navigation buttons, and Main Control Module 2510A2034-CFG USB port for firmware update.

  • Page 27: Installation

    Installation Attach Clamp Mounting Rails For installation convenience, four hanging points are provided on the enclosure, two each in planes 90 degrees from each other. 10 in 25.4 cm 5 in 12.7 cm Item# Name Part Number Notes Securely install on the provided attach- Clamp Mounting Rails 2510A2017 ment points on the base of the enclosure.

  • Page 28: Spacing Requirements

    Attach the clamp mounting rails to the enclosure. Align the keyed holes of the clamp mounting rail to the attachment points on the enclosure. Each clamp mounting rail should be installed on the same plane and facing the same direction. Slide the clamp mounting rail in place until the locking mechanism is seated and captures the attachment point.

  • Page 29: Rigging

    Connect Data and Power Connect DMX-512 ETC recommends Belden 9729 or equivalent 2-pole twisted, shielded wire. The connectors must be XLR 5-pin female (DMX IN) and XLR 5-pin male (DMX THRU). Following best practices for DMX, a maximum of 32 DMX devices may be connected in any one DMX data run when installed in a daisy-chain fashion.

  • Page 30: Terminate Dmx-512

    The last luminaire in the DMX control run must be terminated to prevent signal reflections. Signal reflections cause noise on the data line, resulting in corrupted data between the control source and the luminaire. Use a DMX termination plug 5-pin XLR male (available from ETC; order part number SGE1507).

  • Page 31: Power Up

    Power Up Prior to applying power to the luminaire, check the installation and ensure the following: The luminaire is mounted securely and the safety cable is properly secured to a suitable • structure. The pan and tilt locking mechanisms are unlocked, allowing unrestricted movement of the •...

  • Page 32: User Interface

    User Interface The Relevé Spot user interface (UI) consists of a display and button controls for local configuration, and a USB (type A) port for firmware update. Use the display and button controls to configure the luminaire for your specific application and installation needs. Auxiliary Battery The auxiliary battery recharges over time (trickle charge) when power is applied to the •...

  • Page 33: Menu Navigation

    Menu Navigation Use the button controls to access and navigate the menu on the display. < Navigate left - Navigates within a value selection or cancels the current operation and returns to the previous screen. Multiple presses of the back button will eventually return you to the status display.

  • Page 34: Status Screen

    DMX is present. Note: ETC recommends running the most current version of firmware in your luminaire. Relevé Spot firmware is available for download from the ETC website etcconnect.com/ReleveSpot. See Update Firmware with USB Drive on page 35 instructions about updating firmware.

  • Page 35: Menu System

    Menu System Navigate the Main Menu to familiarize yourself with the onboard features available to you. Main Menu Control Settings > Options > Home / Test > Diagnostics > Update Firmware > Advanced > Control Settings DMX Address Channel Mode Standard Data Loss Hold...

  • Page 36: Control Settings

    Control Settings Control Settings DMX Address Channel Mode Direct Data Loss Hold DMX Address - Displays the current DMX512 address. Press Enter o to edit the address. • Default Address is 001. Accepts values 1 - 488. Channel Mode - Displays the current DMX Channel Mode. Press Enter o to edit the •...

  • Page 37: Options Menu

    Options Menu Options Menu Pan/Tilt > LED Output Freq 1200 Display > Reset Defaults > Pan/Tilt Displays current pan and tilt settings. Navigate to and press Enter o to edit a setting. Tilt Invert - Inverts tilt movement. Settable to Off (default) or On. •...

  • Page 38: Display

    Display Provides display orientation and backlight settings. Orientation - Settings are Auto (default) and Flip. Navigate to Orientation and press Enter • o to edit the current setting. Press the navigate up ˄ or down ˅ buttons to change the selection, then press Enter o to set the new selection.

  • Page 39: Home/Test

    Home/Test Home / Test Re-home Fixture > Fixture Test > Lens Cleaning Access > Re-home Fixture Selecting and confirming this menu option re-homes all features except for pan and tilt. Fixture Test This menu provides options to test all features of the luminaire in one sequence, individual features of the luminaire as stand-alone tests, or individual features of the luminaire concurrently.

  • Page 40: Lens Cleaning Access

    Lens Cleaning Access The Lens Cleaning Access menu provides manual control access to move the lenses for optimal cleaning access. See Clean the Lenses on page 48 Diagnostics Diagnostics DMX Monitor > Board Firmware > DMX Monitor The DMX Monitor menu displays the value of every channel in the current selected DMX Profile.

  • Page 41: Update Firmware

    ETC website etcconnect.com/relevespot or using the UpdaterAtor software from ETC. (For more information about UpdaterAtor, see the UpdaterAtor Software Quick Guide , which you can download for free from etcconnect.com.) There are several methods you can use to update firmware: Update luminaires individually using a USB drive.

  • Page 42: Update Firmware With Push Firmware Feature

    DMX control source to the host luminaire's DMX IN port. Advanced The Advanced menu is password protected, reserved for trained and qualified technicians. Password Protected Please Enter Access Code below: Contact ETC Technical Support for assistance with advanced features. Relevé Spot User Operations Manual...

  • Page 43: Operation

    Operation DMX Channel Mode Relevé Spot has two modes of operation, which are accessible in the Control Settings menu from the user interface. Standard Mode utilizes 20 channels of control. This is the default setting. • Standard Mode enables efficient use of DMX channel bandwidth. Direct Mode utilizes 25 channels of control.

  • Page 44: Dmx Start Address

    Standard Mode Direct Mode Channel Parameter Channel Parameter Configuration Pan/Tilt Speed Zoom/Focus Speed Reserved Beam Speed DMX Channel Map on page 55 for detailed channel information about each protocol. DMX Start Address The user interface allows configuration of the DMX Start Address to any value between 001 and 488.

  • Page 45: Replace A Gobo

    Standard or custom gobo installed in a Relevé Spot gobo carrier • A gobo carrier kit (RELGOBOKIT / part number 2510K1000) is available separately for purchase. Contact ETC Customer Service or your local authorized ETC dealer. Remove the Effects Module Tool required: #2 Phillips screwdriver •...
  • Page 46 Disconnect power and CAN bus wires from the effects module motor control board before removing the module. Disconnect the FX MOD PWR (red-and-black wire pair) from J6. Disconnect the FX MOD CAN (blue-and-white wire pair) from J12. CAUTION: Before removing the effects module, ensure that the lenses are positioned out of the way so there is no contact between the lenses and the effects module components.

  • Page 47: Remove A Gobo

    Remove a Gobo Tool required: 1/8 in flat blade • CAUTION: To ensure proper indexing of your rotating gobo wheel, you must have a gobo installed in the first slot prior to powering up or re-homing the luminaire. CAUTION: For this procedure, it is important to lay the effects module on a clean and flat work surface with the motor-side facing up to ensure that the gobo rests on the work surface when you remove the retaining clip.

  • Page 48: Install A Gobo

    Locate the notch in the gobo retaining ring, insert the flat blade, and twist the blade 90 degrees to loosen the retaining ring. Continue using the flat blade around the outside of the retaining ring to loosen the clip from the gobo carrier, and then carefully slide the ring off of the gobo carrier.

  • Page 49: Install The Effects Module

    Align the retaining ring around the outside lip of the gobo carrier, and then fully seat the ring to secure the gobo in place. Install the Effects Module Ensure the address on the effects module motor control board is set to address 3 and the jumper is installed to J15.
  • Page 50 Reconnect the power and CAN bus wires to the effects module motor control board and check that all other factory connections are fully seated. Each wire set is labeled with its installation location and purpose, and the module is labeled to further guide you. Connect the FX MOD PWR (red-and-black wire pair) to J6.

  • Page 51: Maintenance

    Maintenance Regular maintenance of the Relevé Spot luminaire is recommended to ensure optimal performance for the life of the luminaire. Note: Any service or maintenance that you perform on your Relevé Spot luminaire is at your own risk. WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the luminaire before working inside could result in serious injury or death.

  • Page 52: Clean The Fan Filter

    Clean the Fan Filter To ensure proper air flow and cooling in the LED module, remove any buildup of dust on the fan filter and fan blades on a routine basis according to the installation environment. WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the luminaire before working inside could result in serious injury or death.

  • Page 53: Remove And Reinstall Covers

    Remove and Reinstall Covers Access to the internal components of the luminaire is provided behind removable covers. Disconnect power to the luminaire and allow it to cool completely before opening the covers. WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the luminaire before working inside could result in serious injury or death.

  • Page 54: Reinstall The Head Covers

    Lift the cover, and then detach the lanyard from the luminaire enclosure to completely remove the cover. If necessary, repeat these steps to remove the second cover. Reinstall the Head Covers Head covers are universal, meaning that you can reinstall them on either side of the top of the luminaire head.

  • Page 55: Replace The Effects Module

    Maintain power to the luminaire. Remove the head covers. See Remove and Reinstall Covers on page 47 Using your control source, tilt the head until the lenses are easily accessible. Navigate the menu to Home/Test > Lens Cleaning Access, and press Enter o. Lenses Apart [1/2] displays and the lenses inside the luminaire move apart.
  • Page 56 Ensure that the address and jumper settings for the replacement effects module are correct according to the label on the module. The address on the effects module motor control board must be set to address 3. The jumper must be installed to J15 on the effects module motor control board. Rotate the head of the luminaire so that the lens is directed down and the optics module motor control board on the top side, and use the tilt lock to secure the head in place.

  • Page 57: Replace The Optics Module

    Replace the Optics Module Tool required: #2 Phillips screwdriver • WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the luminaire before working inside could result in serious injury or death. Disconnect power from the luminaire and follow appropriate Lockout/Tagout procedures as mandated by NFPA 70E. Any work must comply with OSHA Safe Working Practices and follow requirements by local code.
  • Page 58 Disconnect the power and CAN bus wires from the optics module motor control board before removing the module. Disconnect the OPTICS MOD PWR (red-and-black wire pair) from J6. Disconnect the FX MOD CAN (blue-and-white wire pair) from J11. Disconnect the OPTIC MOD CAN (blue-and-white wire pair) from J12. Feed the FX MOD CAN bus wires through the opening in the optics module so that the wires are free of the module.

  • Page 59: Install The Optics Module

    Install the Optics Module Ensure that the address setting for the replacement optics module is correct according to the label on the module, and ensure that the CAN bus jumper is not installed in J15. The address on the optics module motor control board must be set to address 2. This is not the last module in the CAN bus;...

  • Page 60: Remove Clamp Mounting Rails

    Remove Clamp Mounting Rails The provided clamp mounting rails feature a safe-latching system for secure fit to the hanging points on the enclosure. To remove the clamp mounting rails from the enclosure: Press up on the locking mechanism handle until it is clear of the attachment point. Slide the clamp mounting rail until the attachment points are aligned with the keyed holes.

  • Page 61: Dmx Channel Map

    DMX Channel Map Relevé Spot has two modes of operation, which are accessible in the Control Settings menu from the user interface. Standard on Standard Mode utilizes 20 channels of control. This is the default setting. See • the next page .
  • Page 62 Relevé Spot User Operations Manual...

  • Page 63: Standard

    Standard...
  • Page 64 Relevé Spot User Operations Manual...
  • Page 65 Standard...
  • Page 66 Relevé Spot User Operations Manual...
  • Page 67 Standard...
  • Page 68 Relevé Spot User Operations Manual...

  • Page 69: Direct

    Direct...
  • Page 70 Relevé Spot User Operations Manual...
  • Page 71 Direct...
  • Page 72 Relevé Spot User Operations Manual...
  • Page 73 Direct...
  • Page 74 Relevé Spot User Operations Manual...

  • Page 75: Strobe

    Strobe...
  • Page 76 Relevé Spot User Operations Manual...
  • Page 77 Strobe...
  • Page 78 Relevé Spot User Operations Manual...
  • Page 79 Strobe...
  • Page 80 Relevé Spot User Operations Manual...
  • Page 81 Strobe...

  • Page 82: Technical Specifications

    Technical Specifications Source Dimming performance: 8-bit controlled with 15-bit internal smoothing ® 52 Lumileds LUXEON C LEDs Electrical 6,000 maximum lumens 100-240 VAC, 50/60 Hz 33 lumens per watt powerCON input and thru connector L70 rating (hours to 70% output) 50,000 hours (estimate pending testing data) Fixtures per circuit - 4 @ 100 VAC, 5 @ 120 VAC, 10 @ 240 VAC...

  • Page 83: Note About Led Luminaires

    Note about LED luminaires All LED sources experience some lessening of light output and some color shift over time. Relevé Spot luminaires have complex thermal management systems to minimize these changes. With typical usage, a Relevé Spot luminaire will still achieve at least 70% of it initial output after 36,000 hours of use (L70).
  • Page 84 Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535 etcconnect.com Support support.etcconnect.com Contact etcconnect.com/contactETC © 2019 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 2510M1200-1.1.0 Rev B Released 2019-08...
