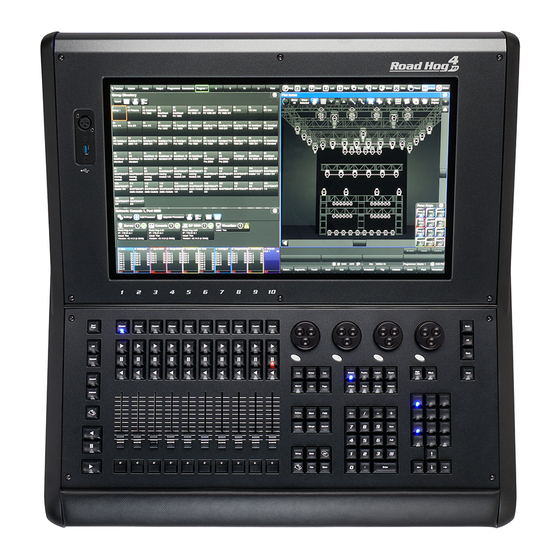

ETC RoadHog 4 How To Replace

How to Replace the Battery on a RoadHog 4

A guide on how to replace the BIOS battery on a RoadHog 4

• New CR2032 battery

• 4mm and 3mm Hex keys

• External USB keyboard

1. Remove these 9 screws (6 on the front panel, 3 on the rear) using appropriately sizes Hex drivers

2. Lift the metal cowl off the console and place to one side

https://support.etcconnect.com/HES/Consoles/Hog_4/Hardware/How_to_Replace_the_Battery_on_a_RoadHog_4

Updated: Thu, 08 Jun 2023 01:11:57 GMT

Table of Contents

Do you have a question about the RoadHog 4 and is the answer not in the manual?

Page 1 How to Replace the Battery on a RoadHog 4 Issue A guide on how to replace the BIOS battery on a RoadHog 4 You will need • New CR2032 battery • 4mm and 3mm Hex keys • External USB keyboard Fix/Solution 1.
Page 2 3. Gently lift the screen forward, paying attention to the screen cables - do not overstretch these or let hte screen hang on them 4. Remove the main power connector from the motherboard 5. Replace the battery with a fresh CR2032 battery (available from most shops), paying attention to the polarity https://support.etcconnect.com/HES/Consoles/Hog_4/Hardware/How_to_Replace_the_Battery_on_a_RoadHog_4 Updated: Thu, 08 Jun 2023 01:11:57 GMT Powered by...
Page 3 6. Gently lower the screen back into position, and replace the cowl 7. Re-insert the 9 screws - it may be easier to insert them all loosely first, to allow wiggle room on subsequent screws 8. Power up the console, and immediately hit F2 or Delete on an external keyboard to enter BIOS 9.
