ETC Installation Guide
ColorSource Spot Pearl v1.7
Overview

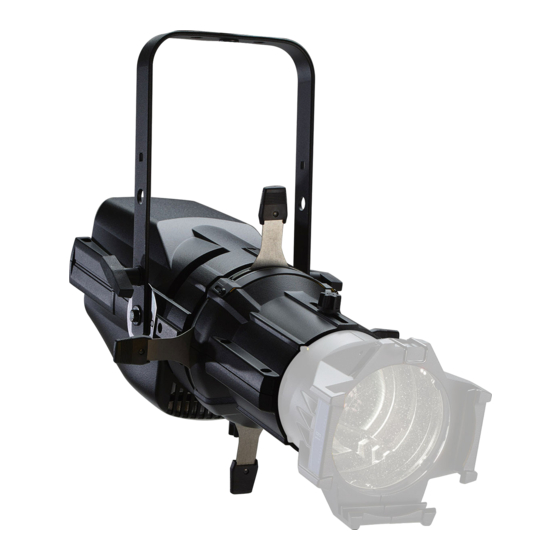

The ColorSource Spot Pearl is an affordable LED fixture that provides a bright,
variable white light.
The ColorSource Spot Pearl is UL924 listed as a Directly Controlled Luminaire
for use in emergency lighting systems when used with the ETC DMX
Emergency Bypass Controller (DEBC).
This light engine can be used with standard ETC shutter barrels, lens tubes,
fresnel adapters, CYC adapters, and accessories.
Note:
of software. For information on updating fixture software, see
the Fixture Software on
Features described in this document require the latest version
page 12.
Corpora te He a dqua rte rs Middleton, WI, USA +1 608 831 4116
London, UK +44 (0)20 8896 1000 Holzk irc he n, DE +49 (80 24) 47 00-0
Rome , IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 P a ris, FR +33 1 4243 3535
We b
etcconnect.com
Conta c t
etcconnect.com/contactETC
Product information and specifications subject to change. ETC intends this document
to be provided in its entirety. Trademark and patent
7 4 1 3 M 2 1 2 0 -1 .7 Rev C Released 2020-03
Support
support.etcconnect.com
© 2020 Electronic Theatre Controls, Inc.
Update
info: etcconnect.com/ip
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ETC ColorSource Spot Pearl v1.7
Summary of Contents for ETC ColorSource Spot Pearl v1.7
- Page 1 The ColorSource Spot Pearl is UL924 listed as a Directly Controlled Luminaire for use in emergency lighting systems when used with the ETC DMX Emergency Bypass Controller (DEBC). This light engine can be used with standard ETC shutter barrels, lens tubes, fresnel adapters, CYC adapters, and accessories. Note: Features described in this document require the latest version of software.
-
Page 2: Important Safeguards
Luminaire suitable for use in emergency lighting applications in accordance with 2017 National Electrical Code section 700.24 when used with an ETC DMX Emergency Bypass Controller. Equipment intended for this purpose must be properly selected, installed, and maintained so that facility conformance can be obtained. -
Page 3: Typical Power Consumption
ColorSource Spot Pearl v1.7 Note: The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. Environment The ColorSource Spot Pearl operates in ambient temperatures of 0°C–40°C and comes with a variable-speed fan. -
Page 4: Installation
The ETC DMX Emergency Bypass Controller that is driving the luminaire upon loss of utility power must be programmed to drive the ColorSource Spot Pearl to full illumination. -
Page 5: Safety Cable
Data (DMX512/RDM): Two five-pin XLR connectors OR two • RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR. -
Page 6: Adjust The Tilt
ETC Installation Guide ColorSource Spot Pearl v1.7 Set Up the Fixture Plug the power cord into the powerCON In connector on the rear of the fixture. Make any power-thru cable connections prior to applying a power source. Make any DMX connections, and if the fixture is the last in a DMX line, terminate the fixture. -
Page 7: Dmx Control Channels
ETC Installation Guide ColorSource Spot Pearl v1.7 Change the DMX Control Mode You can set the DMX control mode for the fixture to one of three available mode options. Press any button to wake the display. The display shows the DMX address. -
Page 8: Color Temperature Dmx Values
ETC Installation Guide ColorSource Spot Pearl v1.7 Color Temperature DMX Values The table below shows the color temperature value for each DMX value when using the DMX control mode. Note that although DMX address 0 = 3200 and DMX address 255 = 5600, the fixture supports a range of color temperatures from 2725 to 6450. - Page 9 ETC Installation Guide ColorSource Spot Pearl v1.7 Color Temp DMX Value Color Temp DMX Value Color Temp DMX Value 4575 5225 5875 214–215 4600 128–129 5250 172–173 5900 216–217 4625 130–131 5275 174–175 5925 4650 132–133 5300 5950 219–220 4675 5325 177–178 5975 221–222...
- Page 10 ETC Installation Guide ColorSource Spot Pearl v1.7 Play Presets The fixture has twelve factory-configured presets. When you play a preset on a fixture, the same preset number plays on any connected fixtures that are not receiving DMX. You can re-record presets through an RDM device or manually on the fixture.
- Page 11 ETC Installation Guide ColorSource Spot Pearl v1.7 Re-record Presets Using DMX, set the desired levels for the new preset. Press the Mode button to access the Presets menu. Press the Up button or Down button to navigate to the preset number that you want to re-record.
- Page 12 To unlock the user interface, press and hold the Up button and Down button simultaneously for 3 seconds. Update the Fixture Software ETC recommends using UpdaterAtor software to manage software updates. For more information on UpdaterAtor, see the UpdaterAtor Software Quick Guide , which you can download for free from etcconnect.com.
-
Page 13: Restore Factory Defaults
: Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •... - Page 14 ETC Installation Guide ColorSource Spot Pearl v1.7 ColorSource Spot Pearl Page 14 of 16...
- Page 15 ETC Installation Guide ColorSource Spot Pearl v1.7 ColorSource Spot Pearl Page 15 of 16...
-
Page 16: Quick Reference
: Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •...
