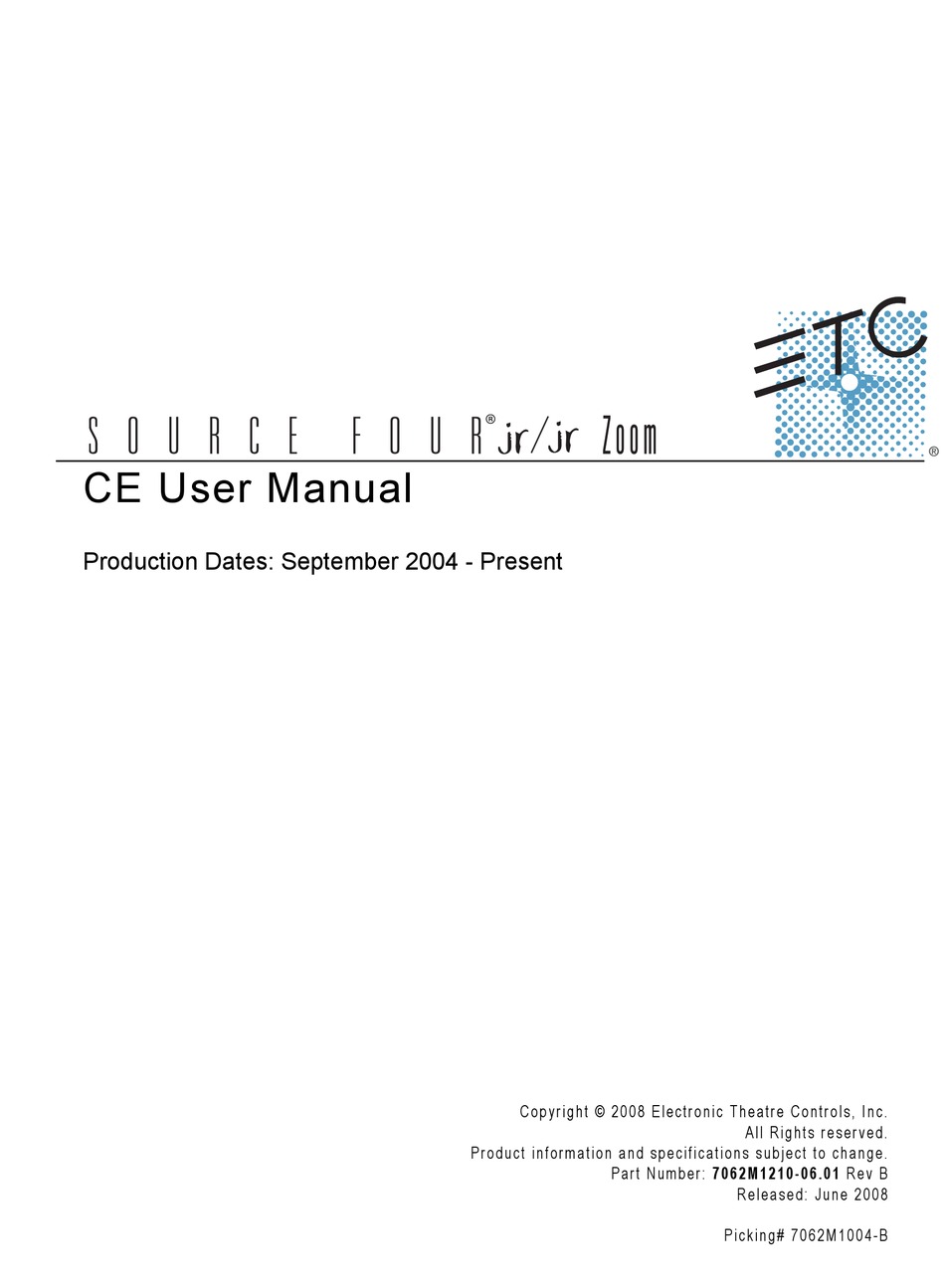

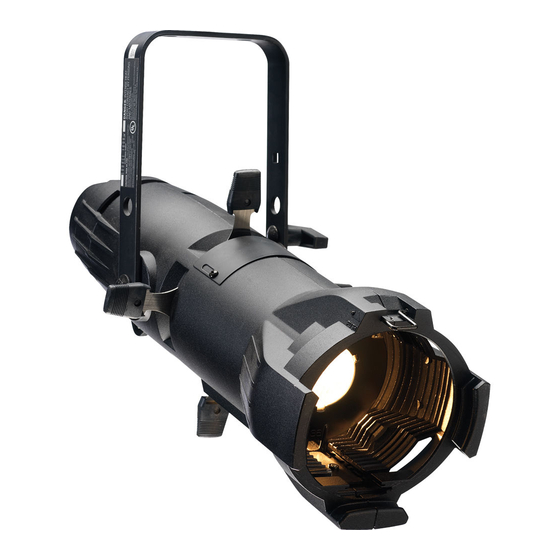

  • Page 1 CE User Manual Production Dates: September 2004 - Present C o p y r i g h t © 2 0 0 8 E l e c t r o n i c T h e a t r e C o n t r o l s , I n c . A l l R i g h t s r e s e r v e d .

  • Page 2: Table Of Contents

    Declaration of Conformity ........1 Source Four jr / jr Zoom CE Guidelines ..... . .2 Basic Assembly .

  • Page 3: Declaration Of Conformity

    English Declaration of Conformity We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product: Product name: Source Four fixed focus luminaries Product type/model: S405, S410, S426, S450, S4jr26, S4jr36, Srjr50 Lot: Batch/Serial number: Item numbers: one of each model to which this declaration relates in conformity with the following standards: EN60598-1:2000 Luminaires, General requirements and tests...

  • Page 4: Source Four Jr / Jr Zoom Ce Guidelines

    English Source Four jr / jr Zoom CE Guidelines The Source Four jr / jr Zoom CE is intended for professional use only. Read the entire User Guide before using equipment. W A R N I N G : Please note the following safety precautions.

  • Page 5: Basic Assembly

    English Basic Assembly C-clamp mounting Yoke Pattern holder slot Lamp housing Drop-in iris slot cover Color frame Barrel retaining gel clip Gel frame Yoke locking knob Zoom rear focus knob Beam focus knob (Zoom front focus) Figure 1 W A R N I N G : Please note the following safety warnings before use: Do not mount the luminaire on or near combustible surfaces.

  • Page 6: Colour Frame Holder

    H P L l a m p t a b l e C A U T I O N : The Source Four jr is rated for 575w maximum lamp. Do not use lamps other than the HPL in Source Four fixtures. Use of lamps other than HPL or greater than 575w will void your warranty.

  • Page 7: Replacing The Hpl Lamp

    Let the lamp cool before replacing. Step 1: Disconnect power to the Source Four jr / jr Zoom CE before installing the lamp. Step 2: Loosen the knurled bolt on the back of the lamp housing and pull the housing out.

  • Page 8: Centering Lamp And Adjusting The Field

    4. The outer knob centers the lamp within the reflector. The inner knob adjusts the lamp’s field. Step 1: Turn on the Source Four jr / jr Zoom CE and aim it at a flat surface. Adjust the barrel to create a hard edge. Step 2: Unlock and loosen the outer knob by turning it counterclockwise.

  • Page 9: Shaping The Beam

    English beam focus knobs to set the beam’s spread and to focus the edge of the beam. The Zoom lens provide a range from 25° to 50°. Step 1: Loosen the beam focus knob(s) on the underside of the barrel as shown in Figure Step 2: Slide the lens(es) forward or backward to achieve the desired beam edge.

  • Page 10: Adjusting The Yoke Position

    A d j u s t i n g t h e y o k e p o s i t i o n The Source Four jr / jr Zoom provides multi-positioning capabilities within its yoke for overall luminaire height and angle.

  • Page 11: Switching Lens Assemblies

    Replace lens if they contain visible damage (cracks or deep scratches) that may impair their effectiveness. Step 1: Remove the lens assembly. See Source Four jr /jr Zoom Assembly Guide for lens removal instructions. Step 2: Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface.

  • Page 12: Cleaning The Reflector

    See Figure Step 2: Remove the lens. See Source Four jr / jr Zoom Assembly Guide for full fixture disassembly/assembly instructions. Step 3: Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface.

  • Page 13: Portable Appliance Test (Pat)

    English P o r t a b l e a p p l i a n c e t e s t ( P A T ) The Portable Appliance Test is a set of tests that must be administered to electrical equipment in the UK and some locations in Europe to ensure safety.The tests are typically carried out using a small PAT device.
  • Page 14 English This page intentionally left blank. Source Four jr/jr Zoom CE User Manual...
  • Page 15 English This page intentionally left blank.
  • Page 16 Hong Kong Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong Tel +852 2799 1220 Fax +852 2799 9325 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2008 ETC. All Rights Reserved. Product information and specifications subject to change. 7062M1210-06.01 Rev B Released 06/2008...
