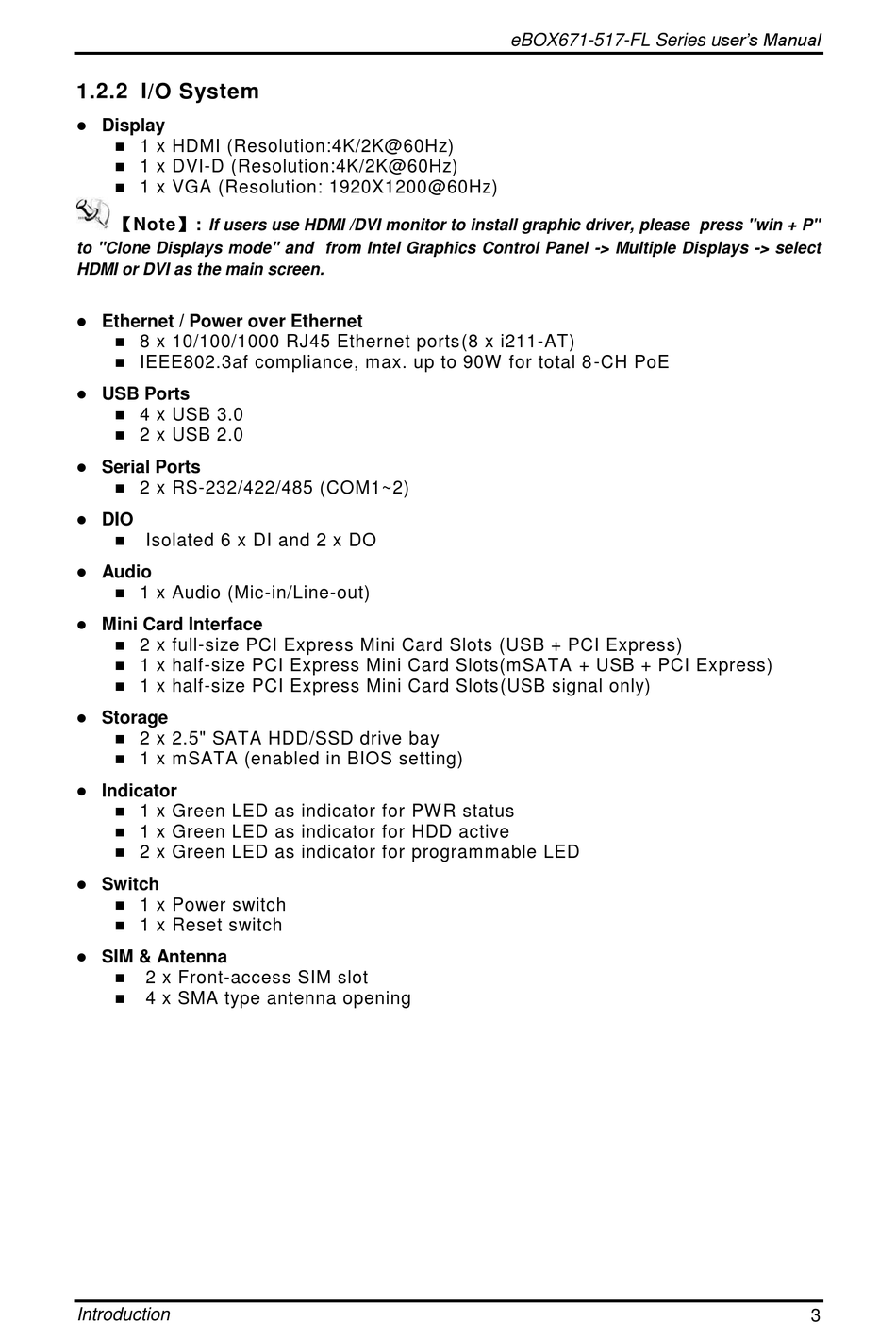

1.2.2 I/O System

 Display
 1 x HDMI (Resolution:4K/2K@60Hz)
 1 x DVI-D (Resolution:4K/2K@60Hz)
 1 x VGA (Resolution: 1920X1200@60Hz)
【Note】:
If users use HDMI /DVI monitor to install graphic driver, please press "win + P"
to "Clone Displays mode" and from Intel Graphics Control Panel -> Multiple Displays -> select
HDMI or DVI as the main screen.
 Ethernet / Power over Ethernet

8 x 10/100/1000 RJ45 Ethernet ports (8 x i211-AT)
 IEEE802.3af compliance, max. up to 90W for total 8 -CH PoE
 USB Ports
 4 x USB 3.0

2 x USB 2.0
 Serial Ports
 2 x RS-232/422/485 (COM1~2)
 DIO
 Isolated 6 x DI and 2 x DO

Audio
 1 x Audio (Mic-in/Line-out)
 Mini Card Interface
 2 x full-size PCI Express Mini Card Slots (USB + PCI Express)
 1 x half-size PCI Express Mini Card Slots(mSATA + USB + PCI Express)
 1 x half-size PCI Express Mini Card Slots(USB signal only)
 Storage
 2 x 2.5" SATA HDD/SSD drive bay
 1 x mSATA (enabled in BIOS setting)
 Indicator
 1 x Green LED as indicator for PW R status
 1 x Green LED as indicator for HDD active

2 x Green LED as indicator for programmable LED
 Switch
 1 x Power switch
 1 x Reset switch
 SIM & Antenna

2 x Front-access SIM slot
 4 x SMA type antenna opening
