Atdec AF-AT Installation Manual

Atdec AF-AT Installation Manual

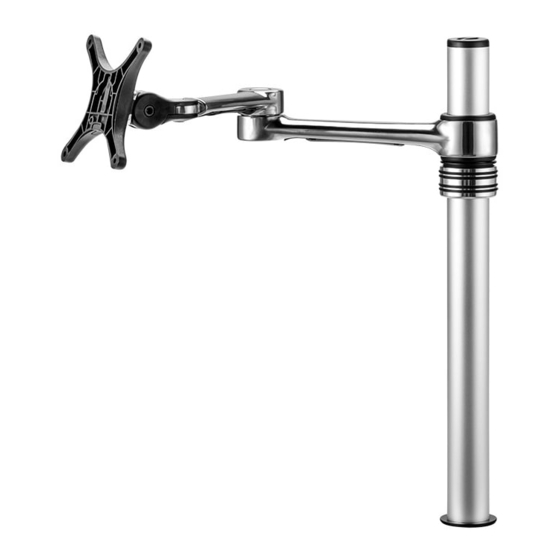

Single arm desktop monitor mount

Advertisement

Quick Links

Single Arm
Desktop Monitor Mount
COMPONENT CHECKLIST
B
Monitor
arm
(x1)
M8 x 60mm
N
Pole
C
top cap
Pole Assembly
(x1)
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with the range of AF Poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the
capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further
information.
A
VESA
head
(x1)
D
Rotation
limiter
(x1)
H
I
Screw
Screw
Security Screw
M8 x 30mm
M4 x 16mm
(x1)
(x1)
O
P
Bolt through
5mm
base
Allen key
(x1)
(x1)
E
F
Primary arm
Secondary arm
cable cover
cable cover
(x1)
(x1)
J
K
Steel
Cable
washer
stop
(x1)
(x1)
(x2)
Q
R
Mounting
Mounting
screws
screws
M4 x 10mm
M4 x 12mm
(x4)
(x4)
Installation Guide
REQUIRED TOOLS
G
Desk clamp
assembly
• Phillips Head Screwdriver
(x1)
L
M
WEIGHT RANGE
Cable
clip
(x1)
Flat Monitors
0 - 8kg
(0 - 17.6lbs)
S
Curved Monitors
Mounting
0 - 5.5kg
screws
M4 x 16mm
(0 - 12lbs)
(x4)
AF-AT
AF-AT Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF-AT and is the answer not in the manual?

Questions and answers

Summary of Contents for Atdec AF-AT

  • Page 1 ! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
  • Page 2 4. Bolt through - Drill Hole 5. Bolt Pole to work surface 4.1 Drill 9mm hole in desired post position on work surface. (3/8”) Bolt Through M8x60mm Plate Screw Note orientation of plate with pole Allen Key AF-AT Page 2 of 4...
  • Page 3 M4 x 16mm Security Screw into the Security Screw hole Note: Support Screen when adjusting tilt. Monitor head screw VESA monitor head Security Screw Loosen Hole Tighten Phillips Head Screwdriver 5mm Allen Key M4 x 16mm Arm Assembly Security Screw AF-AT Page 3 of 4...
  • Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20191024A AF-AT Page 4 of 4 atdec.com | atdec.co.uk | atdec.com.au...
