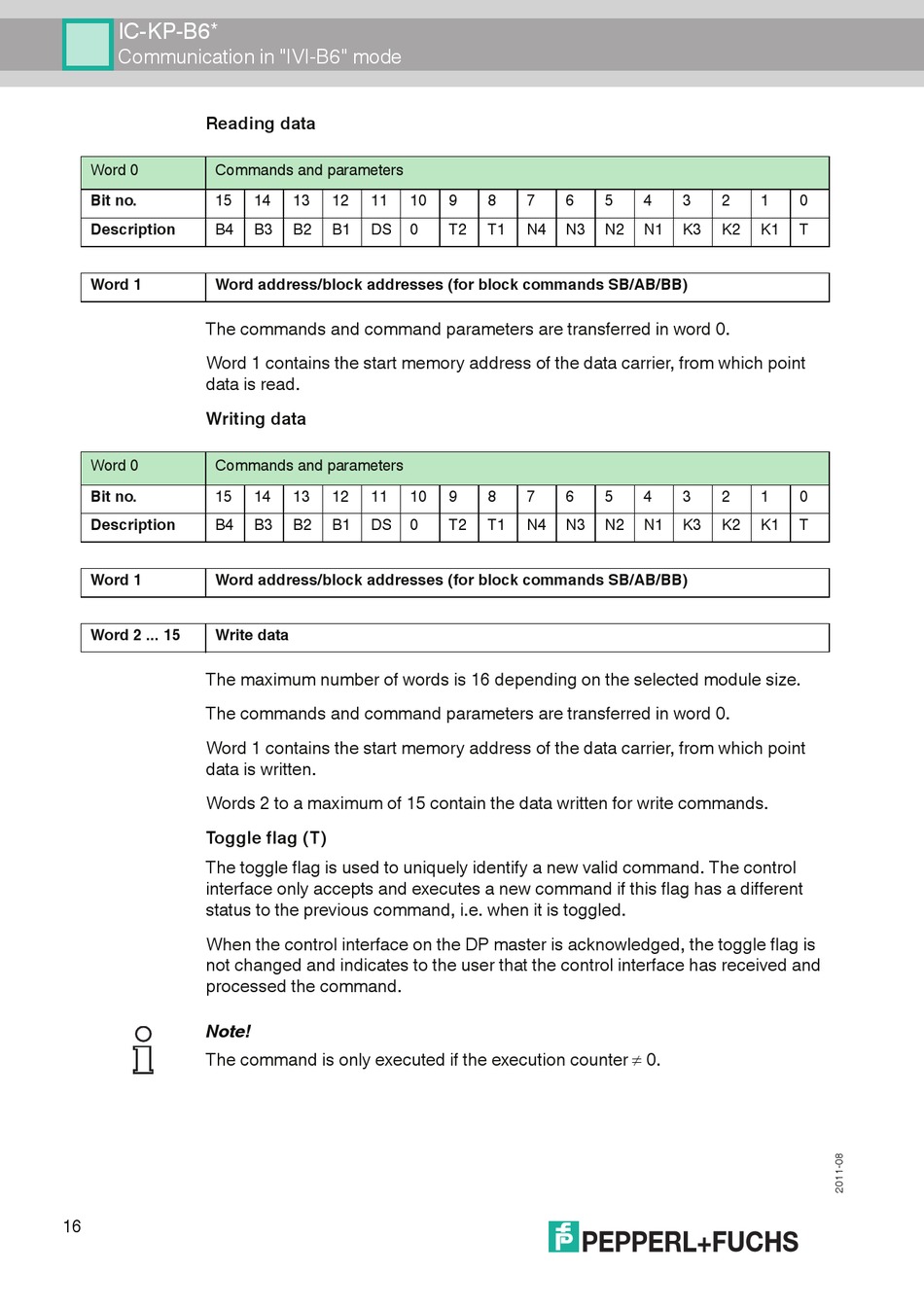

IC-KP-B6*
Communication in "IVI-B6" mode
Reading data
Word 0 Commands and parameters
Bit no. 15
Description B4
Word 1 Word address/block addresses (for block commands SB/AB/BB)
The commands and command parameters are transferred in word 0.
Word 1 contains the start memory address of the data carrier, from which point
data is read.
Writing data
Word 0 Commands and parameters
Bit no. 15
Description B4
Word 1 Word address/block addresses (for block commands SB/AB/BB)
Word 2 ... 15 Write data
The maximum number of words is 16 depending on the selected module size.
The commands and command parameters are transferred in word 0.
Word 1 contains the start memory address of the data carrier, from which point
data is written.
Words 2 to a maximum of 15 contain the data written for write commands.
Toggle flag (T)
The toggle flag is used to uniquely identify a new valid command. The control
interface only accepts and executes a new command if this flag has a different
status to the previous command, i.e. when it is toggled.
When the control interface on the DP master is acknowledged, the toggle flag is
not changed and indicates to the user that the control interface has received and
processed the command.
Note!
The command is only executed if the execution counter  0.
16
14 13 12 11 10
B3 B2 B1 DS 0
14 13 12 11 10
B3 B2 B1 DS 0
9 8 7 6 5
T2 T1 N4 N3 N2
9 8 7 6 5
T2 T1 N4 N3 N2
4 3 2 1 0
N1 K3 K2 K1 T
4 3 2 1 0
N1 K3 K2 K1 T
