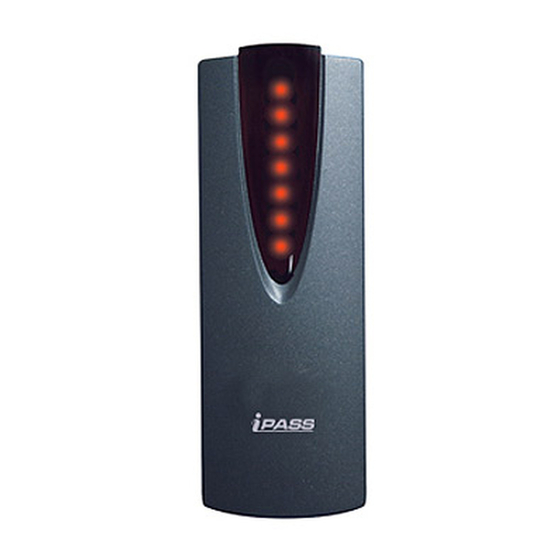

IDTECK iPASS IP-RFL200 Quick Installation Manual

Quick Installation Guide
1. Installation Environment
1.1 Confirming a power supply
Before wiring, confirm DC 12V and 150mA which are inputted into IP-RFL200.
1.2 Wiring
※ Caution: Select lock type as shown below.
Power Fail Safe Mode (Always open at power off)
: Connect lock type of yellow with black (GND) wire.
Power Fail Secure Mode (Always close at power off)
: Disconnect lock type of yellow wire.
2. Operation
2.1 Supplying a power
Supplying a power, all LEDs are on with red or green color.
After above state repeat ON/OFF two times, red LEDs at OFF state are on orderly.
At this time, IP-RFL200 sounds beeper one time.
2.2 Reading a registered card
When being read a registered card, all LEDs change from red to green. And then they
are off and on orderly. During five seconds, door lock is open.
At this time, IP-RFL200 sounds beeper one time.
2.3 Reading a unregistered card
When being read a unregistered card, all red LEDs repeat on and off in twice.
At this time, IP-RFL200 sounds beeper two times.
20060201
Proximity Access Controller
1 MAML200HE01
