9.

LET'S START RECORDING

9.1 CONFIRMING THE 73VR1100 OPERATION WITH SIMULATED INPUT
Confirm that the 73VR1100 is functioning properly using a simulated input signal.

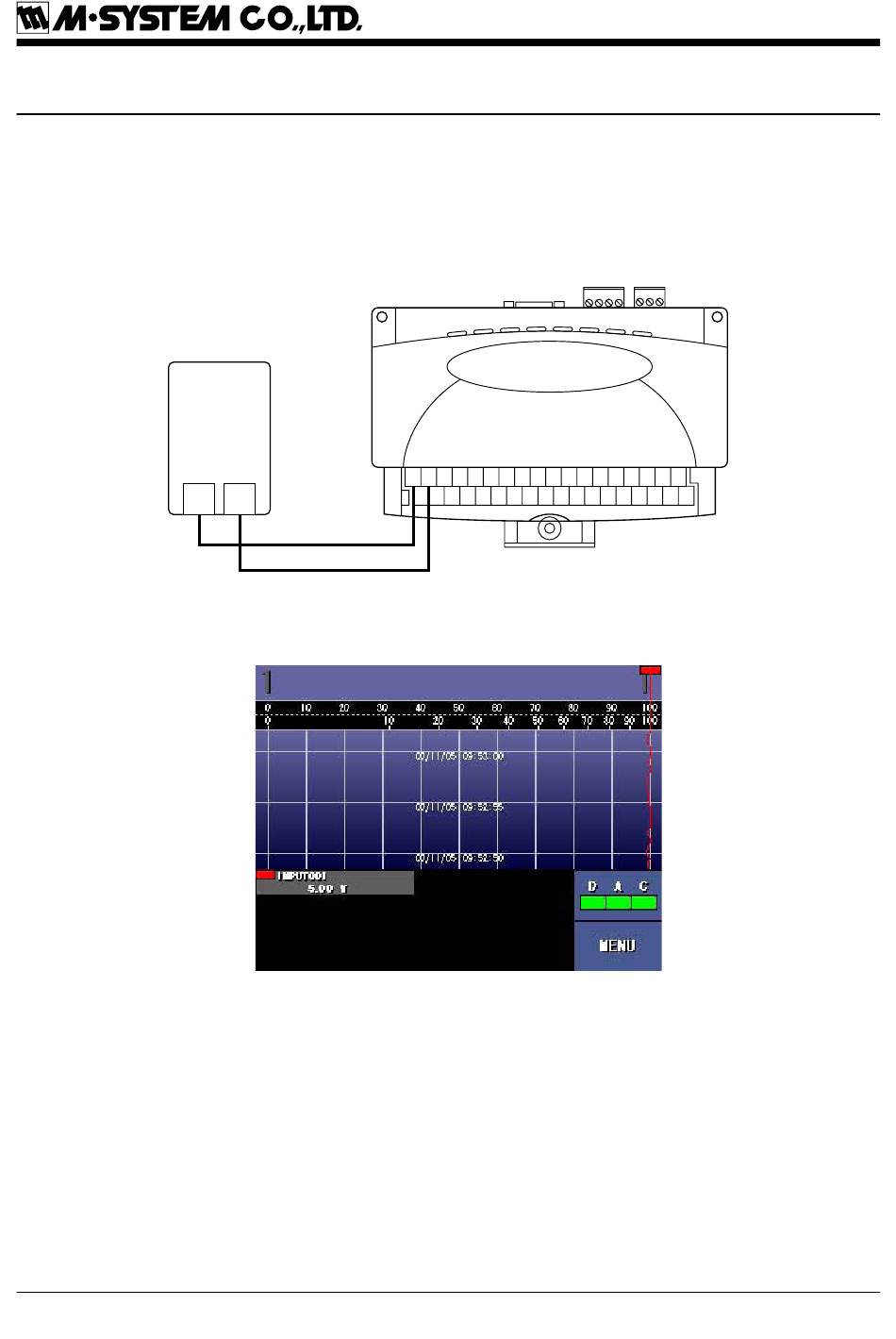

Connect a voltage simulator to Channel 1 terminals (+ to 1, – to 2) and supply 5V DC.
Voltage
Generator
+
The digital indicator for Pen 1 now shows 5V.
–
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 35
R1M-GH2
– 24 –
T5 T6 T7
T1 T2 T3 T4
