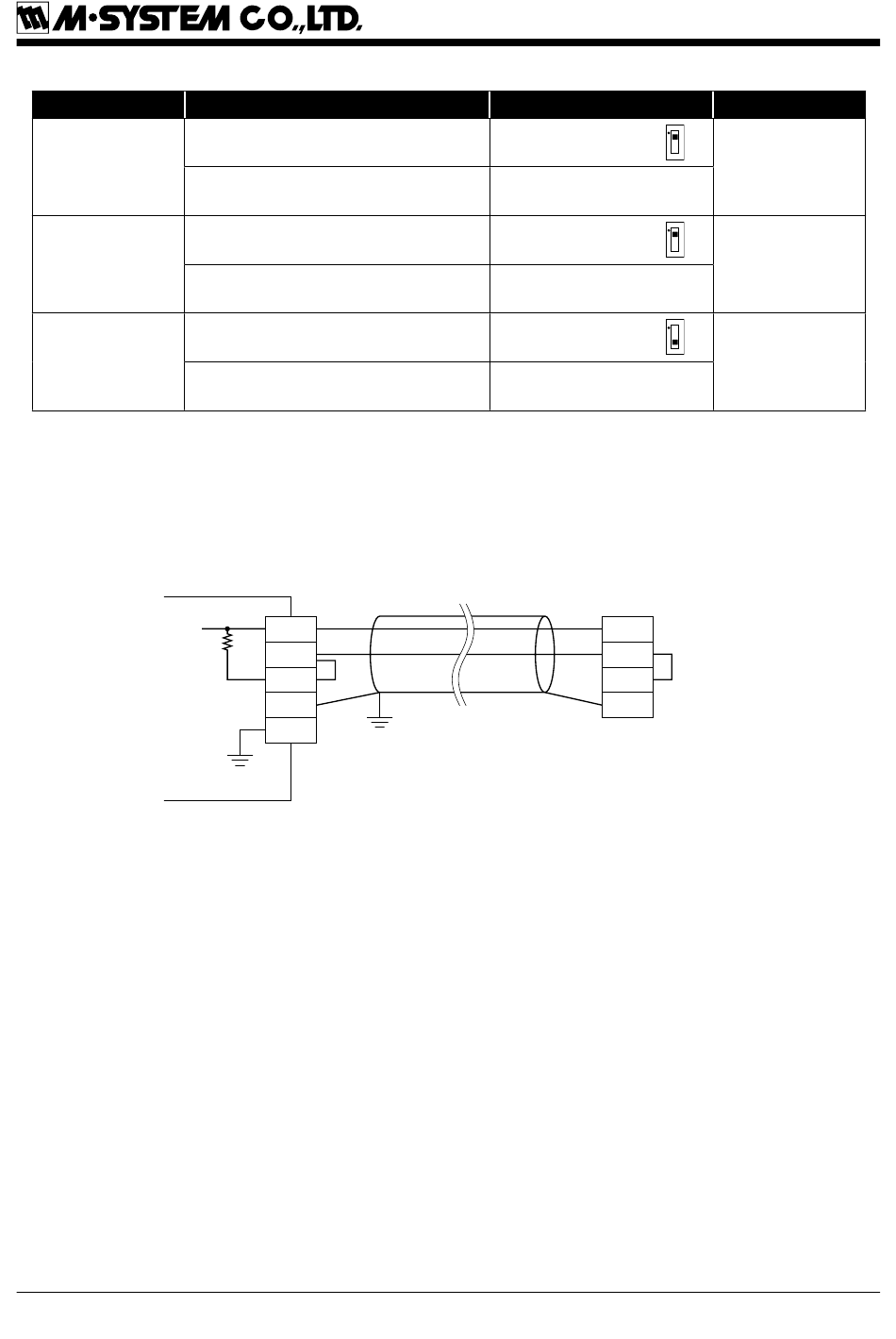

M-system 73VR1100 Startup Manual page 15

• Signal Type Setting
INPUT
Thermocouple SW301 ... SW308 (ch 1 ... ch 8)
SW401 ... SW408 (ch 9 ... ch 16)
SW311 (ch 1 ... ch 8)
SW411 (ch 9 ... ch 16)
Voltage input, SW301 ... SW308 (ch 1 ... ch 8)
0.8 V or less SW401 ... SW408 (ch 9 ... ch 16)
SW311 (ch 1 ... ch 8)
SW411 (ch 9 ... ch 16)
Voltage input, SW301 ... SW308 (ch 1 ... ch 8)
above 0.8 V* SW401 ... SW408 (ch 9 ... ch 16)
SW311 (ch 1 ... ch 8)
SW411 (ch 9 ... ch 16)
*Factory default setting
■ CONNECTING THE R1M-GH2 TO THE 73VR1100
The R1M-GH2 and the 73VR1100 are connected via RS-485, using a twisted-pair cable.
Refer to the diagram below.
73VR1100
Terminator
*1. Internal terminating resistors are used for the devices at both end of a transmission line.
Close across the terminals DB and TR for the 73VR1100, T2 and T3 for the R1M-GH2.
*2. Install shielded cables to all sections and ground them at a single point.
☛ When connecting other signal types, see the 73VR1100 User's Manual
(EM-7399-B, Section 3).
SWITCHES
DA
DB
*
1
TR
DG
FG
*
FG
*
2
FG
SETTING
Set to position "1."
OFF
Set to position "1."
ON
Set to position "3."
ON
RS-485
2
– 15 –
NOTES
Attenuation OFF
Attenuation OFF
Attenuation ON
R1M-GH2
T1
T2
*
1
T3
T4
