7.3 SETTING UP & CONNECTING I/O DEVICES

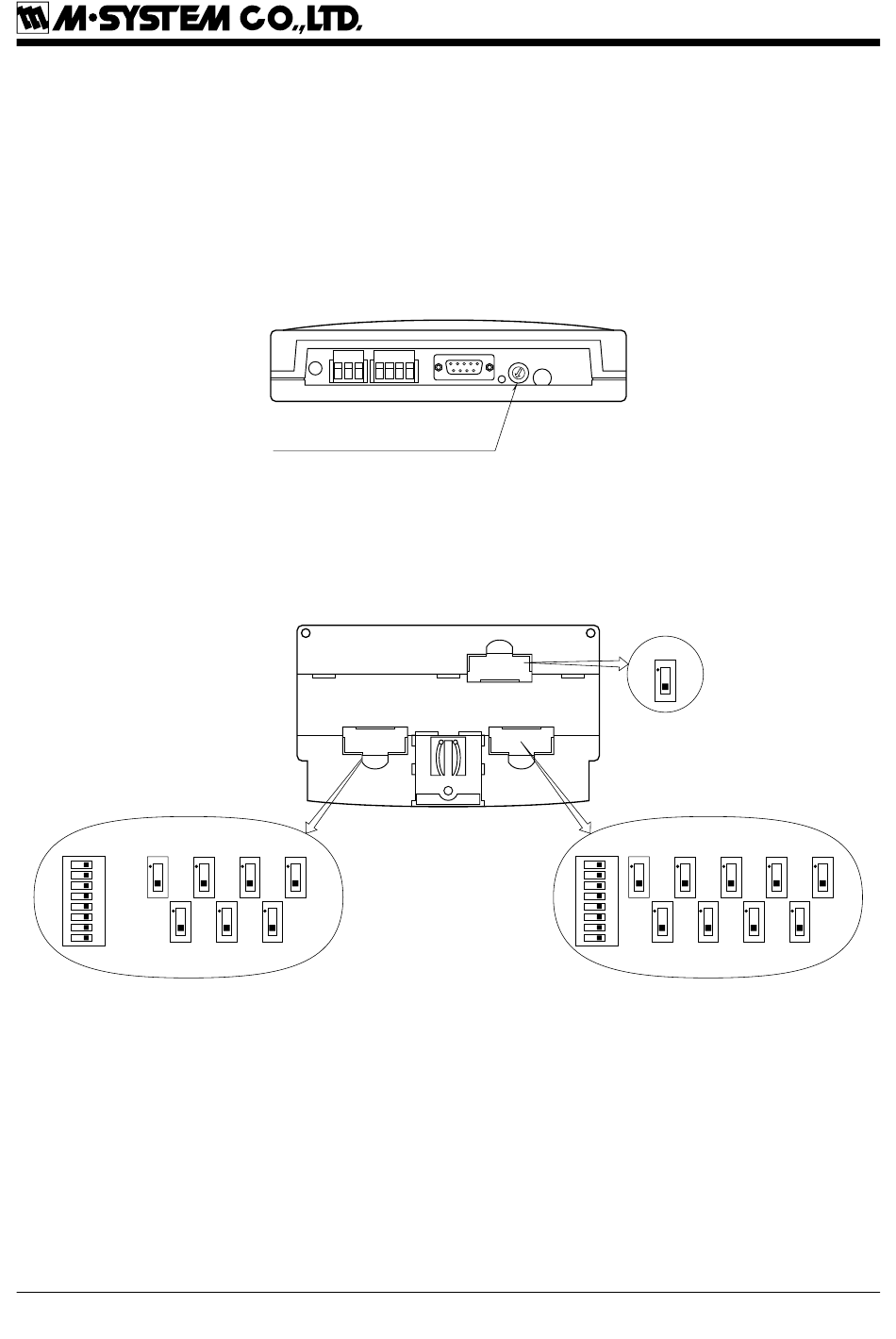

■ SETTING UP THE R1M-GH2
Node address and signal type must be set.
(1) Node address
Set the rear rotary switch to '1.'
If the power is supplied to the R1M-GH2 when setting the address, turn off and on the
power supply to enable the new setting.
(2) Signal type
Set the DIP switches at the bottom of the unit.
In this example, '-5 to +5V' will be used. Set the switches for the voltage 'exceeding
0.8V.' (This setting is actually the factory default setting.)
SW411 SW401 SW308 SW307 SW306
1 O
N
2
3
4
5
6
7
8
SW408 SW407 SW406
Address Setting Rotary SW
– 14 –
SW702 is fixed to
SW702
the position 3.
DO NOT CHANGE.
SW311 SW305 SW304 SW303 SW302
1 O
N
2
3
4
5
6
7
8
SW405 SW404 SW403 SW402
SW301
