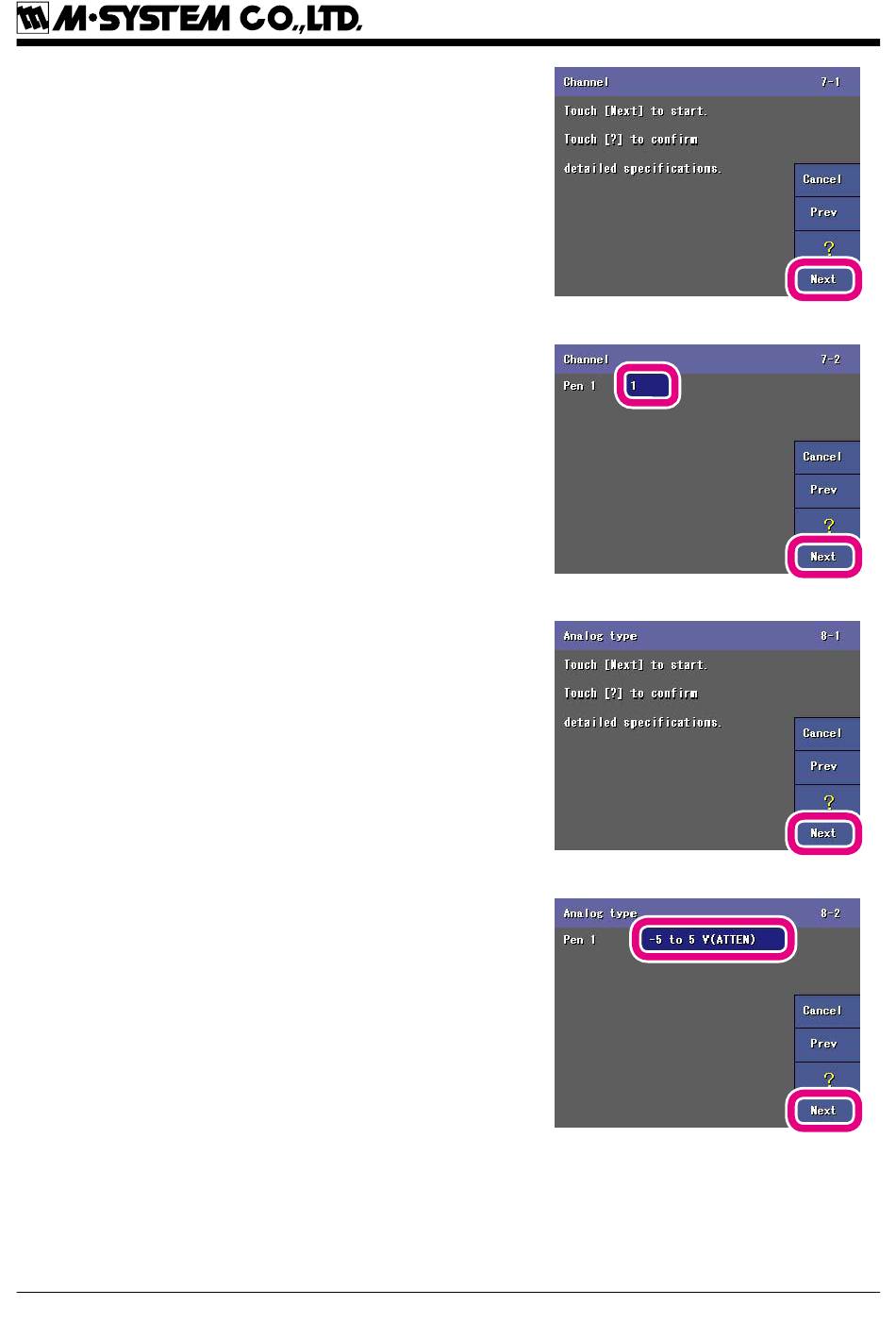

(17) 'Channel' view is on the screen.
Touch [ Next ].
(18) Default channel numbers are on the screen.
Touch these channel numbers to change.
Touch the current unit selection for Pen 1 and a
keypanel appears on the screen.
Enter '1' and touch [ OK ]
Touch [ Next ].
(19) ' A nalog type' view is on the screen.
Touch [ Next ].
(20) Default analog types are on the screen.
Touch these type descriptions to change.
Touch the current type selection for Pen 1 and a
list of available options will appear.
Leave the default '-5 to 5 V(ATTEN)' as it is in
this example.
Touch [ Next ].
– 21 –
