7.
PREPARATION & WIRING TO THE UNIT
7.1
INSERTING CF CARD
Insert a CF card to store recorded data and setting of Paperless Recorder.

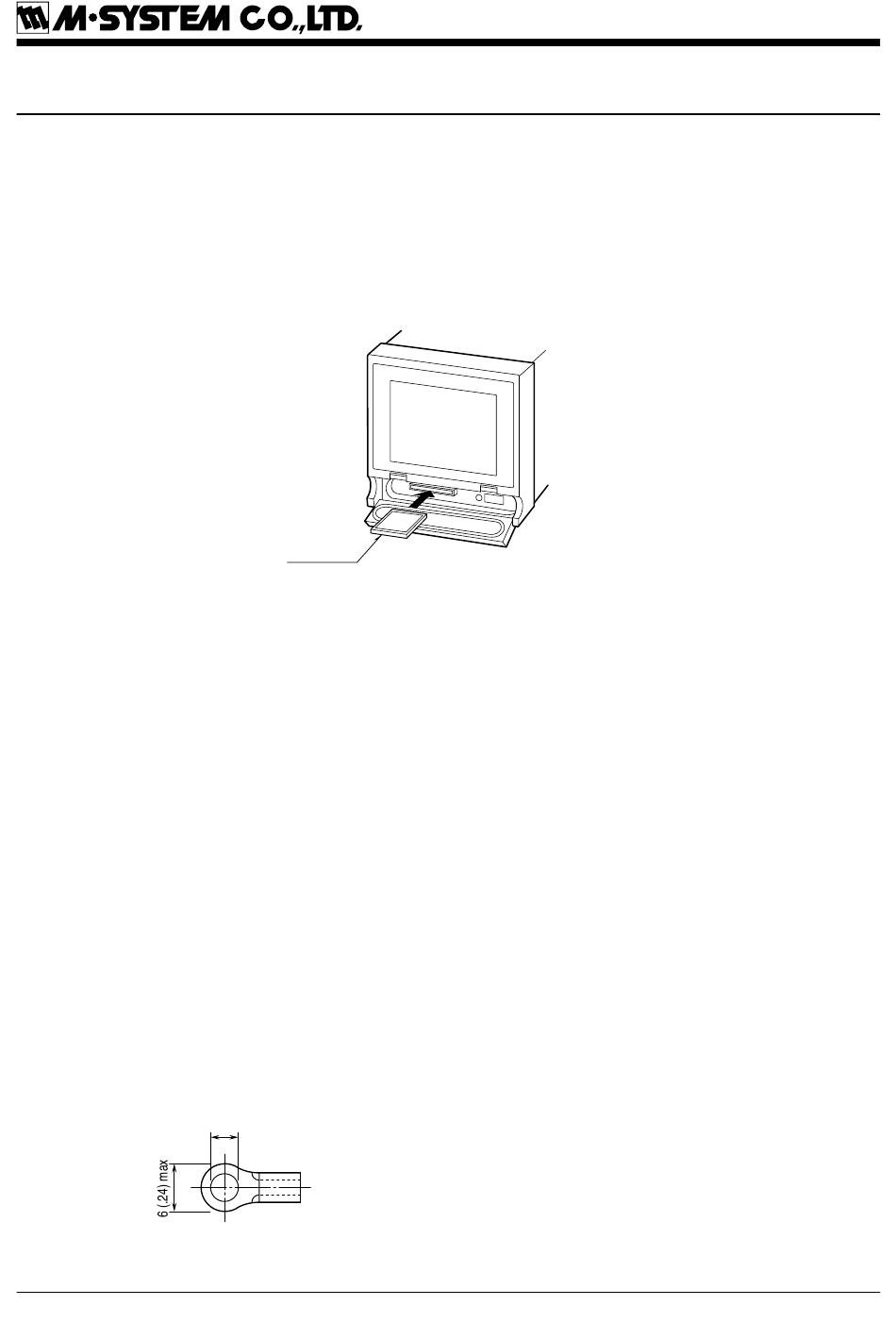

■ INSERTING THE CF CARD
(1) Turn off the power supply to the 73VR1100.
(2) Open the front cover.
(3) Insert the CF card maintaining its top side visible from above.
(4) Push it in until EJECT button is popped up.
(5) Close the front cover.
NOTES – Hot to Take the CF Card Out –
(1) When the 73VR1100 is recording data, touch [ MENU ] key on the right bottom on the
screen and touch [ Stop ] to stop the recording.
(2) Push EJECT button to the right side of the card slot and take the card out.
7.2
CONNECTING THE POWER SUPPLY
Please choose appropriate solderless terminals for the power terminals, referring to the
figure to the right. Appropriate tightening torque is 0.5 N·m.
Connection: M3 screw terminal
Screw terminal material: Nickel-plated steel (torque 0.5 N·m)
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
3.3 (.13) max
TOP
CF Card
(AWG 22 to 16)
2
mm (inch)
– 13 –
