8.

SETTING UP THE RECORDER

Basic setup procedure is explained in this section, using an example of thermocouple
input at Input 1 to store data in a CF card in 1 second storing interval.

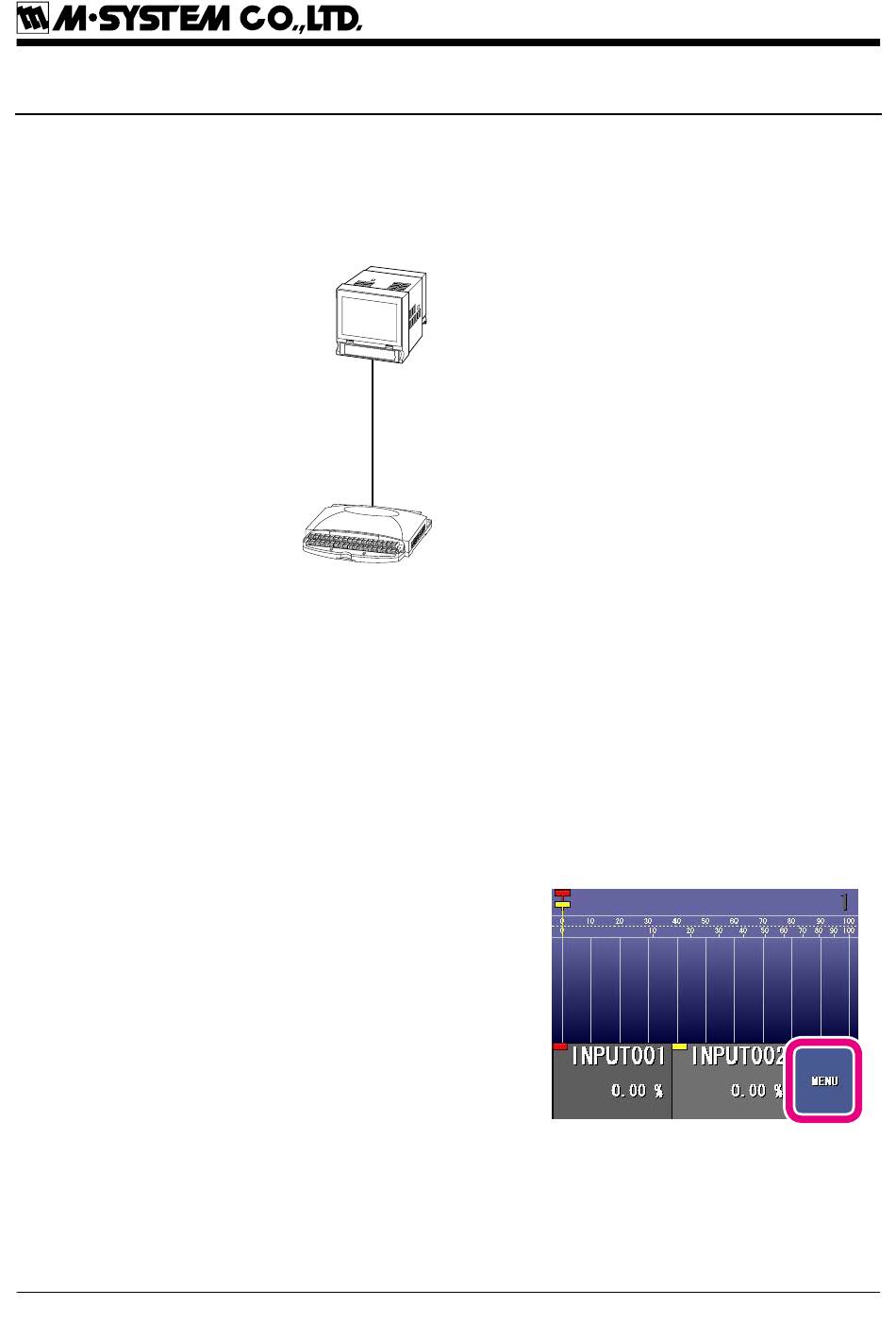

■ SYSTEM CONFIGURATION
☛ See the 73VR1100 User's Manual (EM-7399-C, Section 6) for the setting details.
(1) Insert the CF card into the 73VR1100. Turn on the power supply to the 73VR1100.
NOTES – Creating Files in the CF Card –
The 73VR1100 creates files necessary to function once the power is turned on. This
process takes some time. Please wait until the initial view appears on the screen.
☛ See the 73VR1100 User's Manual (EM-7399-C, Section 2) for the files
in the CF card.
(2) Touch [ MENU ] on the screen to call up the
control panel.
Paperless Recorder
(model: 73VR1100)
RS-485
PC Recorder
(model: R1M-GH2)
– 16 –
