i510-411EX
PCIII USB EX harness
ground wire
PCIII USB EX
harness
unplug this
connector
The ignition must be turned OFF before
installation.
1
Remove the seat.
2
Prop the fuel tank up using the stock prop rod.
3
Remove the right hand side cover.
4

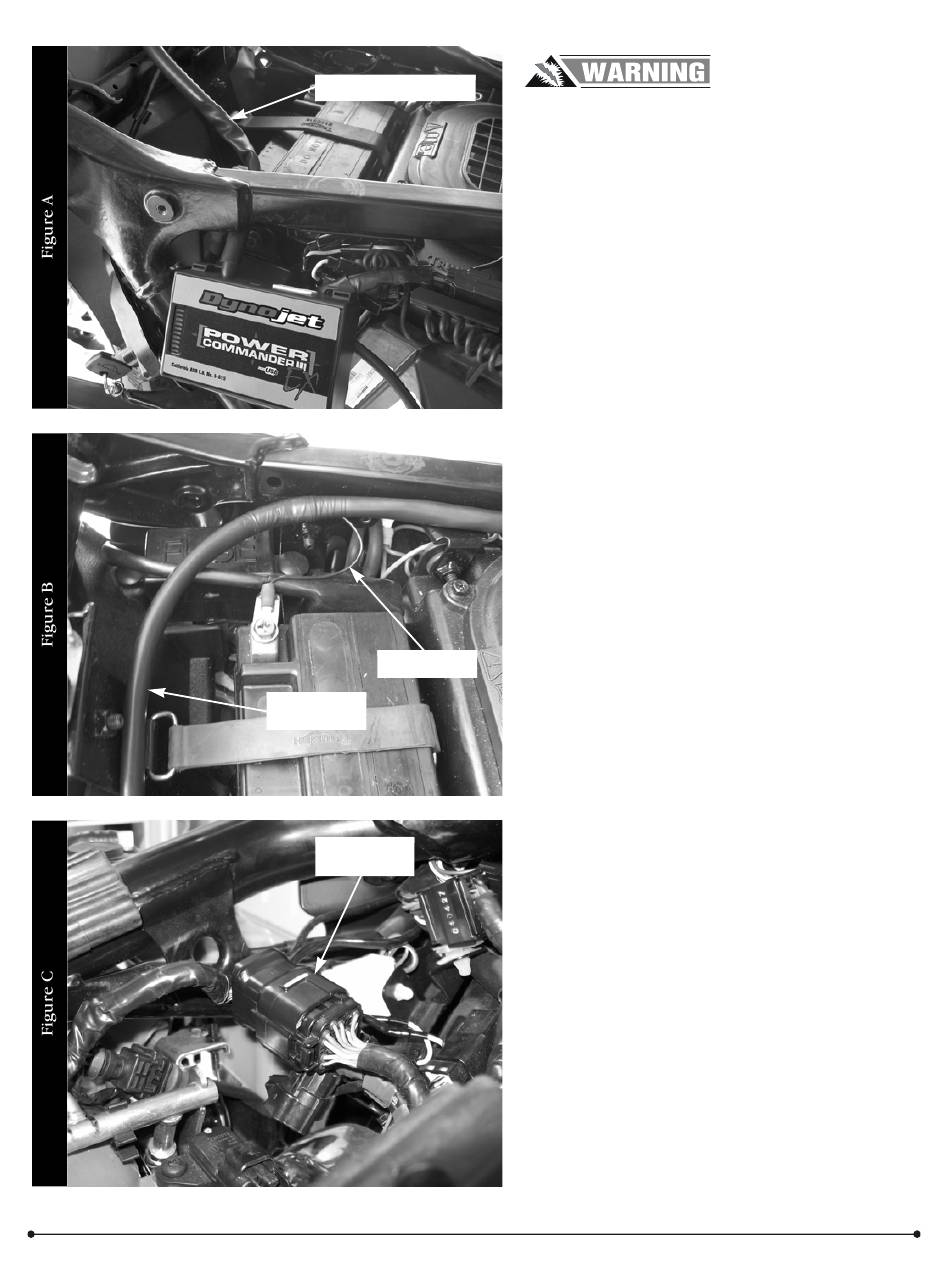

Route the PCIII USB EX harness from the right
hand side of the bike under the frame rail and
towards the front of the bike as shown in
Figure A.
5
Attach the ground wire from the PCIII USB EX
to the negative side of the battery as shown in
Figure B.
6
Unplug the black connector from the throttle
bodies to the main wiring harness as shown in
Figure C.
This connector is located under the fuel tank
towards the front of the bike.
