Rear Panel Connections

RGB (Analog) Input Connections

Input Selection Switches

www.camboard.de
2-7
CAMBOARD Electronics

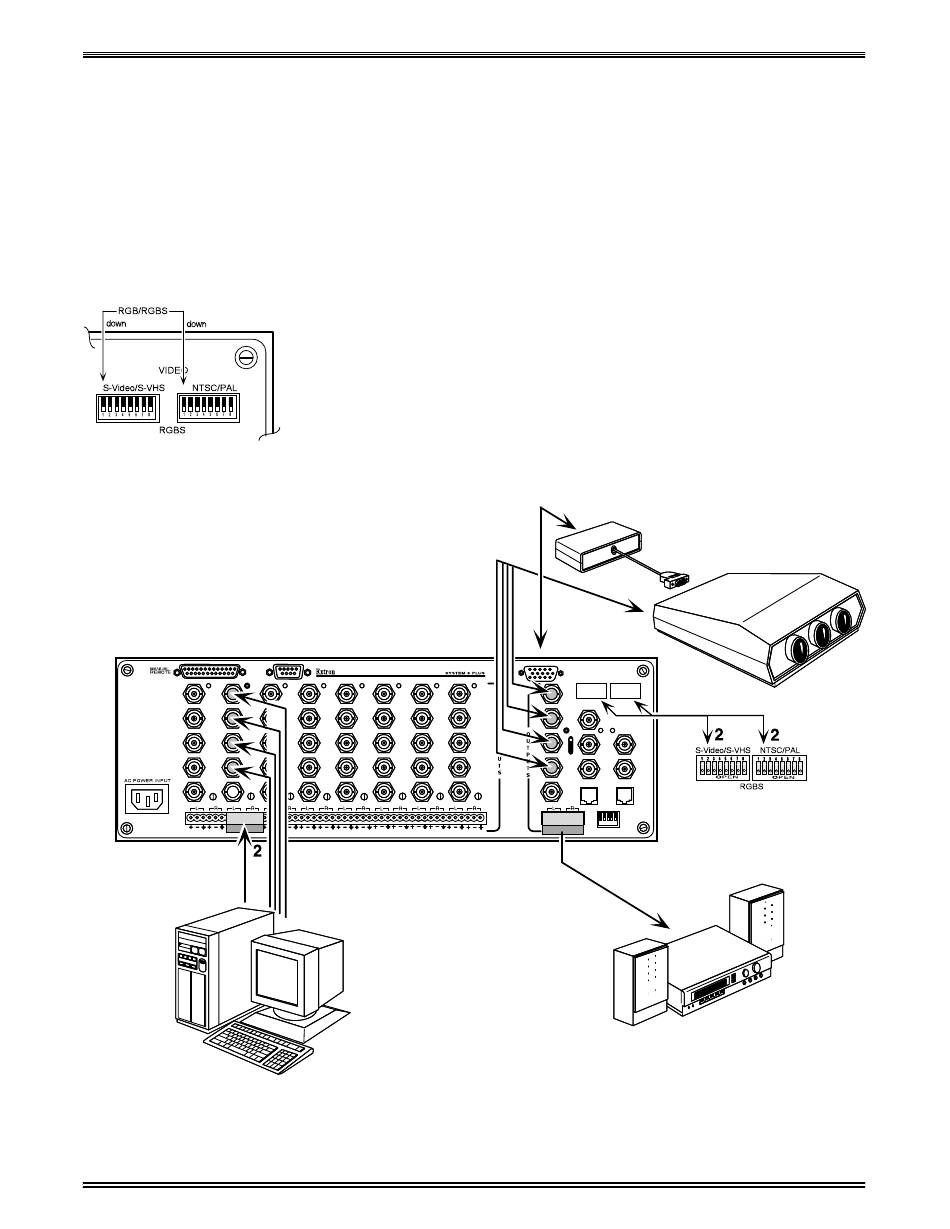

Each switcher input can be configured for any of the following RGB connections:
• RGB - Red, Green/sync, Blue (3-cables)
• RGBS - Red, Green, Blue, and Composite Sync (4-cables)
• RGBHV - Red, Green, Blue, H & V Sync (5-cables)
Any of these inputs may include audio follow, using the Phoenix® audio
connectors. If the video source does not have audio, audio can be connected
from another source.
To complete the RGB configuration, be sure that both of the DIP switches for
that input channel are in the down position. Audio may be connected to the
Phoenix connector at the bottom of that input section. See page 2-6 for details
on audio connections.
When the System 8/10 P
LUS
marked "RGBS" will light.
Tel. 07131 911201
Fax 07131 911203
selects this input, the LED next to the output
ce-info@camboard.de
Extron • System 8/10 P
RGB Input
• User's Manual
LUS
