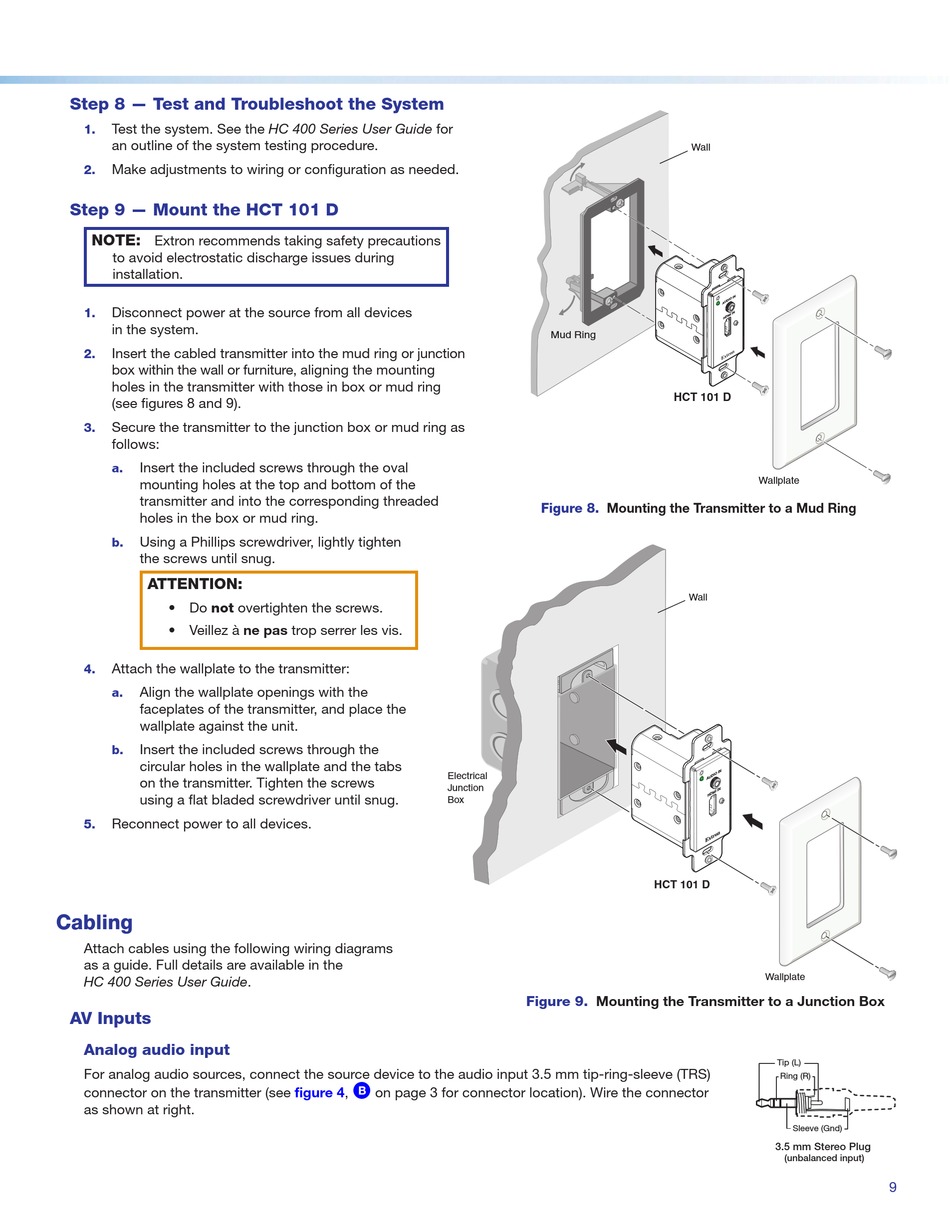

Step 8 — Test and Troubleshoot the System

Test the system. See the HC 400 Series User Guide for

an outline of the system testing procedure.

Make adjustments to wiring or configuration as needed.

Step 9 — Mount the HCT 101 D

NOTE:

Extron recommends taking safety precautions

to avoid electrostatic discharge issues during

installation.

Disconnect power at the source from all devices

in the system.

Insert the cabled transmitter into the mud ring or junction

box within the wall or furniture, aligning the mounting

holes in the transmitter with those in box or mud ring

(see figures 8 and 9).

Secure the transmitter to the junction box or mud ring as

follows:

Insert the included screws through the oval

mounting holes at the top and bottom of the

transmitter and into the corresponding threaded

holes in the box or mud ring.

Using a Phillips screwdriver, lightly tighten

the screws until snug.

ATTENTION:

• Do not overtighten the screws.

• Veillez à ne pas trop serrer les vis.

Attach the wallplate to the transmitter:

Align the wallplate openings with the

faceplates of the transmitter, and place the

wallplate against the unit.

Insert the included screws through the

circular holes in the wallplate and the tabs

on the transmitter. Tighten the screws

using a flat bladed screwdriver until snug.

Reconnect power to all devices.

Cabling

Attach cables using the following wiring diagrams

as a guide. Full details are available in the

HC 400 Series User Guide.

AV Inputs
