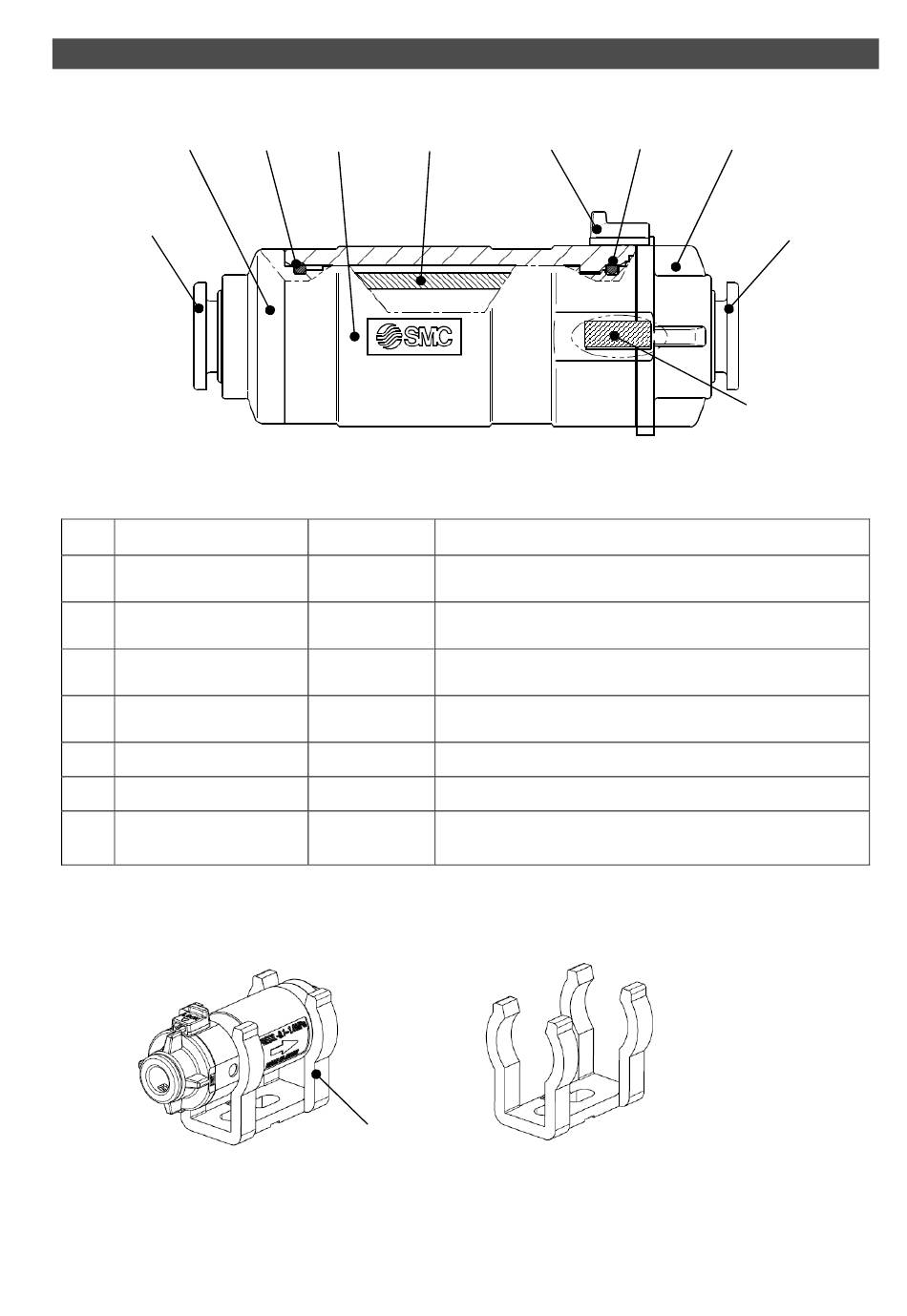

1. Product components and functions

(4)
(5)
No. Description
(1) Element
(2) Case
(3) Cover (IN side)
(4) Cover (OUT side)
(5) Cassette
(6) O-ring
Lock mechanism
(7)
Optional part: Bracket (material: PBT)/ This bracket fixes the filter body.
(2) (1)
(6)
Table 1 Name and function of components
Material
PE
PC
PBT
PBT
－
HNBR
POM
Bracket
(7)
Catches foreign matter.
(Replace the element when it is clogged.)
Vessel body (The clogging of the element can be checked
visually).
Used to connect the IN side tube.
(The cover can be removed when replacing the element).
Used to connect the OUT side tube.
(The cover cannot be removed).
Tube can be removed, mounted or held with a chuck.
Seals the case and cover.
Locks the rotation of the cover (IN side).
(Be sure to lock the rotation of the cover during operation).
