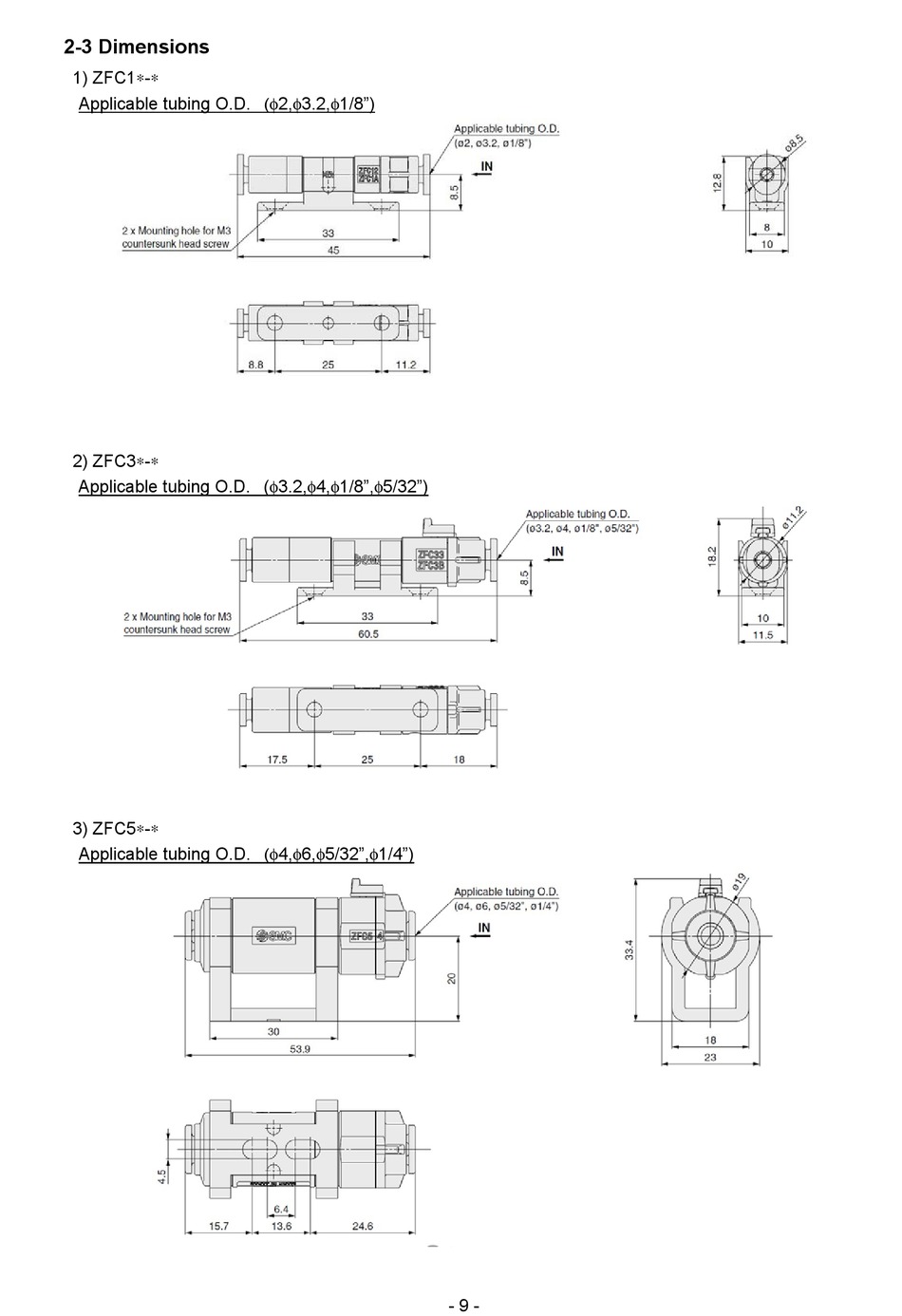

2-3 Dimensions
1) ZFC1∗-∗
Applicable tubing O.D. ( φ2,φ3.2,φ1/8")
2) ZFC3∗-∗
Applicable tubing O.D. (φ3.2,φ4,φ1/8",φ5/32")
3) ZFC5∗-∗
Applicable tubing O.D. ( φ4,φ6,φ5/32",φ1/4")
- 9 -
