Summary of Contents for SMC Networks SFDA203 Series

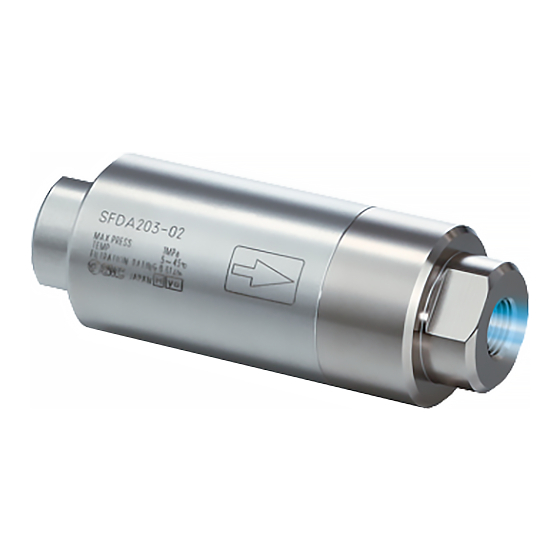

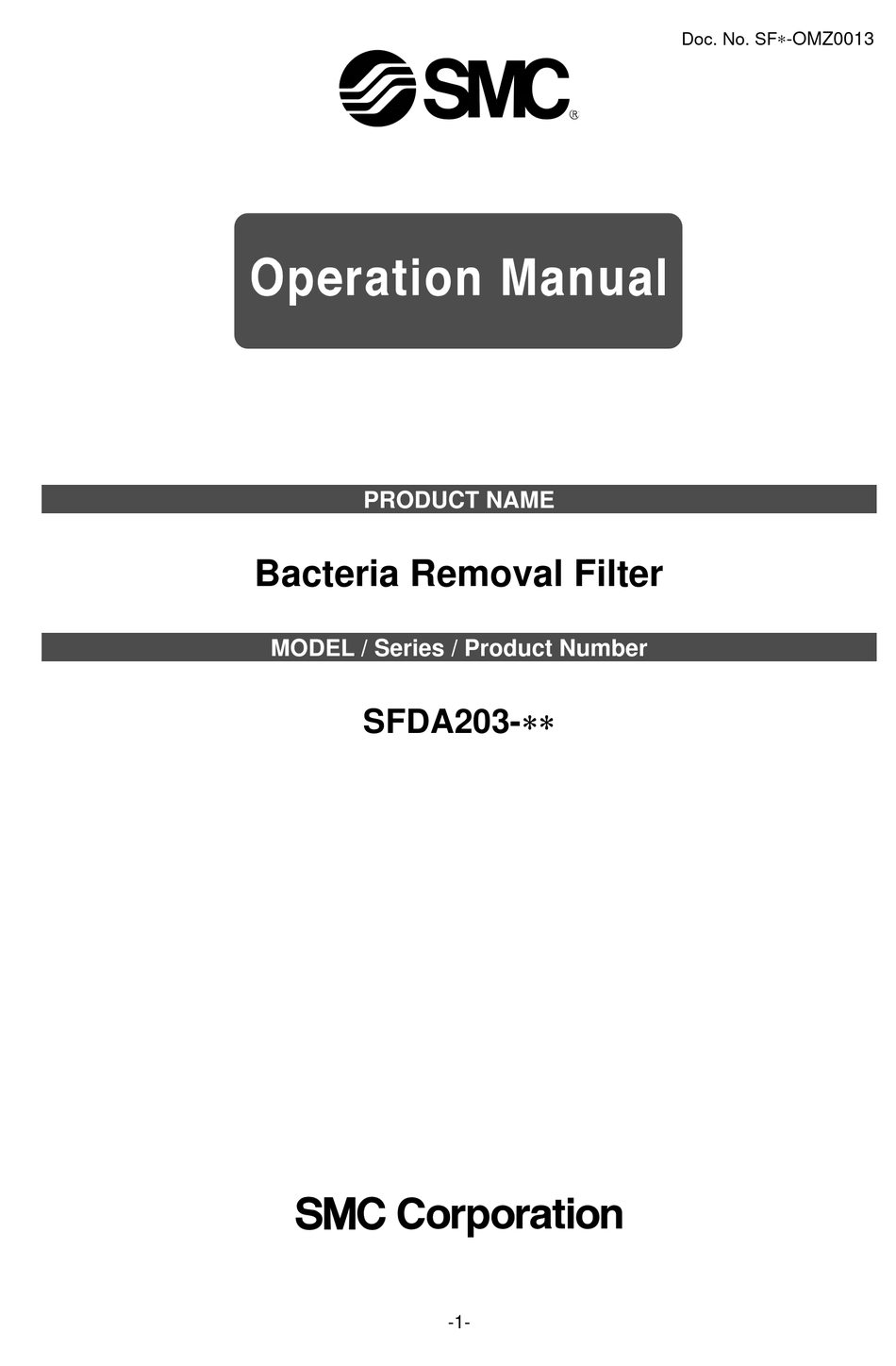

- Page 1 Doc. No. SF ∗-OMZ0013 PRODUCT NAME Bacteria Removal Filter MODEL / Series / Product Number SFDA203-∗∗...
-
Page 2: Table Of Contents
Doc. No. SF ∗-OMZ0013 Contents Page 1. Safety Instructions 2. Specifications 3. How to Order 4. Component name and spare parts list 5. Replacement of the element 6. Dimensions... -
Page 3: Safety Instructions
Doc. No. SF ∗-OMZ0013 Bacteria Removal Filter Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Doc. No. SF ∗-OMZ0013 Bacteria Removal Filter Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
- Page 5 Doc. No. SF ∗-OMZ0013 1. Operation Precautions Selection/Caution on Design Do not select a model exceeding specification ranges and carefully consider the purpose of use, required specifications, and operating conditions, such as fluid, pressure, flow rate, nominal filtration rating, and environment. Incorrect handling can result in unexpected accidents.
- Page 6 Doc. No. SF ∗-OMZ0013 Operating Environment Warning 1. Do not operate under the conditions listed below due to a risk of malfunction. - In locations containing corrosive gases, organic solvents, and chemical solutions, or in locations in which these elements are likely to adhere to the equipment - In locations in which sea water, water, or water steam could come in contact with the equipment - In locations that are exposed to direct sunlight (Shield the equipment from sunlight to prevent its resin material from ultraviolet ray degradation or overheating.)
- Page 7 Doc. No. SF ∗-OMZ0013 Maintenance Warning Perform maintenance and inspection according to the procedures indicated in the operation manual. If handled improperly, malfunction or damage of machinery and equipment may occur. 1. When removing the product, exhaust the air and ensure the air is released to atmosphere before removing it.
-
Page 8: Specifications
Doc. No. SF ∗-OMZ0013 2. Specifications Port size Rc1/4, NPT1/4, G1/4, Rc3/8, NPT3/8, G3/8 Fluid Air (Nitrogen) Rated flow 500L/min (ANR) Nominal filtration rating 0.01μm (99.99%) Operating pressure range -100kPa to 1.0MPa (For nitrogen: 0.99MPa) Operating temperature 5 to 45 Initial pressure drop 0.03MPa(Inlet pressure 0.7MPa, at max. -
Page 9: How To Order
Doc. No. SF ∗-OMZ0013 3. How to Order ＳＦＤＡ２０３－ ∗ ∗ Symbol Thread type Symbol Port size 4. Component name and spare parts list Replacement Parts Description Part no. Note Element set SFDA-EL200 With 3 O-rings Bracket SFD-BR200... -
Page 10: Replacement Of The Element
Doc. No. SF ∗-OMZ0013 5. Replacement of the element 5-1. Stop Stop operation and reduce the filter’s internal pressure to atmosphere. 5-2. Removal of the cover Hold the flats of the cover and case with a wrench and unscrew. * It is possible that the element comes out together with the cover. In this case, step 5-3 is not necessary. -
Page 11: Dimensions
Doc. No. SF ∗-OMZ0013 6. Dimensions -11-... - Page 12 Doc. No. SF ∗-OMZ0013 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
