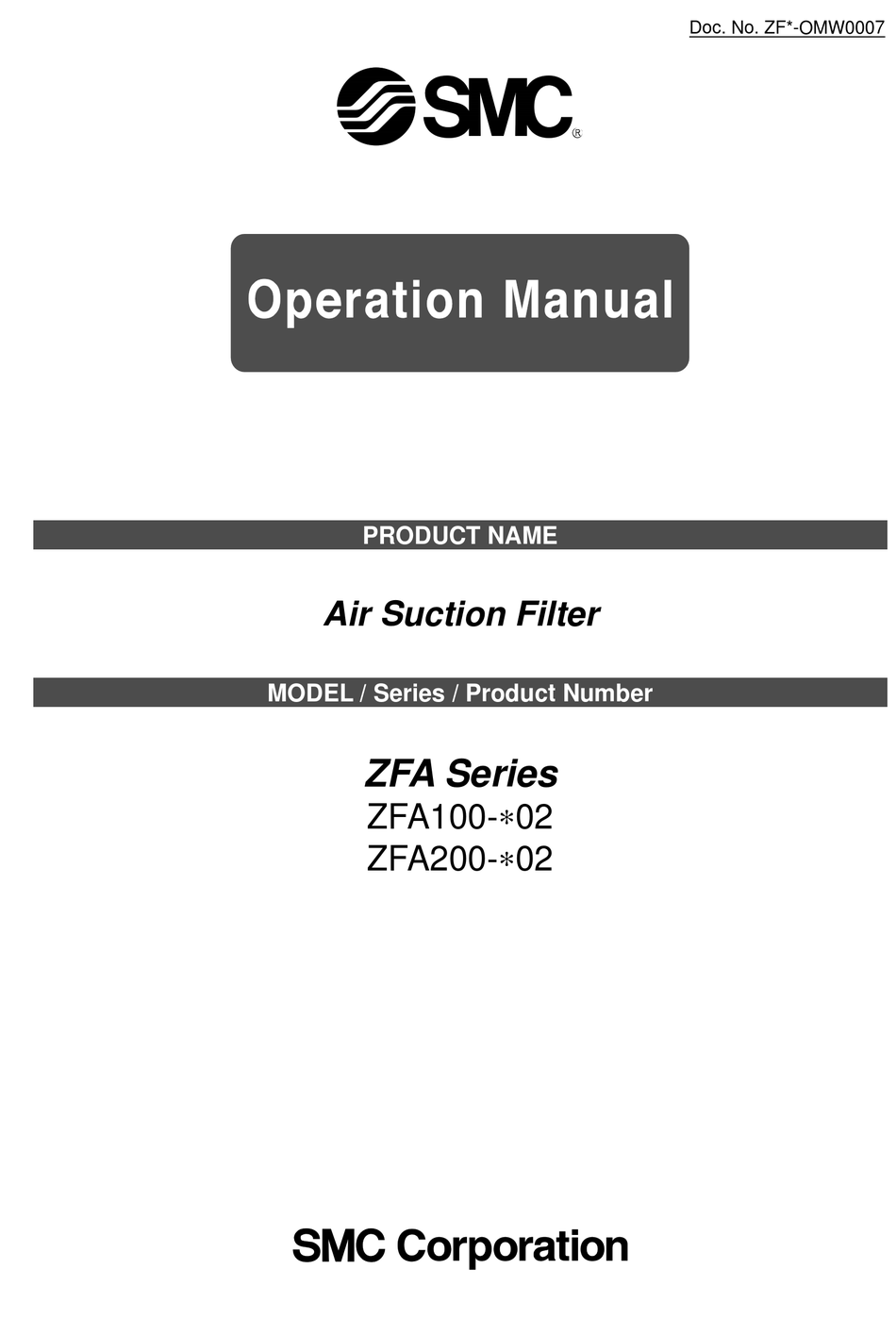

- Page 1 Doc. No. ZF*-OMW0007 PRODUCT NAME Air Suction Filter MODEL / Series / Product Number ZFA Series ZFA100-∗02 ZFA200-∗02...
-
Page 2: Table Of Contents
Contents Page Safety Instructions 2 to 3 ZFA Series Specific Product Precautions 1. Product components and functions 2. Specifications 6 to 8 3. Mounting 4. Element Replacement 9 to 10... - Page 3 Air Suction Filter Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards ∗1) (ISO/IEC) , and other safety regulations.
- Page 4 Air Suction Filter Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Zfa Series Specific Product Precautions
ZFA Series ／ Specific Product Precautions Be sure to read this before handling the products. Refer to “Handling Precautions for SMC Products” (M-E03-3) for Safety Instructions Design Operating Environment Warning Warning 1. Confirm the specifications. 1. Do not use in an atmosphere where Products represented in this catalog are corrosive gases, chemicals, sea water, designed only for use in compressed air... - Page 6 ZFA Series ／ Specific Product Precautions Be sure to read this before handling the products. Refer to “Handling Precautions for SMC Products” (M-E03-3) for Safety Instructions Maintenance Warning 3. The performance of an ejector will deteriorate due to clogged suction filters and silencers.
-
Page 7: Product Components And Functions
1. Product components and functions Table 1. Product components and functions Description Material Note Case Aluminum alloy Cover Zinc alloy Main body Stainless steel Spring pin alloy Polyester Catches foreign matter. Element (Replace the element when it is clogged.) Gasket Seals the case and cover. -
Page 8: Specifications
2. Specifications 2-1 How to Order ZFA ∗ －∗ ∗ ∗ ●Bracket Body type● Option Symbol Symbol Filtration area (mm None 2110 1 pc. on the left 4210 1 pc. on the right With both the left and right sides Thread type●... - Page 9 2-2 Specifications Specifications Remarks This product cannot be used in an environment Note) Fluid Air, Nitrogen exposed to chemicals. It may cause damage to the body. Operating pressure -100～0kPa Pressurised condition cannot be kept. Vacuum release pressure MAX.0.5MPa Do not use it in a line that is kept pressurized because it could cause the body to break.
- Page 10 2) Manifold Symbol Port size Model ZFA100 ZFA200 Number of manifold stations Single Model Symbol Note) unit 110 128 146 164 182 200 ZFA100 104 122 140 158 176 194 212 104 132 160 188 216 244 272 300 ZFA200 116 144 172 200 228 256 284 312 Note) The left and right brackets are mounted on the air suction filter single unit.
-
Page 11: Mounting
3. Mounting 1) Piping - Flush the piping before connecting the piping - Confirm the IN and the OUT before piping. The product should not be used with the wrong connection. (IN and OUT direction should be identified by the IN mark indicated on the case.) - Tighten the product to the recommended torque. - Page 12 <Element Replacement > 1. Stop operation and reduce the filter's internal pressure to atmosphere. 2. Loosen the stop pin and open the cover. 3. Hold the knob on the top of the element and take it out. 4. Check the gasket for damage, deformation, or swelling. If any fault is found, replace the gasket with a new one.
- Page 13 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2018 SMC Corporation All Rights Reserved -12-...
