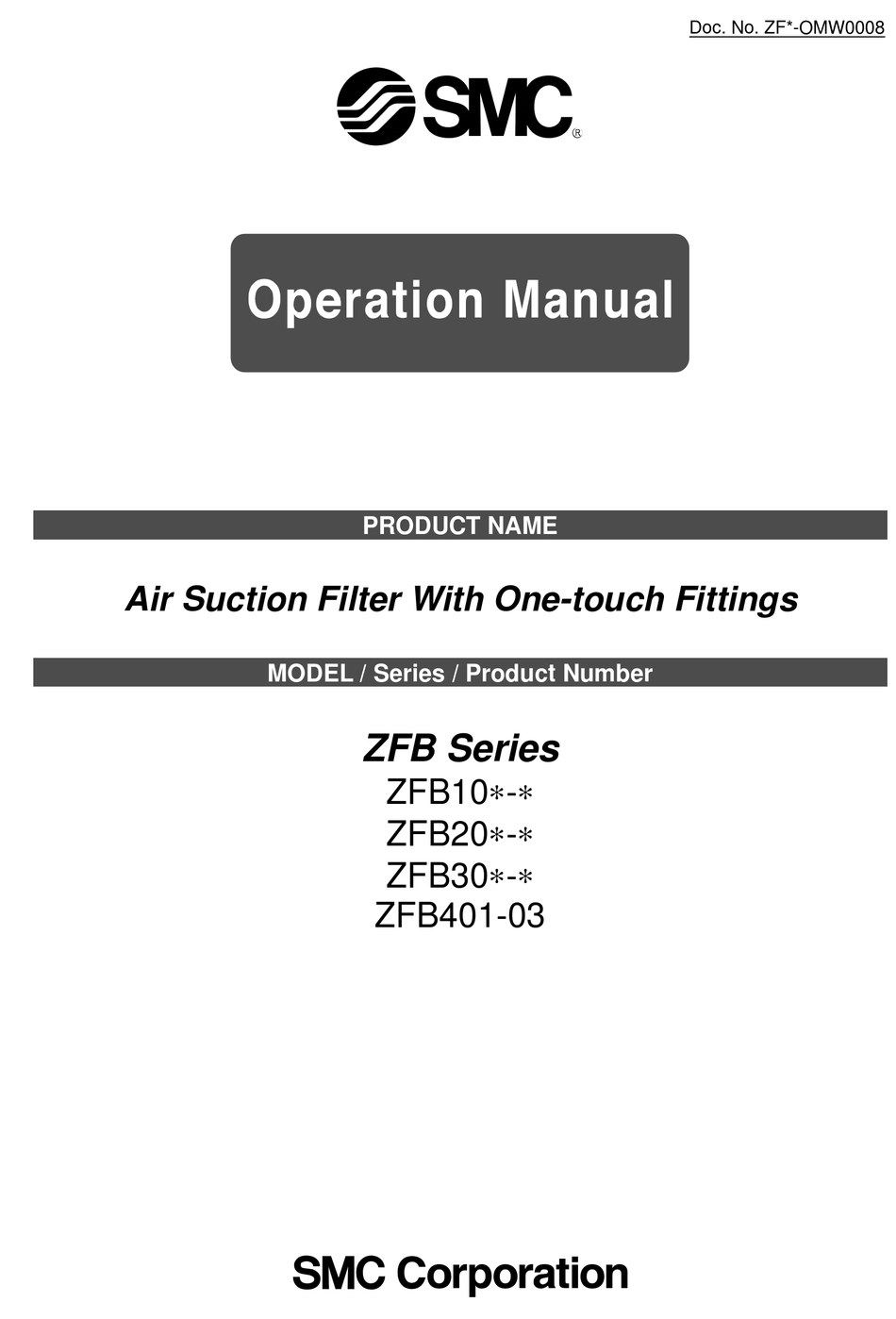

- Page 1 Doc. No. ZF*-OMW0008 PRODUCT NAME Air Suction Filter With One-touch Fittings MODEL / Series / Product Number ZFB Series ZFB10∗-∗ ZFB20∗-∗ ZFB30∗-∗ ZFB401-03...
-
Page 2: Table Of Contents
Contents Page Safety Instructions 2 to 3 ZFB Series Specific Product Precautions 1. Product components and functions 2. Specifications 6 to 7 3. Mounting 4. Element Replacement 8 to 9... - Page 3 Air Suction Filter With One-touch Fittings Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) ∗1) , and other safety regulations.
- Page 4 Air Suction Filter With One-touch Fittings Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Zfb Series Specific Product Precautions
ZFB Series ／ Specific Product Precautions Be sure to read this before handling the products. Refer to “Handling Precautions for SMC Products” (M-E03-3) for Safety Instructions Design Operating Environment Warning Warning 1. Do not use in an atmosphere where Confirm the specifications. - Page 6 ZFB Series ／ Specific Product Precautions Be sure to read this before handling the products. Refer to “Handling Precautions for SMC Products” (M-E03-3) for Safety Instructions Maintenance Warning 3. The performance of an ejector will deteriorate due to clogged suction filters and silencers.
-
Page 7: Product Components And Functions
1. Product components and functions Table 1. Product components and functions Description Material Note Body Transparent special Clear cover nylon Main body Brass Plug Electroless nickel plating Catches foreign matter. Element (Replace the element when it is clogged.) O-ring Seals the body. IN side tube can be mounted. -
Page 8: Specifications
2. Specifications 2-1 How to Order Metric size● (Release button: Light gray) ZFB ∗ 0 - ∗ Metric size ZFB ∗ 1 - ∗ Inch size Body type● Symbol Filtration area (mm 1037 1584 1980 Inch size● 3016 (Release button: Orange) Applicable tubing size●... - Page 9 2-2 Specifications Specifications Remarks Do not use the product in an atmosphere and place Note) Fluid Air, Nitrogen where there is direct contact with chemicals. It may cause damage to the body. Operating pressure range -100 to 0kPa Pressurised condition cannot be kept. Vacuum release pressure MAX.0.5MPa Do not use it in a line that is kept pressurized because...
-
Page 10: Mounting
3. Mounting 1) Piping - Flush the piping before connecting the piping - Confirm the IN and the OUT before piping. The product should not be used with the wrong connection. (IN and OUT direction should be identified by the mark indicated on the body.) Flow direction Note) Confirm that there is enough space for maintenance before installing and piping this product. - Page 11 < Element Replacement > 1. Stop the operation and reduce the internal pressure of the filter to atmospheric pressure. 2. Turn the transparent cover in counterclockwise direction and position the arrowhead of the collar in the transparent cover from the protruding in the “L” (LOCK) side to the protruding portion in the “O” (OPEN) side.
- Page 12 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2018 SMC Corporation All Rights Reserved -11-...
