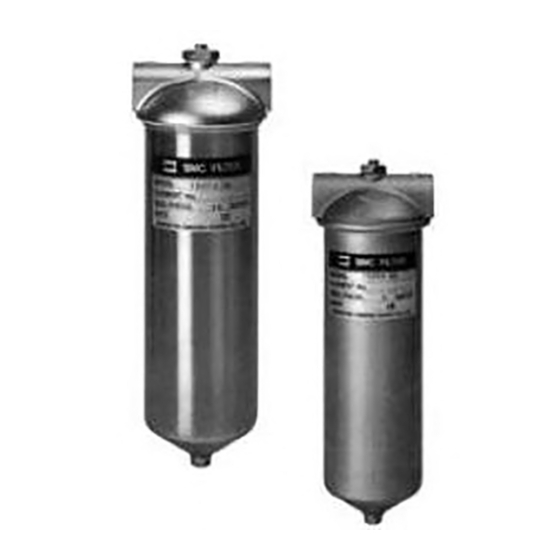

- Page 1 1/13 FGX-OM-L005-C Product Name Industrial Filter Model / Series / Product Number FGD series...
-
Page 2: Table Of Contents
2/13 FGX-OM-L005-C Contents ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3 Safety Instructions Parts Descriptions and Functions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・6 Product Specifications ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7 How to Order ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8 Dimensions ・・・・・・・・・・・・・・・・・・・・・・・・・ ・・・・・・・9 Installation and Piping Maintenance ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・9 Maintenance parts ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10... -
Page 3: Safety Instructions
3/13 FGX-OM-L005 L005-C Industrial Filter Industrial Filter Industrial Filter Industrial Filter Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions These safety instructions are intended to prevent These safety instructions are intended to prevent These safety instructions are intended to prevent These safety instructions are intended to prevent These safety instructions are intended to prevent These safety instructions are intended to prevent hazardous situations and/or equipment damage. - Page 4 4/13 FGX-OM-L005 L005-C Industrial Filter Industrial Filter Industrial Filter Industrial Filter Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions Caution Caution The product is provided for use in manufacturing The product is provided for use in manufacturing The product is provided for use in manufacturing The product is provided for use in manufacturing The product is provided for use in manufacturing The product is provided for use in manufacturing industries.
- Page 5 5/13 FGX-OM-L005-C FGD Series/Specific Product Precautions Be sure to read this before handling. These safety instructions are intended to prevent hazardous situations and/or equipment damage. Make sure to follow every instruction since they are for safety. ■Handling The product specified here may become unsafe if handled incorrectly.
- Page 6 6/13 FGX-OM-L005-C Caution ■Do not touch the filter or piping when hot fluid is used. - Using this product at high temperatures (40 to 80 C) may cause burns. - Do not touch the surface until it is cooled down to less than 40 ■Connect IN and OUT correctly.
-
Page 7: Parts Descriptions And Functions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・6
7/13 FGX-OM-L005-C 1. Parts Descriptions and Functions Table 1-1 Parts Descriptions and Functions Description Material Function Hexagon head Stainless steel or Plug to release air in the housing. bolt iron Seal Resin Stainless steel or Tightens the cover. iron Seal Resin Stainless steel or Cover... -
Page 8: Product Specifications ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・7
8/13 FGX-OM-L005-C 2. Product Specifications Table 2 Specifications Model FGDCA/B FGDEA/B FGDTA/B FGDFA/B Fluid Various kind of liquid (Industrial water, washing liquid, general solvent, etc.) Port size(Rc) 3/8、1/2、3/4 Max. operating Note1) pressure(MPa) Max. operating temperature( FGD∗A:1 Number of elements Note2) FGD∗B:2 FGD∗A:Φ65 to 70×250 Note3) -
Page 9: How To Order
9/13 FGX-OM-L005-C 3.How to order FGD C Note 1) Accessory Symbol Accessory Element seal material None ∗ Depends on the element type Bracket Nominal filtration accuracy(µm) Element length ∗ Depends on the element type Symbol Element length Element category Port size L250 ∗... -
Page 10: Dimensions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・8
10/13 FGX-OM-L005-C 4. Dimensions Note) Fix the filter with steel piping. Use the bracket to support the piping. (Flexible piping will not support the filter) -
Page 11: Installation And Piping
11/13 FGX-OM-L005-C 5. Installation and Piping [1] Installation 1) When installing, allow sufficient space for maintenance. Reserve a space of 50mm or more beneath the reservoir. 2) Start with a flow with an initial differential pressure across the element of 0.02MPa or less. If operation starts with differential pressure exceeding 0.02MPa, the element replacement will be shortened significantly. -
Page 12: Maintenance Parts ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10
12/13 FGX-OM-L005-C 5) Push the case from the bottom and tighten the nut from the top of the cover with tightening torque below. (Control the torque to avoid leakage) ∗Tightening torque control value: FGDT/F 25N・m, FGDC/E 15N・m [3] Restart the operation 1) After the replacement of the element, check the parts are assembled correctly before restarting operation. - Page 13 13/13 FGX-OM-L005-C Revision history Revision A:P6,Seal kits contentPacking and gaskets for 10pcs.→1pcs. Revision B: Complete revision 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
